Scheppach AirForce 7 Portable Air Compressor 8 Bar
Scheppach AirForce 7 Portable Air Compressor 8 Bar
No reviews
Regular price
£69.00
Regular price
Sale price
£69.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Compact, mobile air power engineered for effortless inflation and workshop tasks.

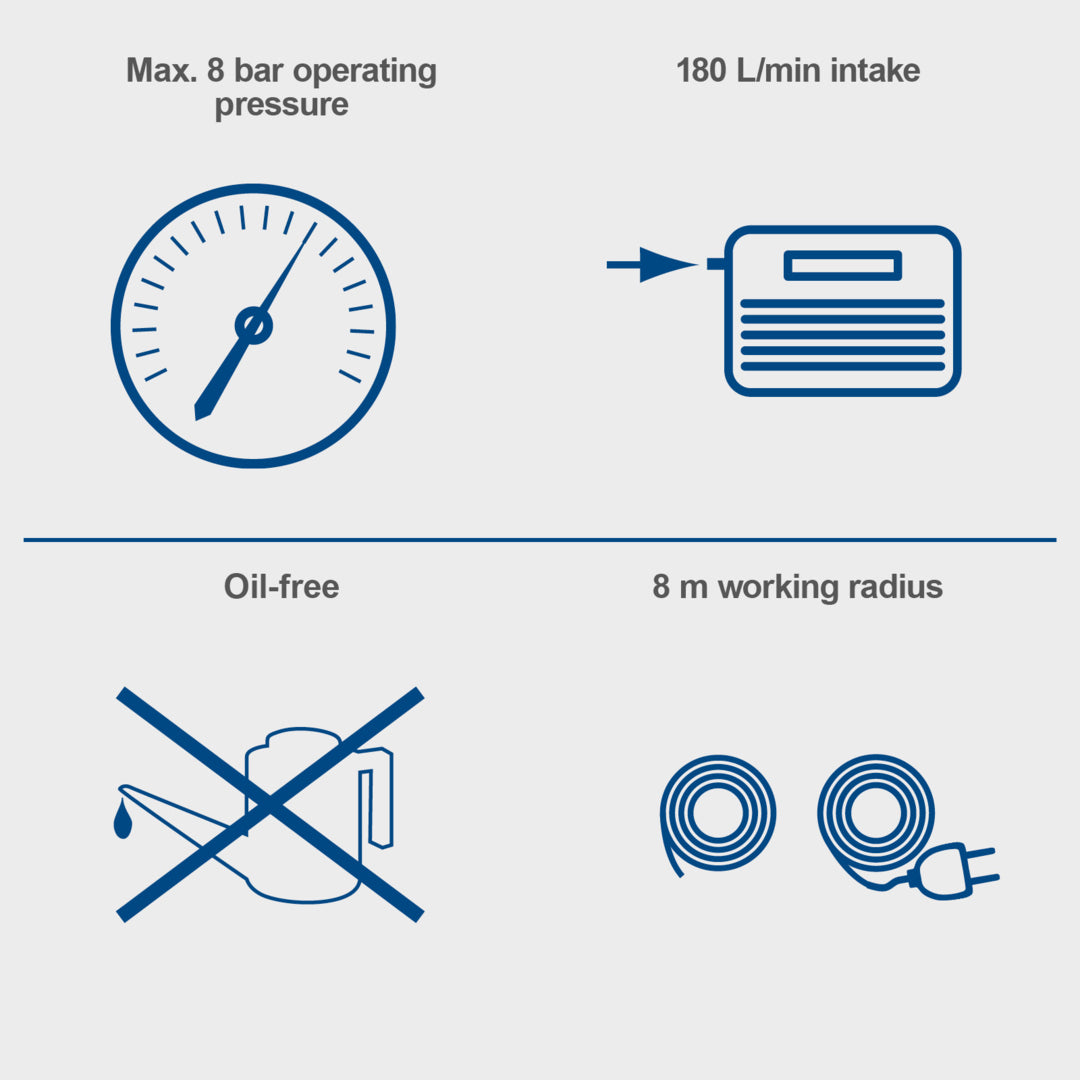

Combines an oil-free 1100W motor with an impressive 8 bar working pressure in a lightweight suitcase design. Features integrated tool storage and an extended 8-metre working radius for maximum convenience on the go.
Features:

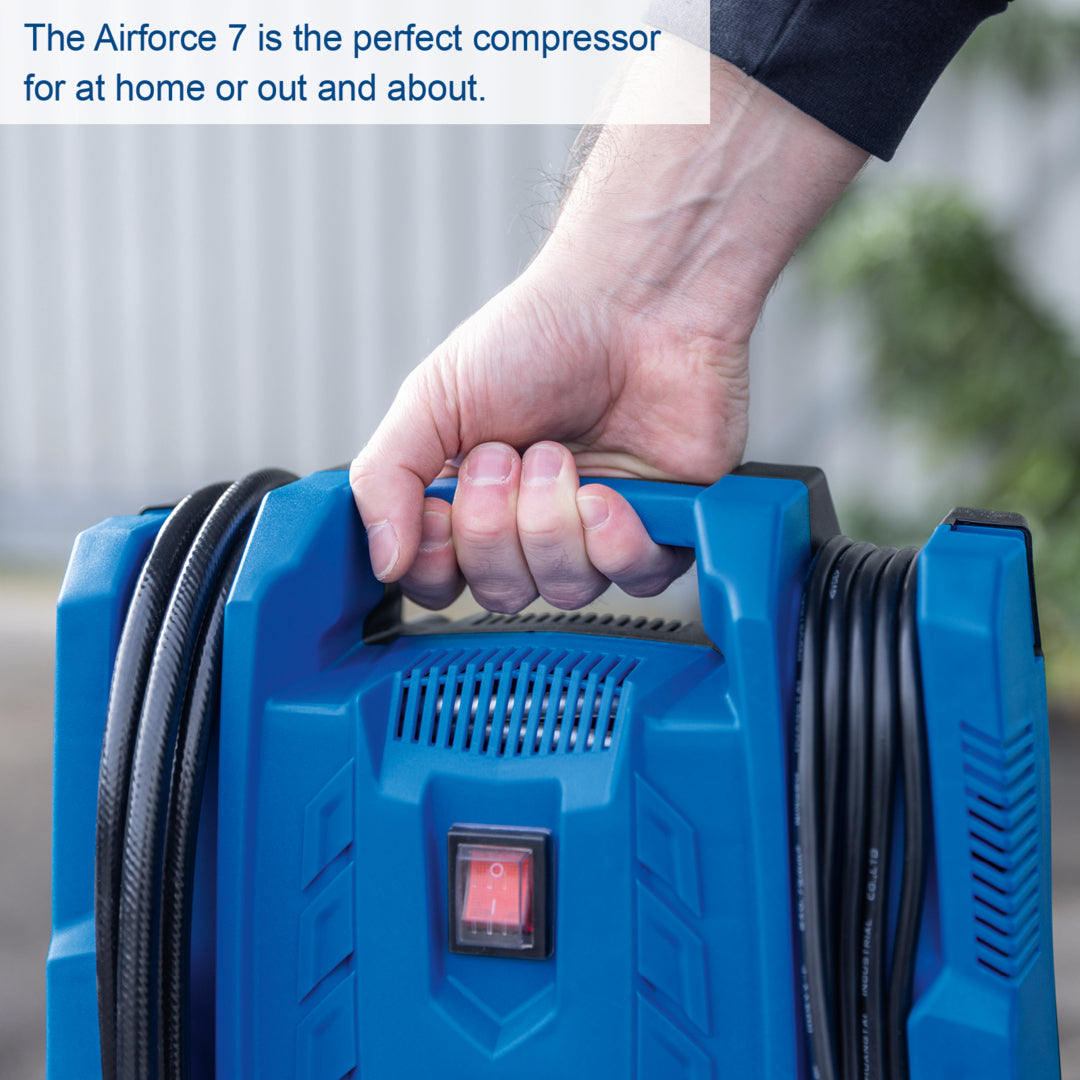

- Ultra-Portable Suitcase Format: Lightweight, compact frame with an integrated carry handle makes it easy to transport in your boot, store on workshop shelving, or take to the job site.
- High-Output Inflation Power: Driven by a robust 1100W motor generating up to 8 bar pressure and a 180 L/min suction capacity for rapid inflation of tyres, balls, and inflatable equipment.
- Zero Maintenance Oil-Free Pump: Engineered with an oil-free system that supplies clean compressed air while eliminating routine oil top-ups and servicing hassles.

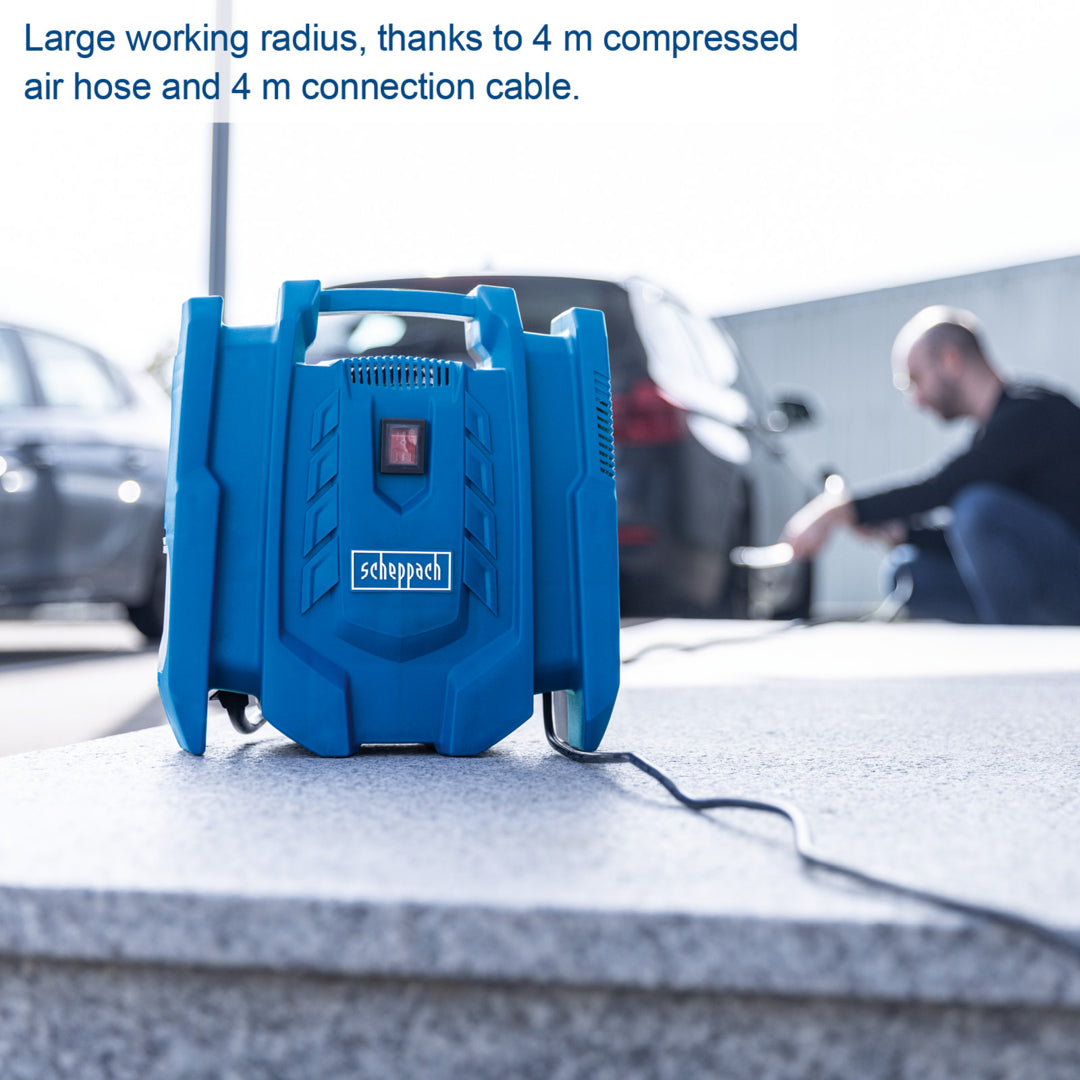

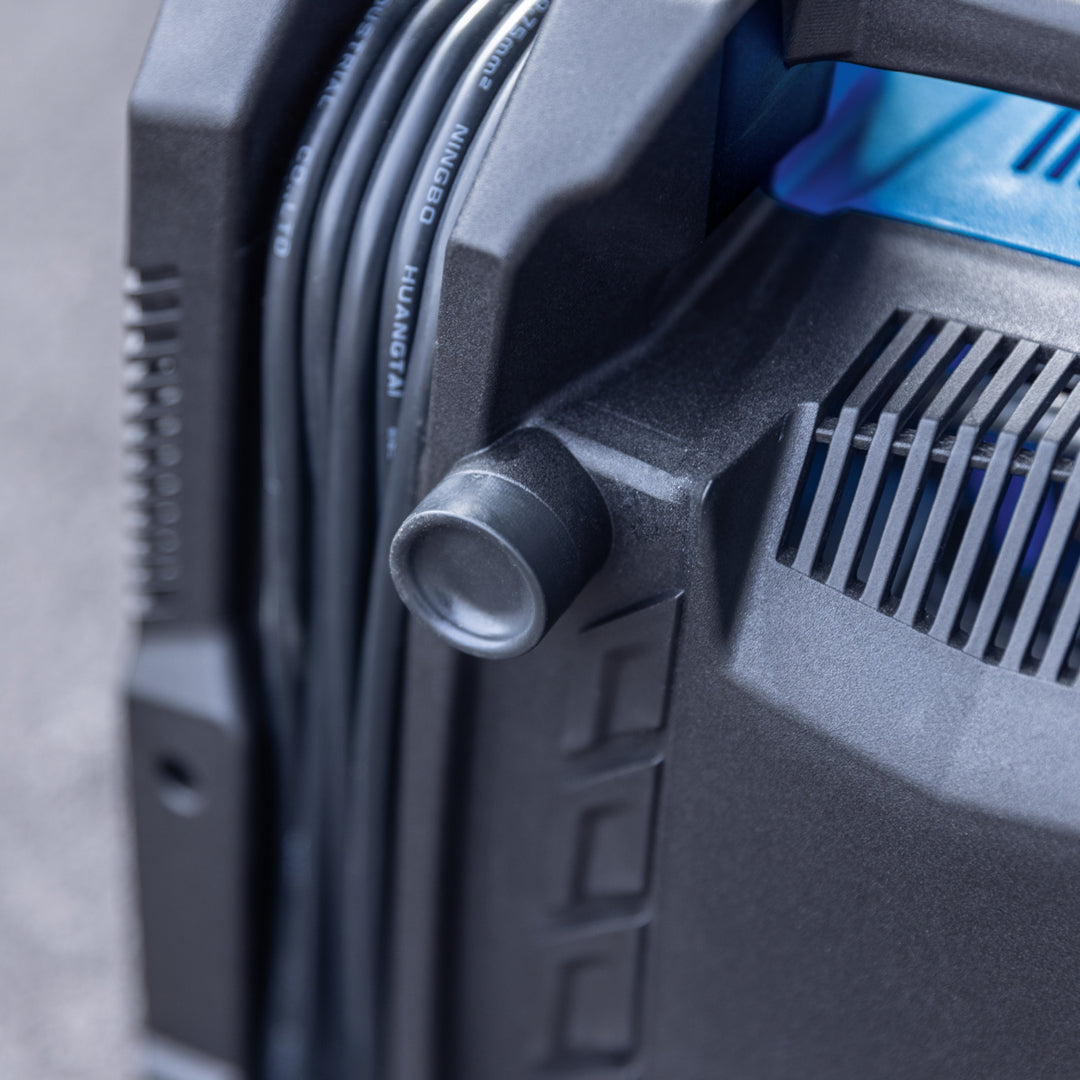

- Extended 8-Metre Total Reach: Features a 4-metre power cable alongside a 4-metre rubber air hose, allowing you to move freely around vehicles without constantly shifting the unit.

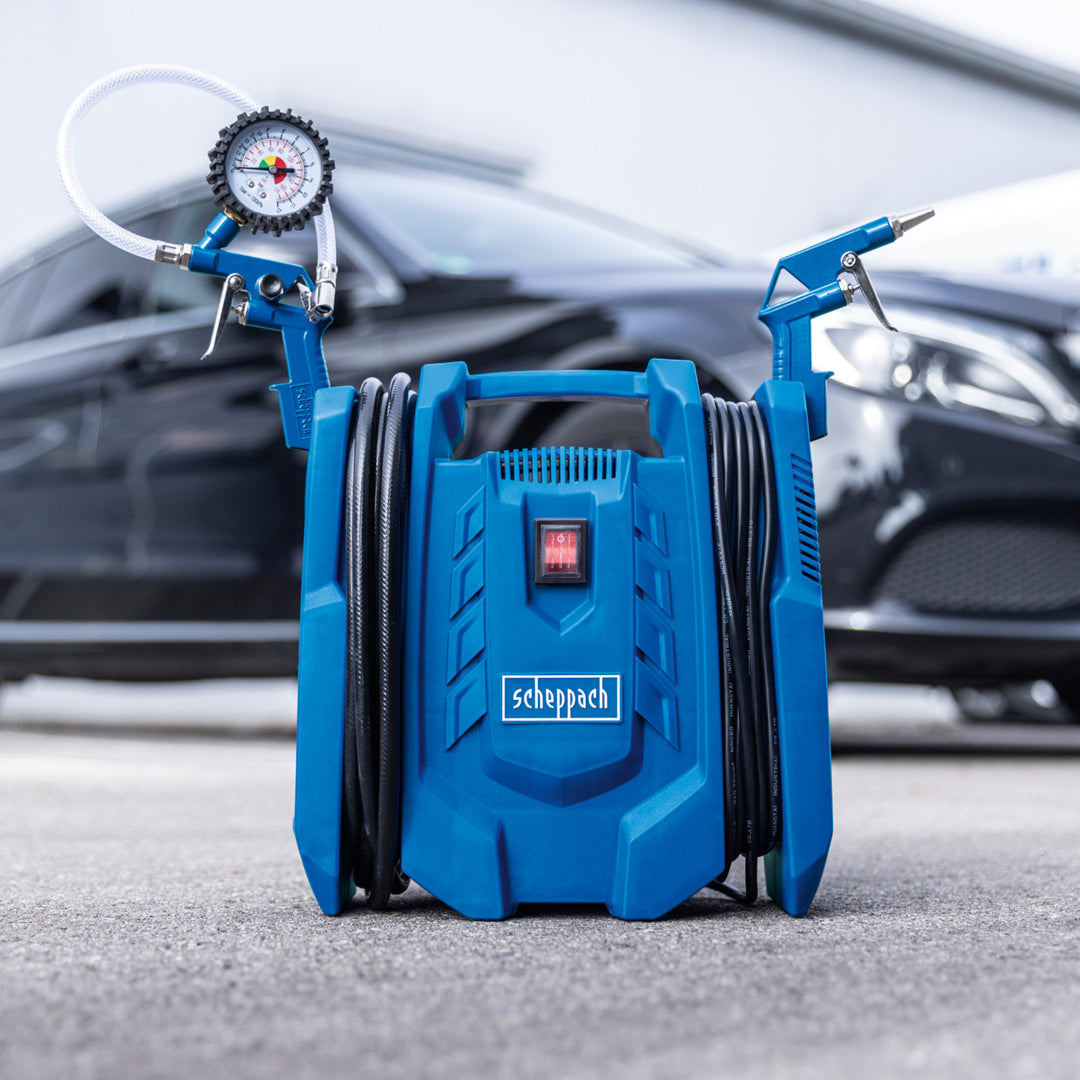

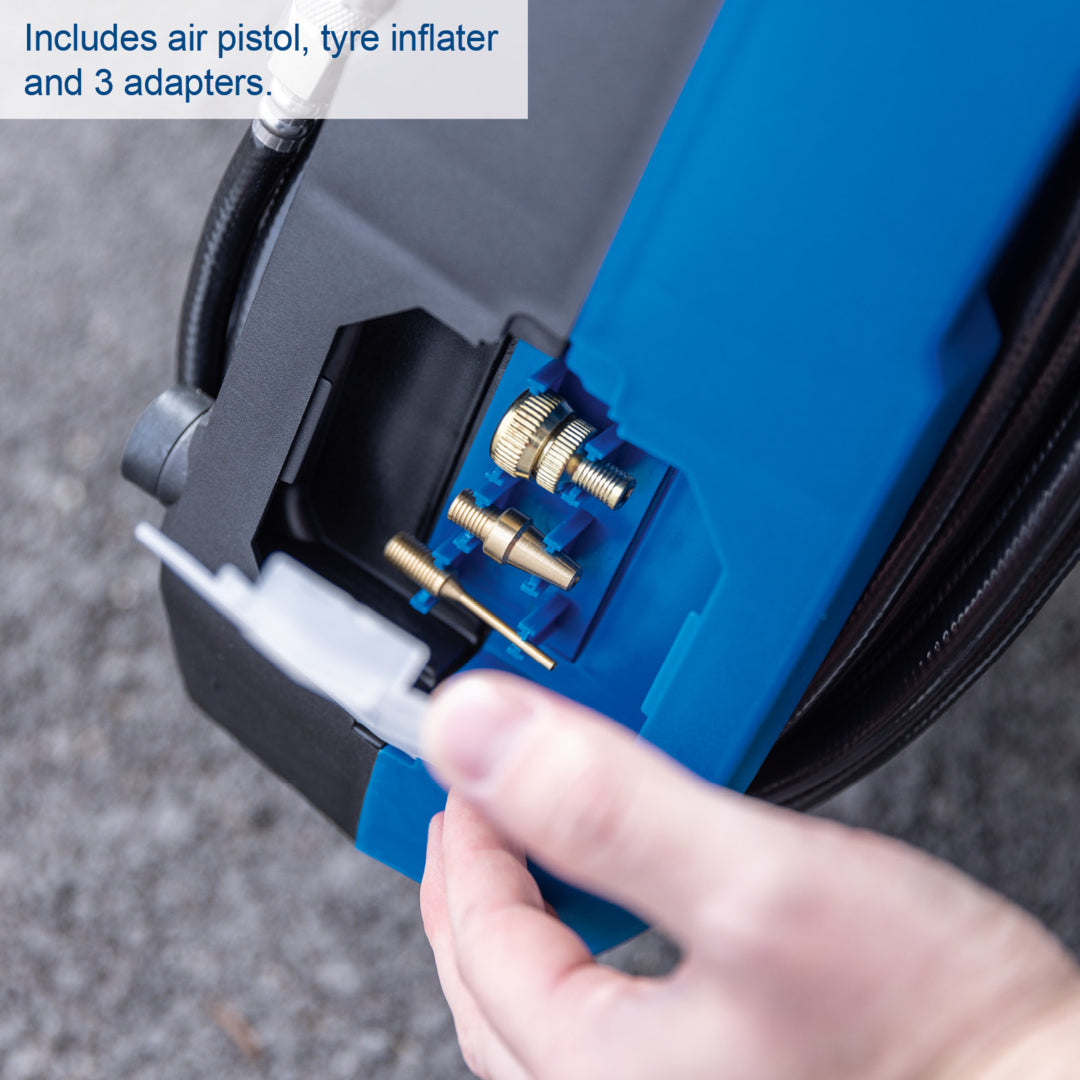

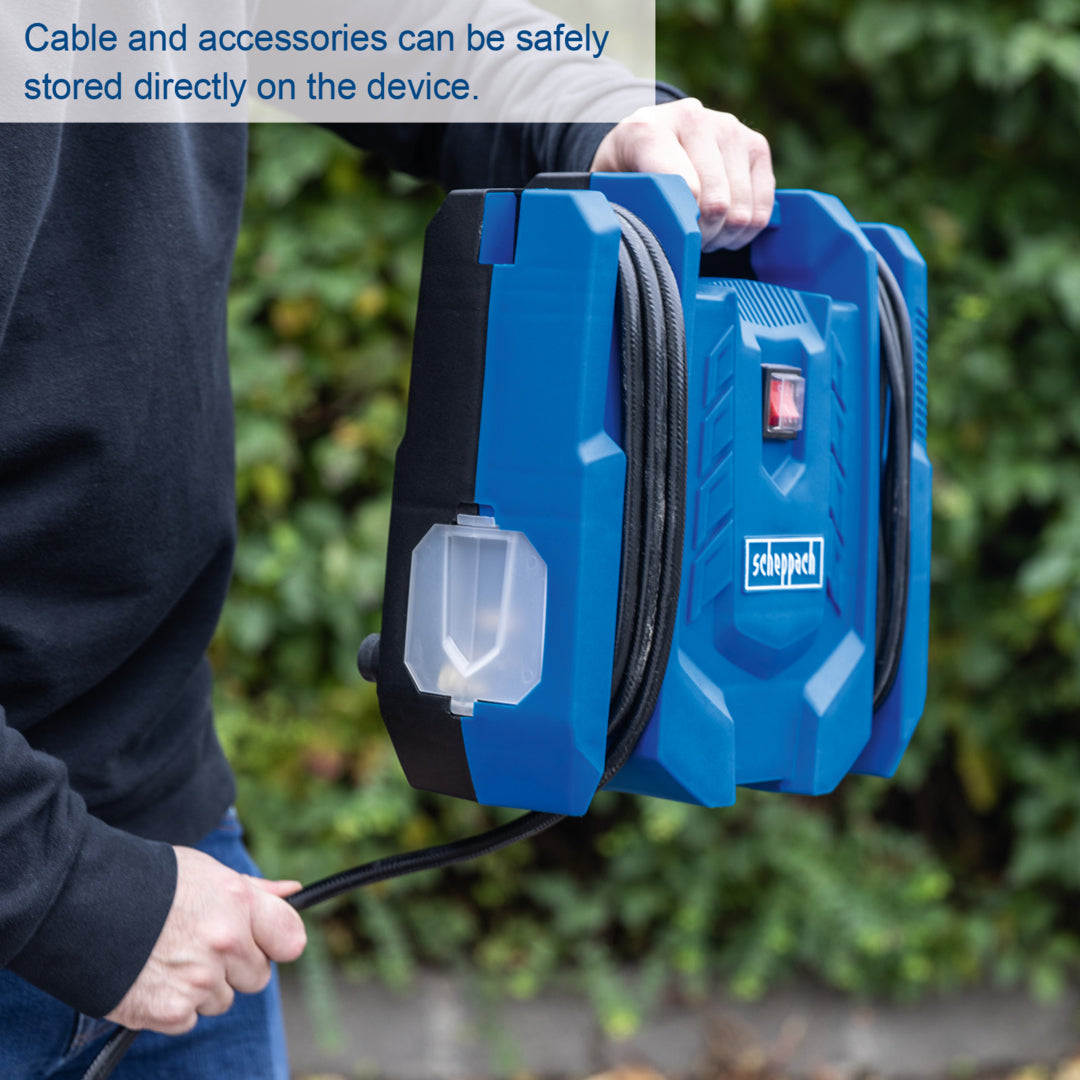

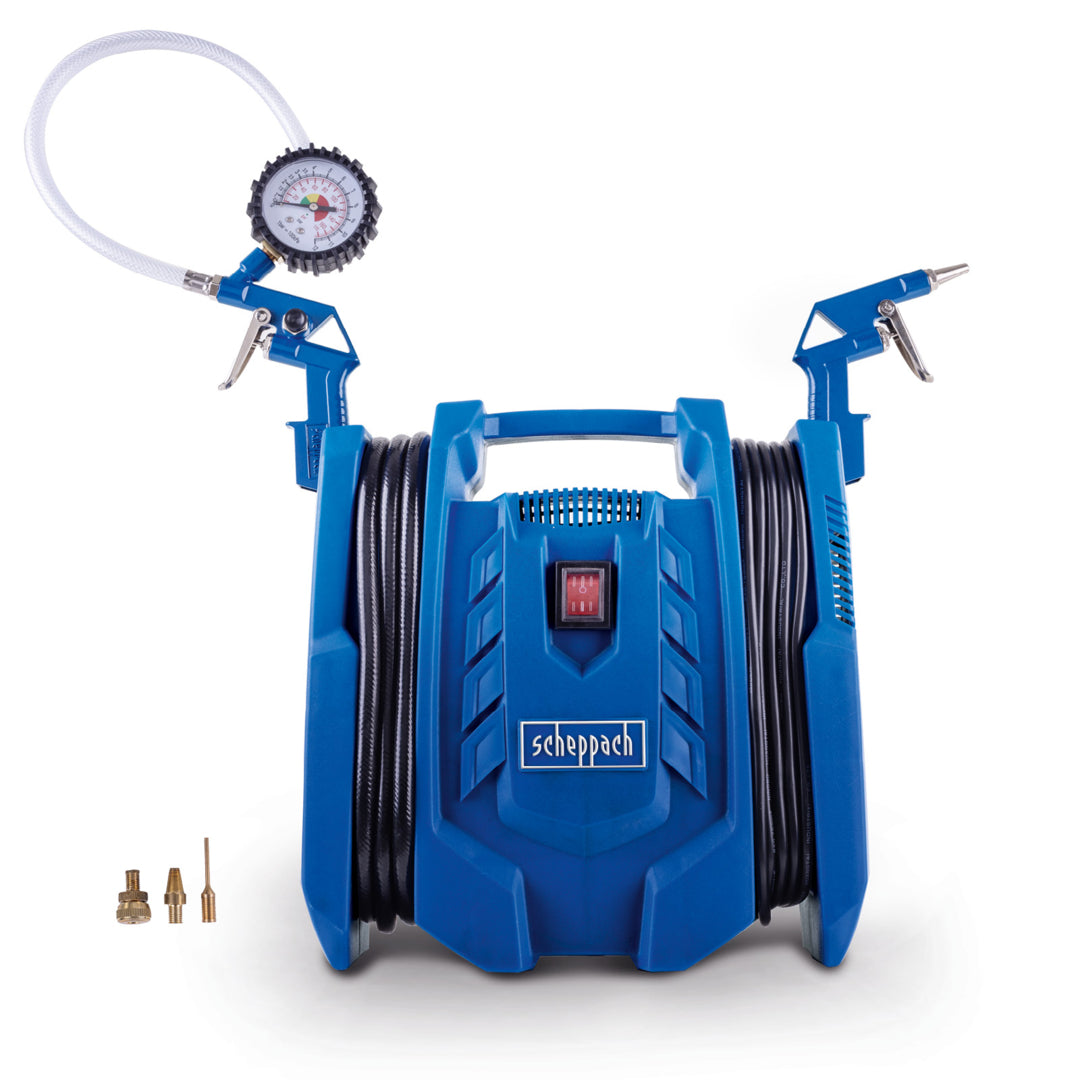

- Integrated Tool Storage & Kit: Built-in compartments keep all included accessories neatly stored on board, including an air blow gun, tyre inflator, and 3 multi-purpose nozzles.
Technical Specification
| General Details | |
|---|---|
| Title | Portable Compressor Airforce 7 Scheppach (DIY) |
| Article Number | 5906168901 |
| Model Description | Airforce 7 |
| Machine Group | Portable Compressor |
| EAN | 4046664243175 |
| Standard Basic Equipment | Tireinflator TG-7 Scheppach (Art.Nr. 7906101709) |
| Mass Gross | 6 kg |
| Mass Net | 5 kg |
| General Dimensions (L x W x H) | 310 mm x 160 mm x 320 mm |
| Motor & Power Performance | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Type of Motor | Universal |
| Voltage | 220-240 V |
| Frequency | 50 Hz |
| Continuous Power Consumption S1 | 1100 W |
| Power Consumption in Operating Mode 1 | 1100 W |
| Maximum Engine Speed | 3750 1/min |
| Appliance Class | Class II |
| Insulation Class | F (max. motor temp. 155°C) |
| Protection Class Electro / Degree of Protection | IP 30 |
| Motor Protection | Yes |
| Motor Brake Type | None |
| Cable Length | 4000 mm |
| Plug Type | Stecker-Typ C Eurostecker |
| Compressor Performance & Air Flow | |
| Working Pressure Bar Max | 8 bar |
| Air Intake Capacity | 180 l/min |
| Air Flow Rate at 1 bar | 95 l/min |
| Air Flow Rate at 2 bar | 84 l/min |
| Air Flow Rate at 3 bar | 73 l/min |
| Air Flow Rate at 4 bar | 66 l/min |
| Air Flow Rate at 5 bar | 57 l/min |
| Air Flow Rate at 6 bar | 45 l/min |
| Air Flow Rate at 7 bar | 43 l/min |
| Build & Hardware Components | |
| Drive Type | Belt |
| Cylinders Count | 1 |
| Air Filter Material | Plastic |
| Pressure Pipe Material | Rubber |
| Quick Couplers Count | 1 |
| Quick Coupler Material | Nickel Plated Brass |
| Sound & Emissions | |
| Guaranteed Sound Power Level Lw(A) | 97 dB |
| Sound Power Level Lw(A) | 94.9 dB |
| Uncertainty KwA | 3 dB |
