Scheppach AB1600 Demolition Hammer 1600W

Scheppach AB1600 Demolition Hammer 1600W

Online Exlusive
Regular price £159.00
Regular price Sale price £159.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Free standard delivery on this item

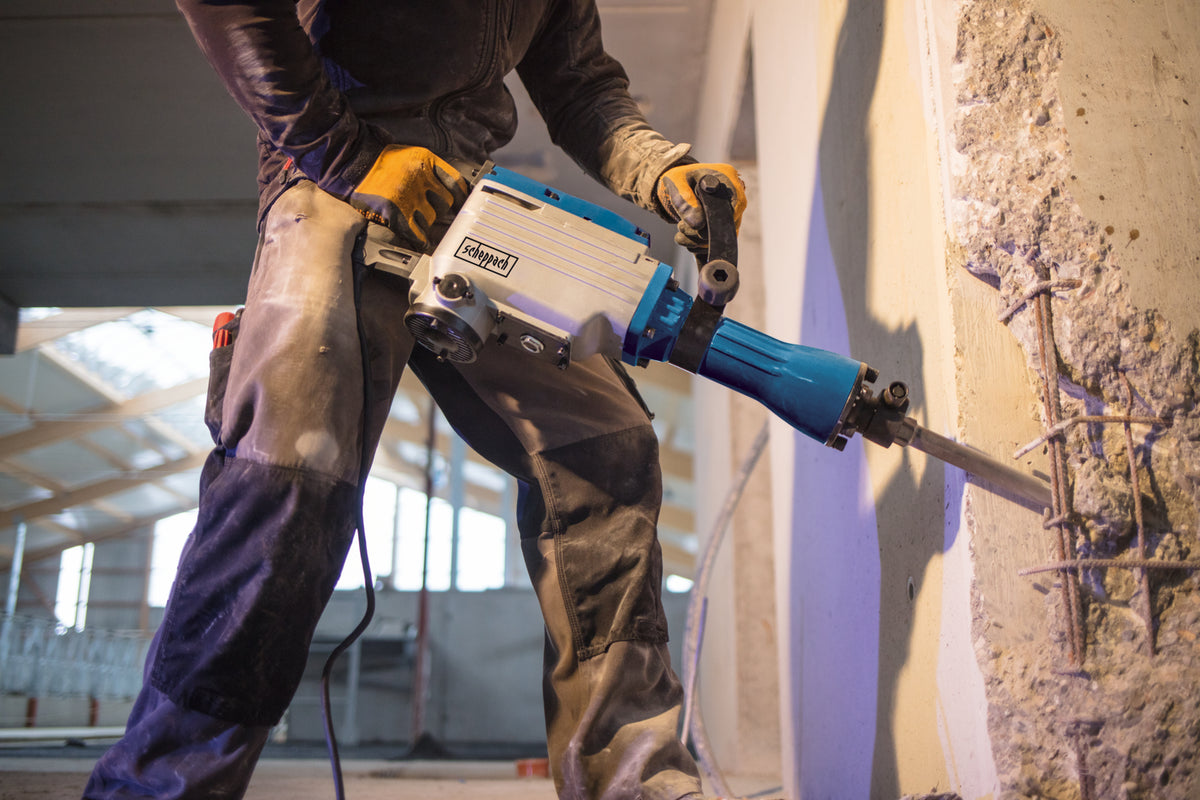

Heavy-duty concrete breaking power built for demanding site and home projects.

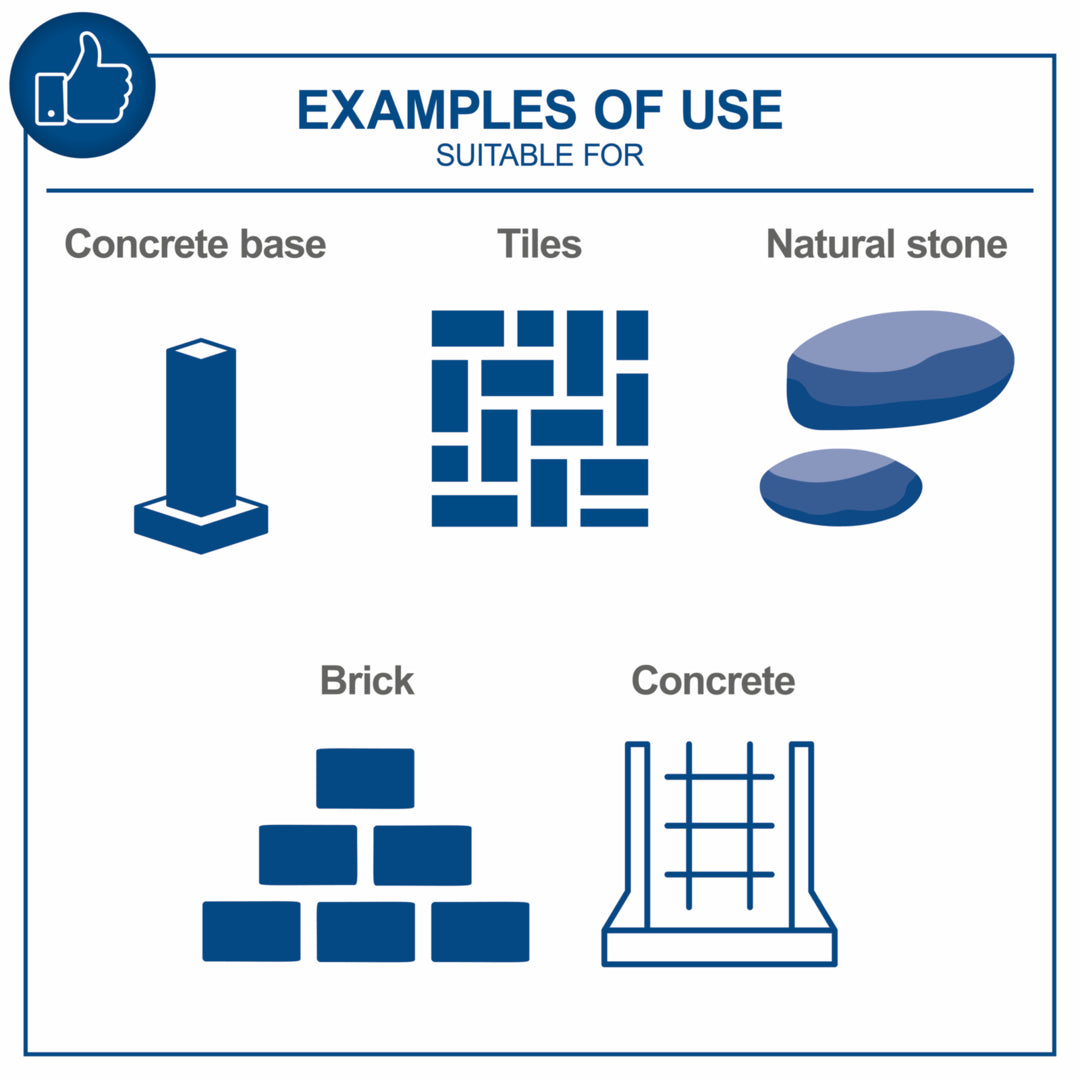

Delivers 50 joules of impact energy to tear through masonry, foundations, and floor tiles with ease. Features anti-vibration soft-grip handles to reduce fatigue during extended demolition work.

Features:

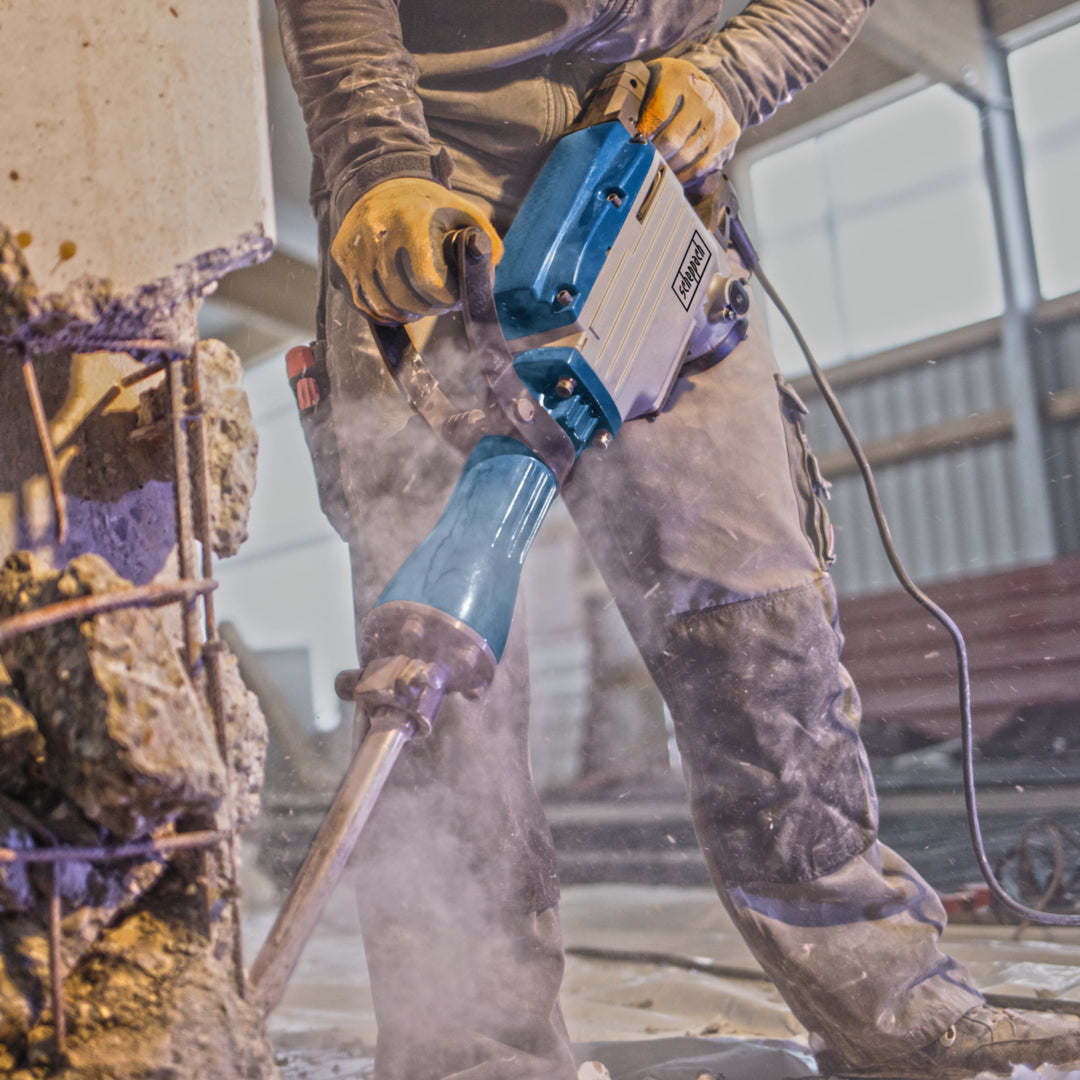

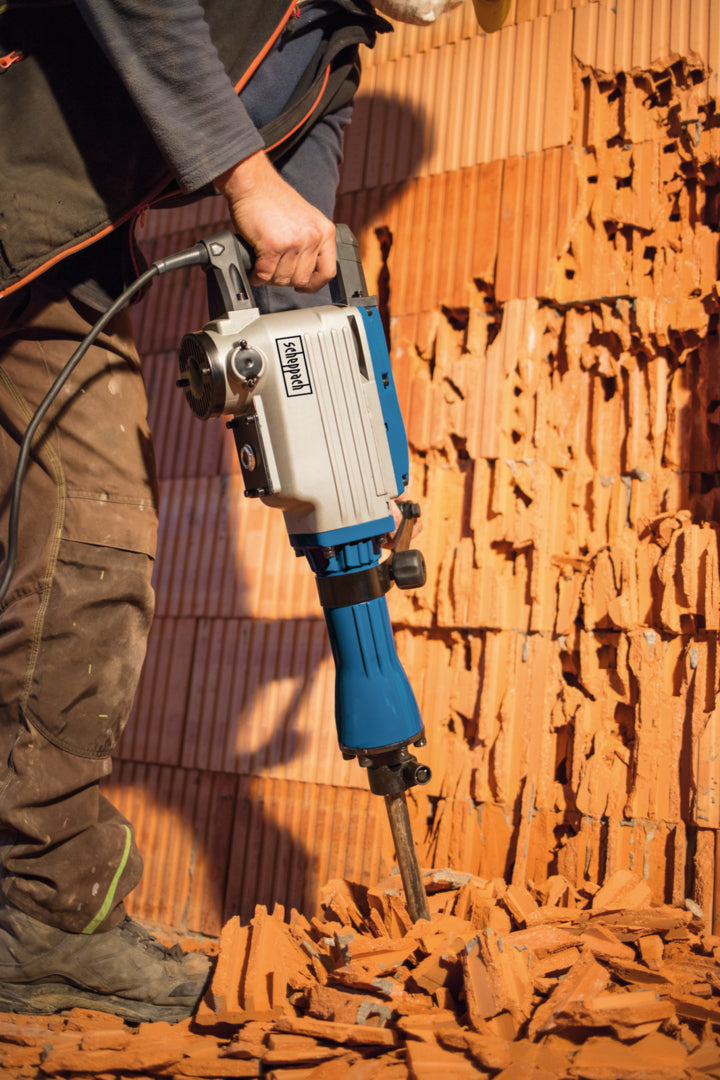

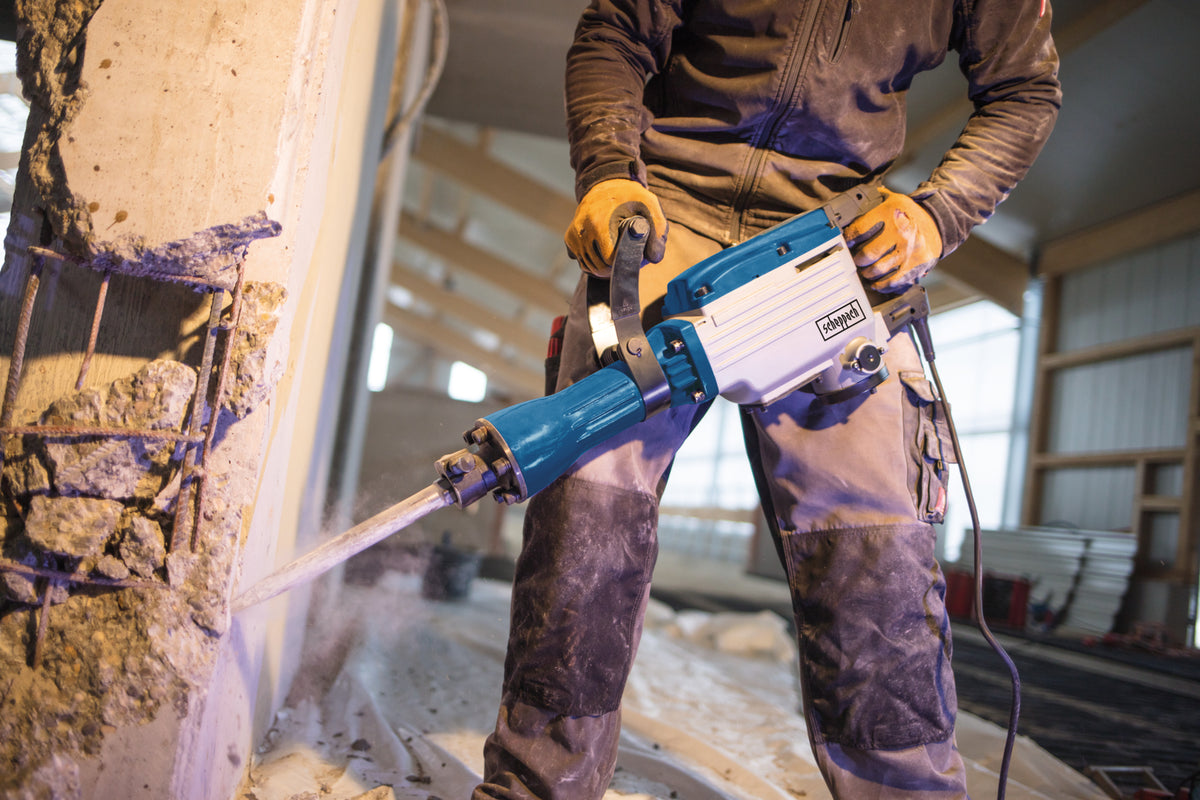

  • High-Impact Demolition Power: The robust 1600W motor generates 50 joules of impact force at 2,000 blows per minute, making light work of dense concrete, rock, and tough brickwork.
  • Effective 16kg Operating Weight: The substantial tool weight works to your advantage by adding downward momentum, allowing the chisel to penetrate hard surfaces with less manual effort.
  • Quick Tool-Free Bit Changes: Fitted with a heavy-duty 30mm Hex SDS chuck, allowing you to swap between pointed and flat chisels rapidly without extra tools.

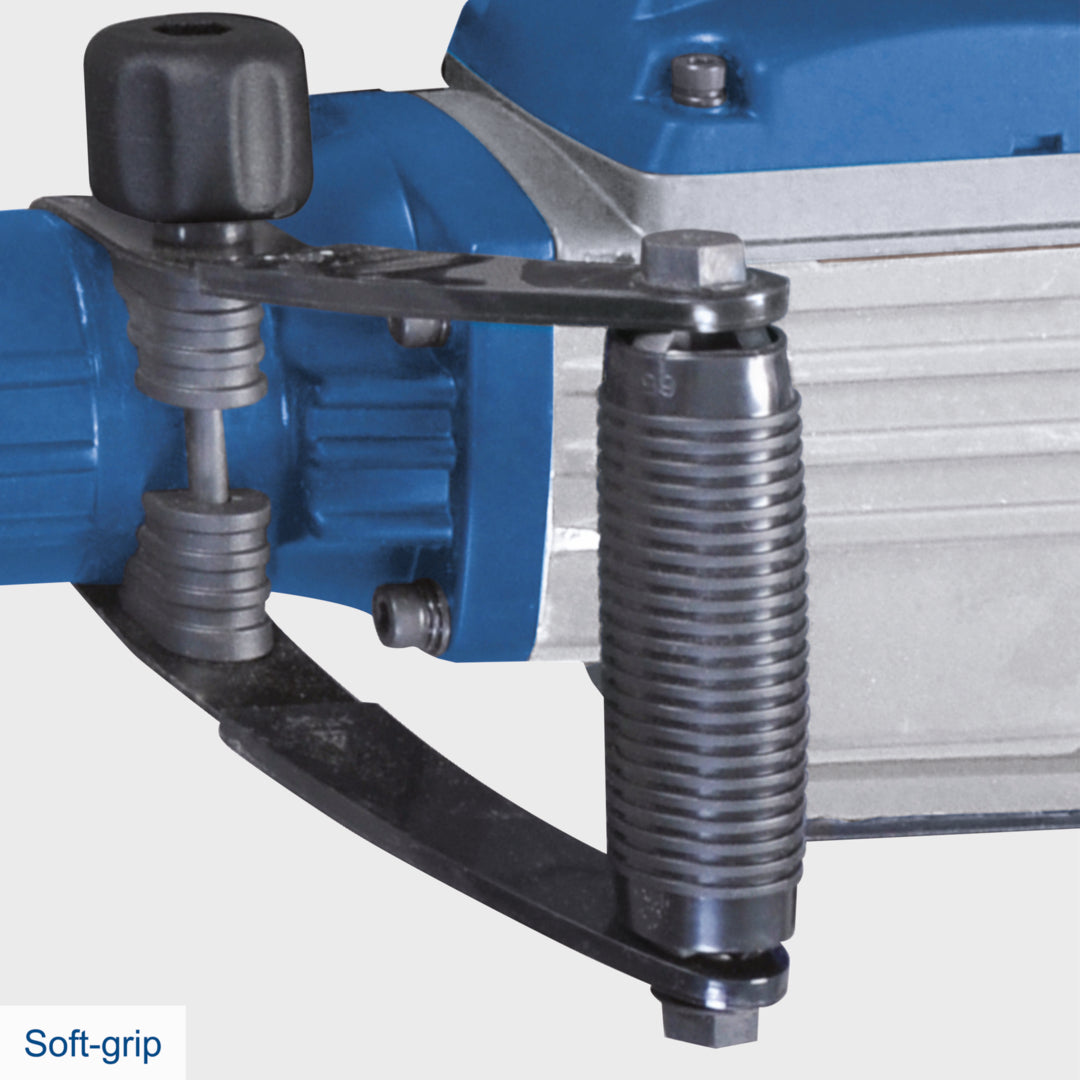

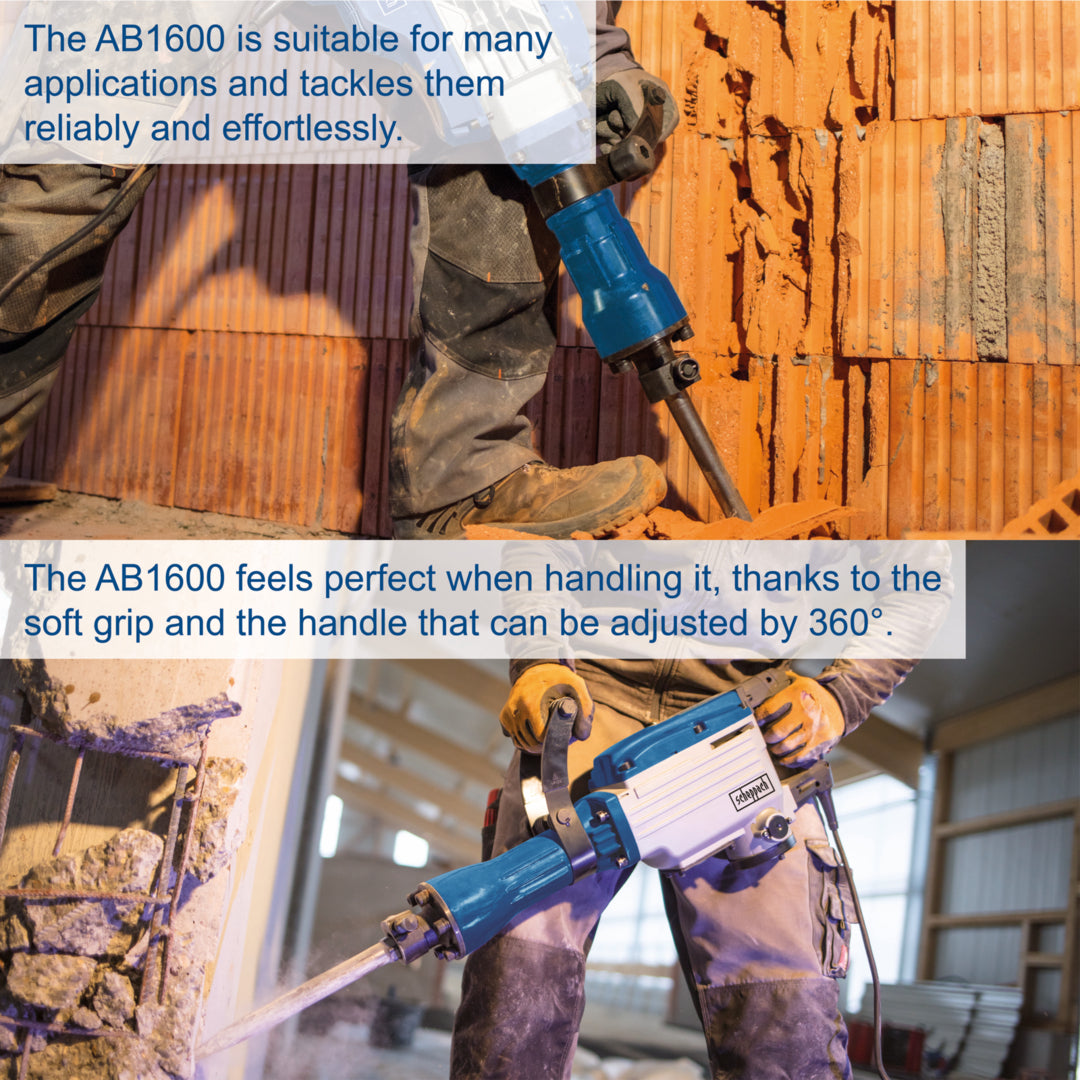

  • Comfort and Control: Features an integrated anti-vibration system, an adjustable front auxiliary handle, and a rear D-handle that provides a firm grip when pulling the chisel free from rubble.

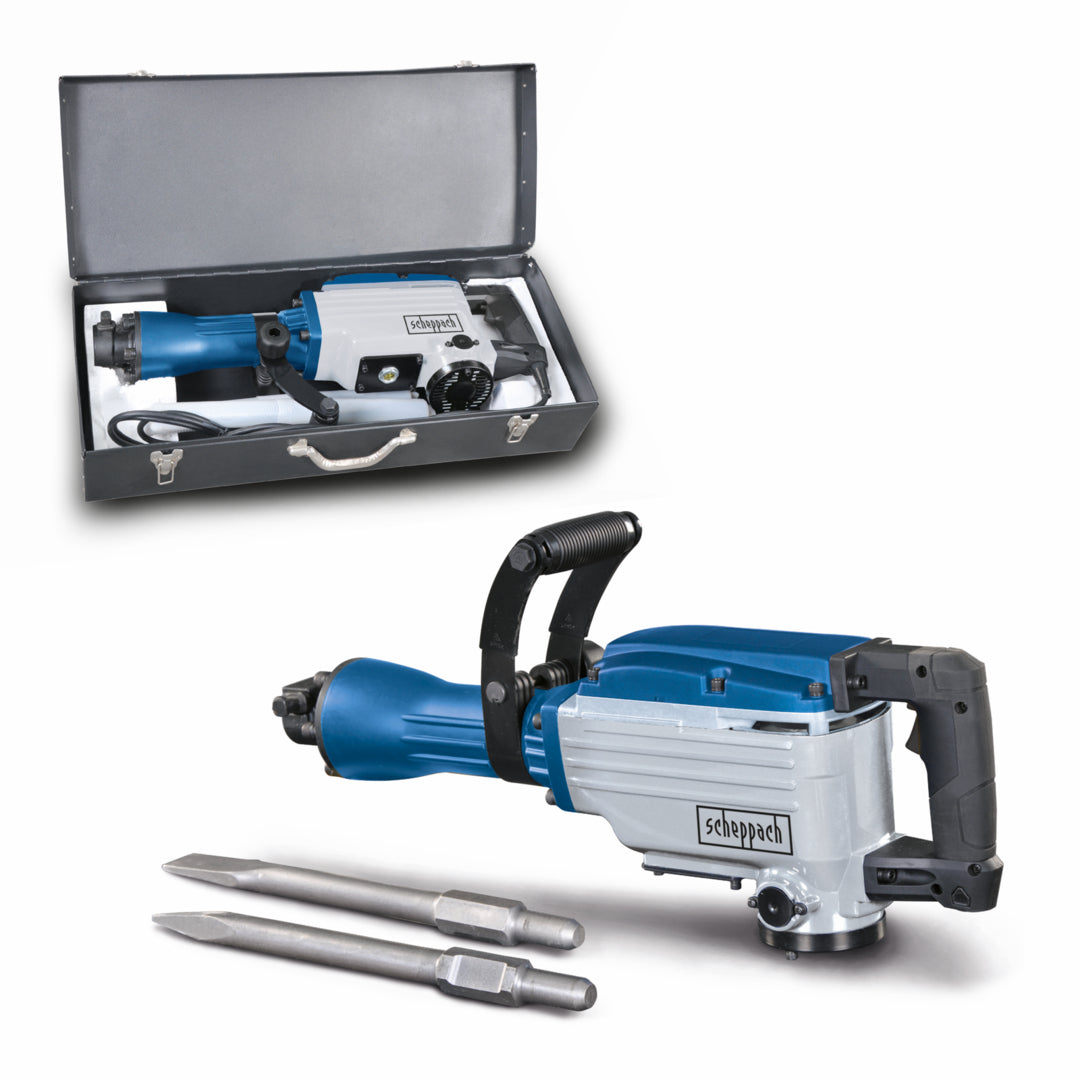

  • Complete Site Ready Kit: Supplied with both a 390mm pointed chisel and a 390mm flat chisel, all housed in a rugged metal storage case for secure transport.

Technical Specification

General Details
Title Electric Demolition Hammer AB1600 Scheppach (DIY)
Article Number 5908201901
Model Description AB1600
Machine Group Electric Demolition Hammer
EAN 4046664020264
Mass Gross 21.01 kg
Mass Net 13.54 kg
General Dimensions (L x W x H) 650.0 mm x 140.0 mm x 260.0 mm
Motor & Power Performance
General Drive Type Electro
Subgrouping Drive Type 230V
Type of Motor Brush Motor
Voltage 230 V
Frequency 50 Hz
Nominal Current 6.9 A
Continuous Power Consumption S1 1600.0 W
Power Consumption in Operating Mode 1 1600.0 W
Maximum Engine Speed 2000.0 1/min
Efficiency 58.0 %
Battery Included No
Appliance Class Class II
Protection Class Electro / Degree of Protection IP 20
Motor Protection Yes
Motor Brake Type None
Cable Length 3000.0 mm
Motor Cable Inlet No
Phase Changing Switch 400 V in Plug New No
Switch with No Voltage Release New No
Demolition & Chisel Specifications
Impact Force 50.0 J
Impact Rating 2000.0 1/min
Chisel Length 390.0 mm
Shaft Chisel Diameter 30.0 mm
Chisel Collet SDS Hexagonal
Chisel Material 40CR
Grease Type SAE15W40
Oil for Greasing Quantity 30.0 ml
Sound & Vibration Emissions
Guaranteed Sound Power Level Lw(A) 105.0 dB
Measured Sound Power Level Lw(A) 104.06 dB
Sound Power Level Lw(A) 105.0 dB
Sound Pressure Level Lp(A) 98.6 dB
Uncertainty KpA 0.7 dB
Uncertainty KwA 0.7 dB
Vibration Emission Value Left Hand 14.5 m/sec²
Vibration Emission Value Right Hand 18.2 m/sec²
Uncertainty k 1.5 m/sec²
Delivery Content
Delivery Content Text 1x Demolition Hammer, 1x Transport box, 1x Point-chisel ø 30 L390, 1x Flat-chisel ø 30 L390, 1x Oil can, 1x Maintenance-tool, 1x Replacement-Motor/Carbon, 2x brush, 1x Instruction manual

SKU: D-SCH-5908201901

MPN: 5908201901

ID: D-SCH-5908201901
