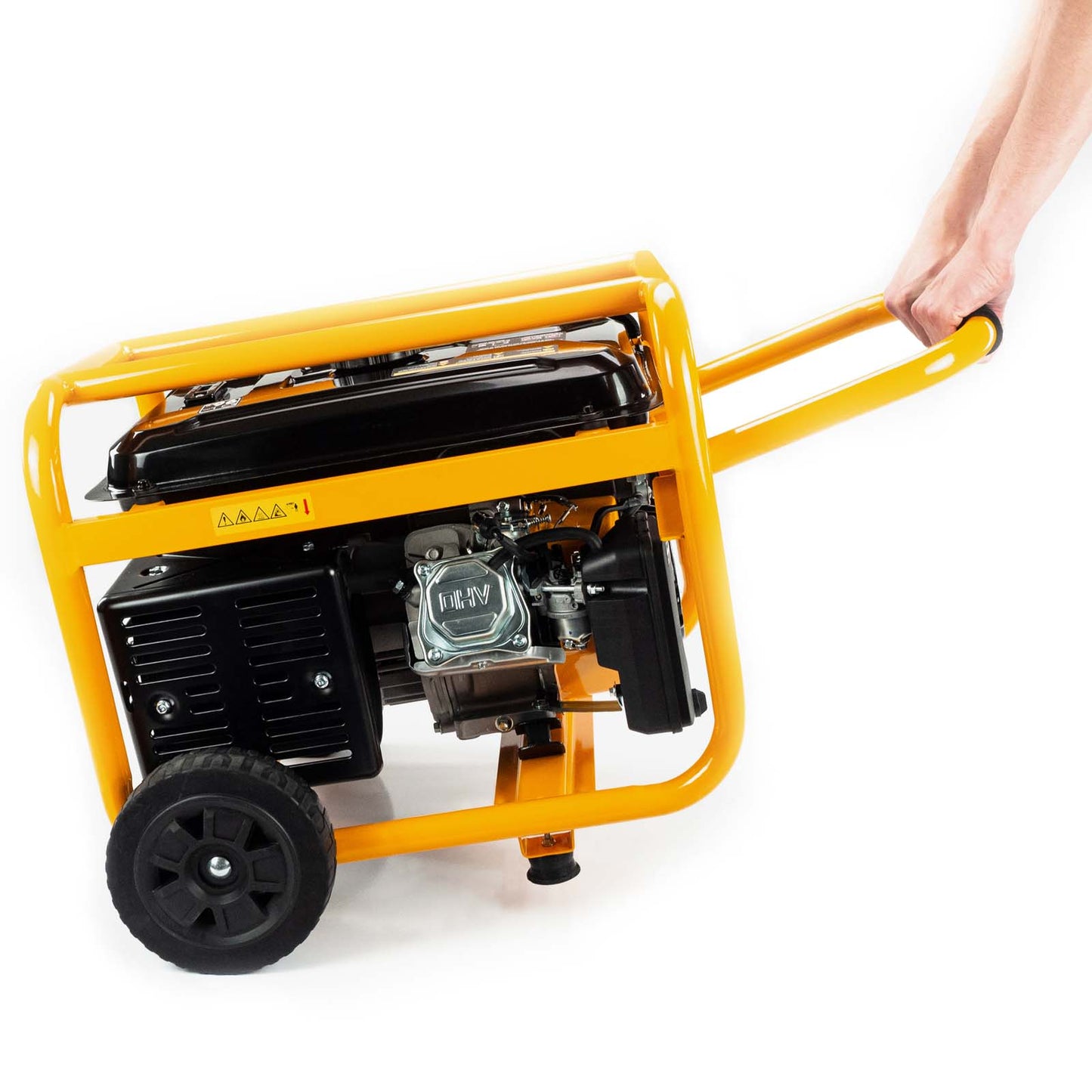

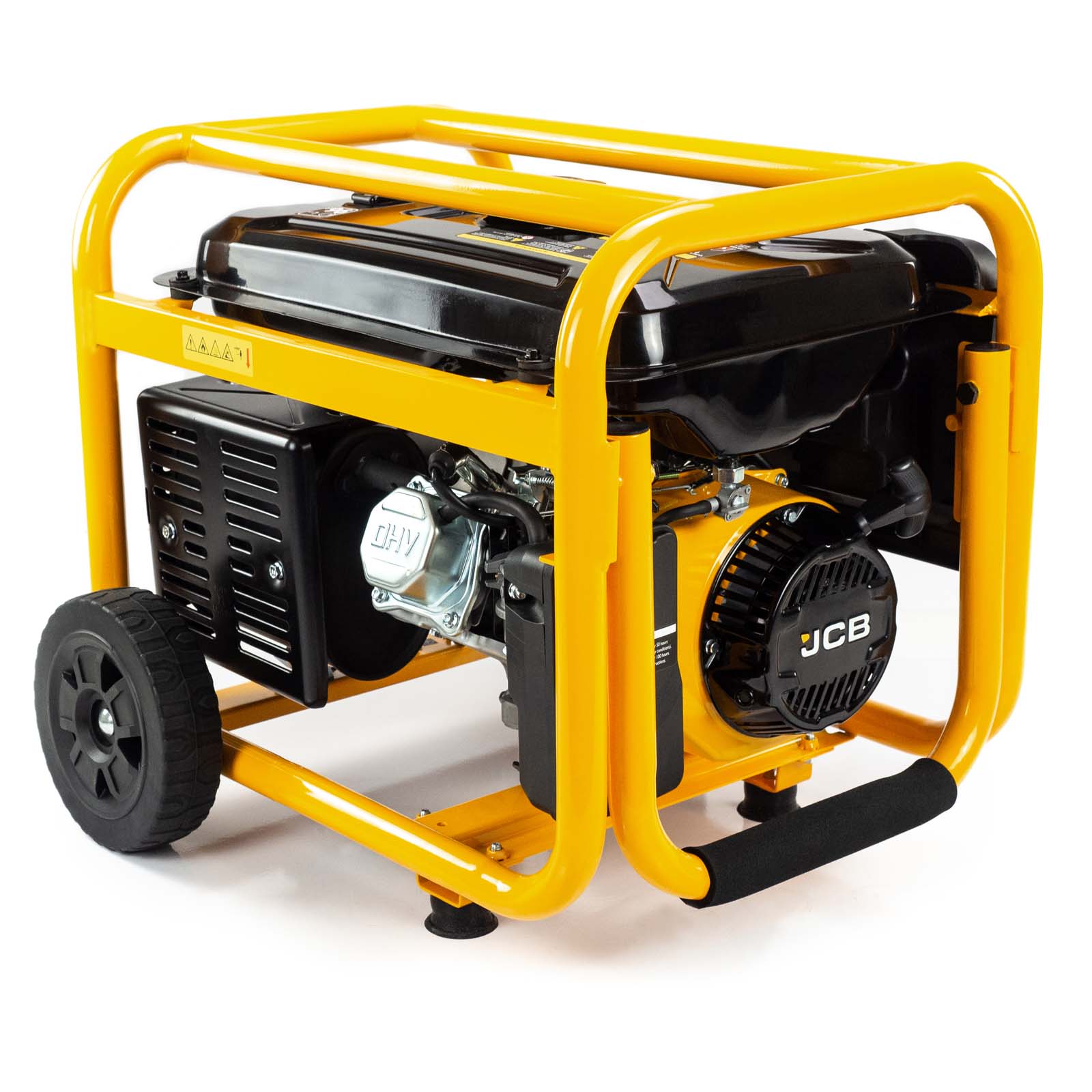

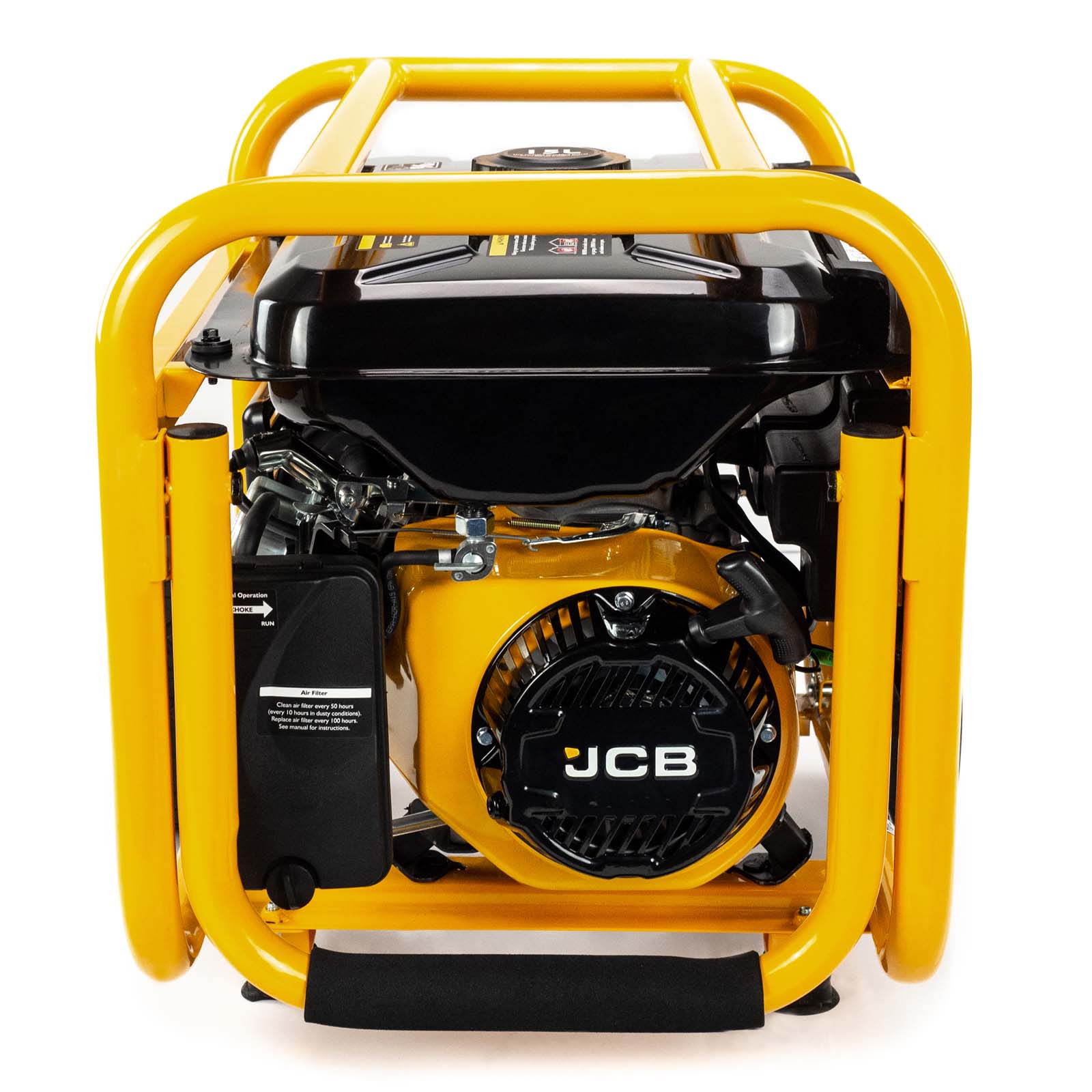

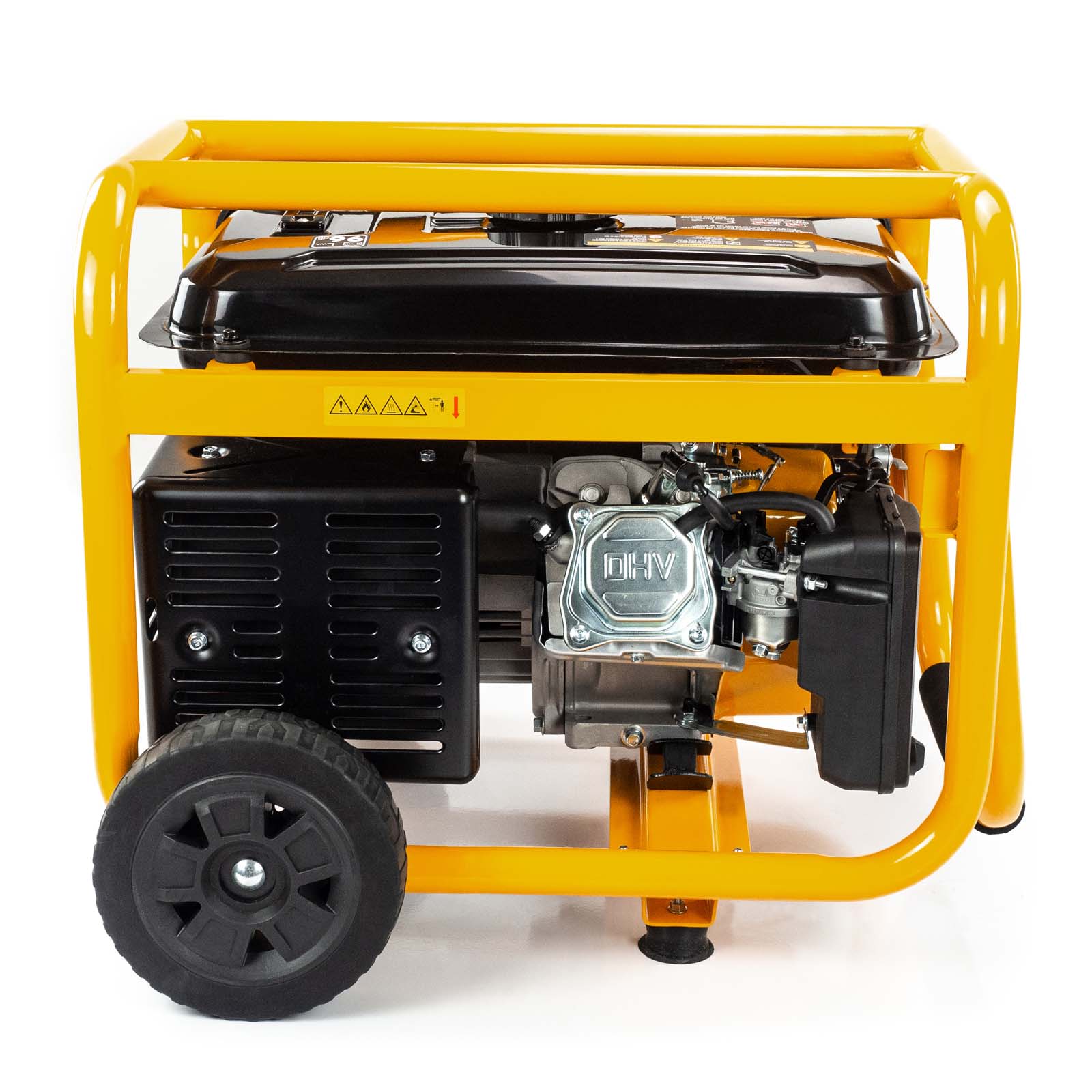

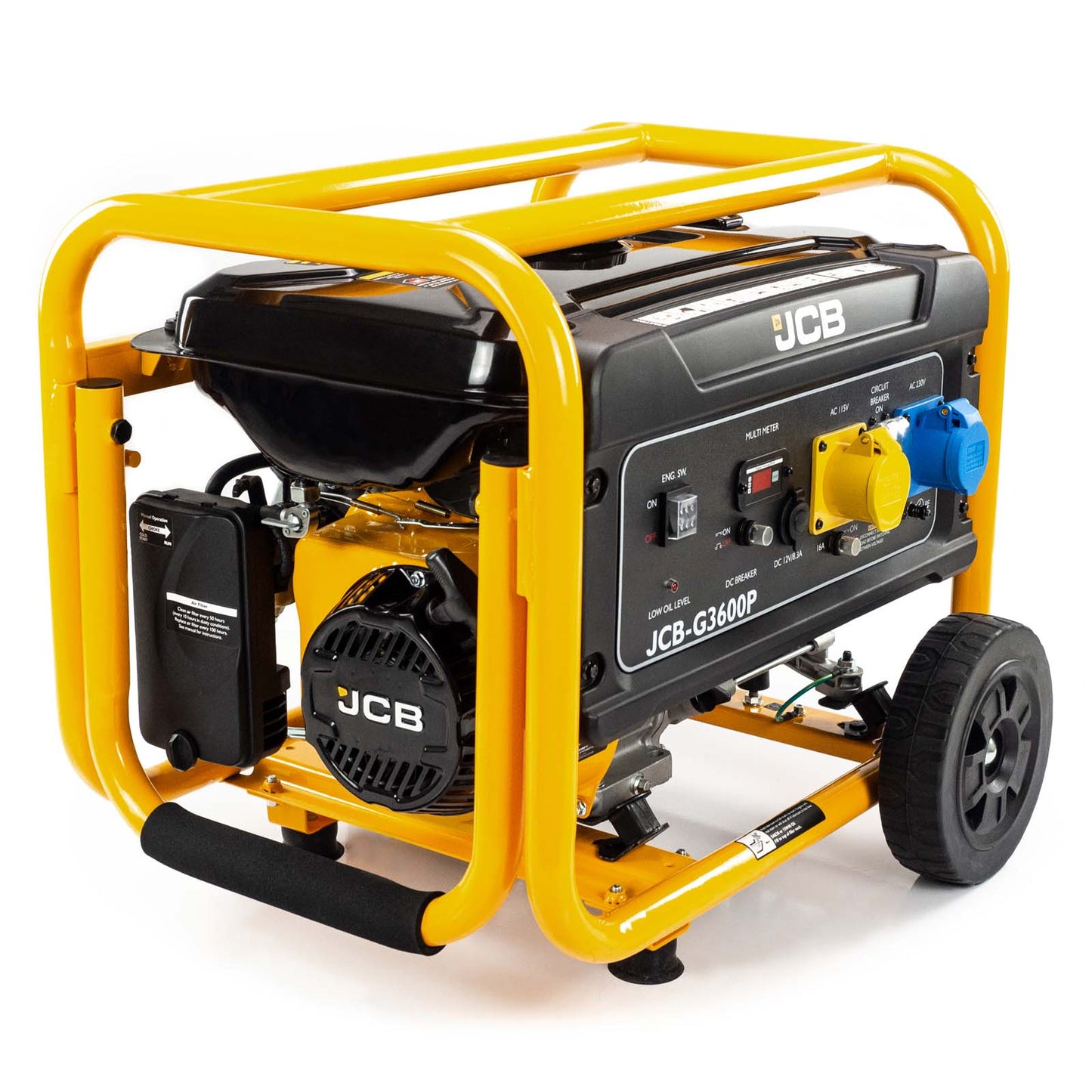

JCB 3.6kW Petrol Site Generator 115V/230V 224cc JCB-G3600P

JCB 3.6kW Petrol Site Generator 115V/230V 224cc JCB-G3600P

Online Exlusive
£469.99
£469.99
Sale Sold out
Tax included.

Out of stock

Free standard delivery on this item

The JCB Recoil Pull Start CB Engine Petrol Site Generator 224cc JCB-G3600P is a powerful and durable 4.5kVA generator, ideal for professional use in various settings such as building sites, workshops, and farms.

Featuring a market-leading 224cc 7.5hp JCB petrol engine, it provides a peak output of 3.6kW/4.5kVA, ensuring reliable and high-performance power generation.

Key Features:

  • Powered by a 224cc 7.5hp JCB petrol engine.
  • Max output of 3.6kW / 4.5kVA*, continuous output of 3.3kW / 4kVA
  • Automatic Voltage Regulator (AVR), which ensures a smooth and stable power output.
  • Built-in overload protection prevents damage to the alternator during operation.
  • Mounted on puncture-proof tyres and encased in a robust 32mm tubular steel full frame design.
  • Equipped with a 230v / 16A (Blue) socket and a 115v / 16A (Yellow) socket, as well as a 12v DC 8.3A auxiliary power outlet.
  • Heavy-duty recoil pull start
  • Powered by a 4-stroke petrol engine, the generator requires no fuel-oil mixing.
  • Run time of over 13 hours at 50% load with its 15-litre fuel tank. Net Weight 50kg
  • Backed by a comprehensive 3-year warranty (1 year Commercial)

Specifications:

  • Model: JCB-G3600P
  • Start Method: Recoil
  • Maximum Output kVA: 4.5
  • Maximum Output (kW): 3.6
  • Continuous Output (kW): 3.2
  • Run Time @ 50% load (hours): 13
  • Fuel Consumption @ 100% load (L/Hr): 2
  • Fuel Consumption @ 50% load (L/Hr): 1.15
  • Alternator Type: AVR
  • Phase: Single Phase
  • Voltage: 115V / 230V
  • Connection Method(s): 230V / 16A, 115V / 16A
  • Rated Speed (RPM): 3000
  • Frequency (Hz): 50
  • Max/Continuous Current (Amps): 15.6 / 13.9
  • Engine Model: JCB-EG225P
  • Engine Type: Petrol single cylinder
  • Engine Size (cc): 224
  • Engine Power (hp): 7.5
  • Fuel: Petrol
  • Fuel Capacity (L): 15
  • Engine Oil Type: 10w-30 / SAE 15w40
  • Engine Oil Capacity (ml): 600
  • Low Oil Level Shutdown: Yes
  • Features: Overload Protection
  • Casing: 32mm Thick Open Frame
  • Frame Diameter (mm): 33
  • Noise Level db (A) @ 7m: 70
  • Noise Level db (A): 97
  • Wheel Kit?: 54
  • Gross Weight (kg): 51
  • Net Weight (kg): 50
  • Fully Assembled Dimensions (H x W x L) (mm): 540 x 580 x 610
  • Package Dimensions (H x W x L) (mm): 515 x 520 x 685
  • Fuel/Power Source: Petrol
  • Product Type: Petrol Generator
  • Home Use Warranty (years): 3
  • Model EAN: 5059608313055
  • Assembly Required?: Yes - some assembly may be required

SKU: Z-HY-JCB-G3600P

MPN: JCB-G3600P

ID: Z-HY-JCB-G3600P
