JCB Heavy Duty Petrol Wood Chipper 224cc 4-Stroke 100mm /4” JCB-CH75100P

Key Features:

224cc 4-Stroke 7.5hp JCB Engine:

• Incredible power compared to the size of our engine, offering 7.5hp from a 224cc. This prevents any bogging or stalling when mulching.

Heavy-duty Chipping Capacity:

• Built to process tough materials up to 100mm / 4” in diameter.

2-Blade Drum Mechanism:

• Armed with two sharp reversible blades for quick and efficient processing.

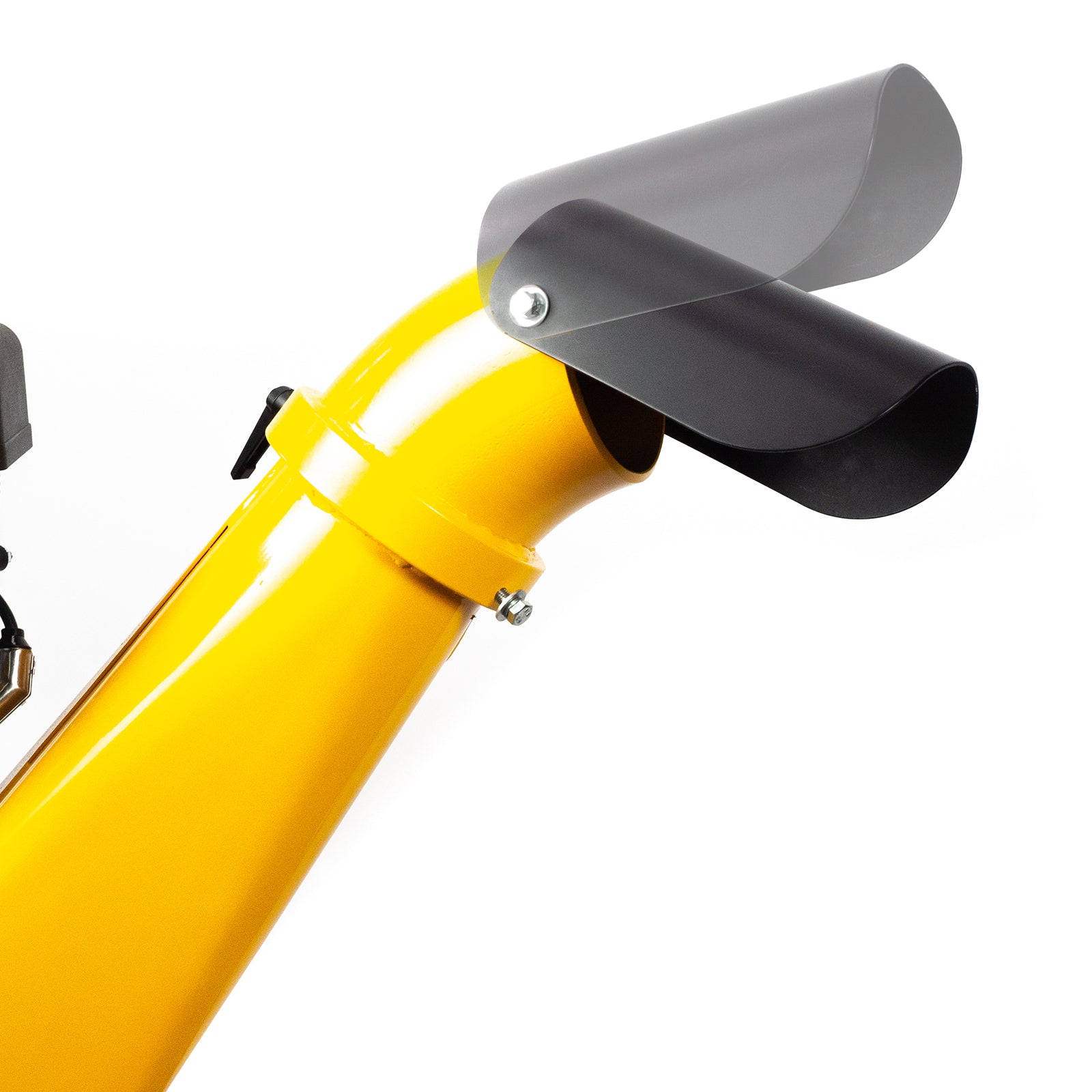

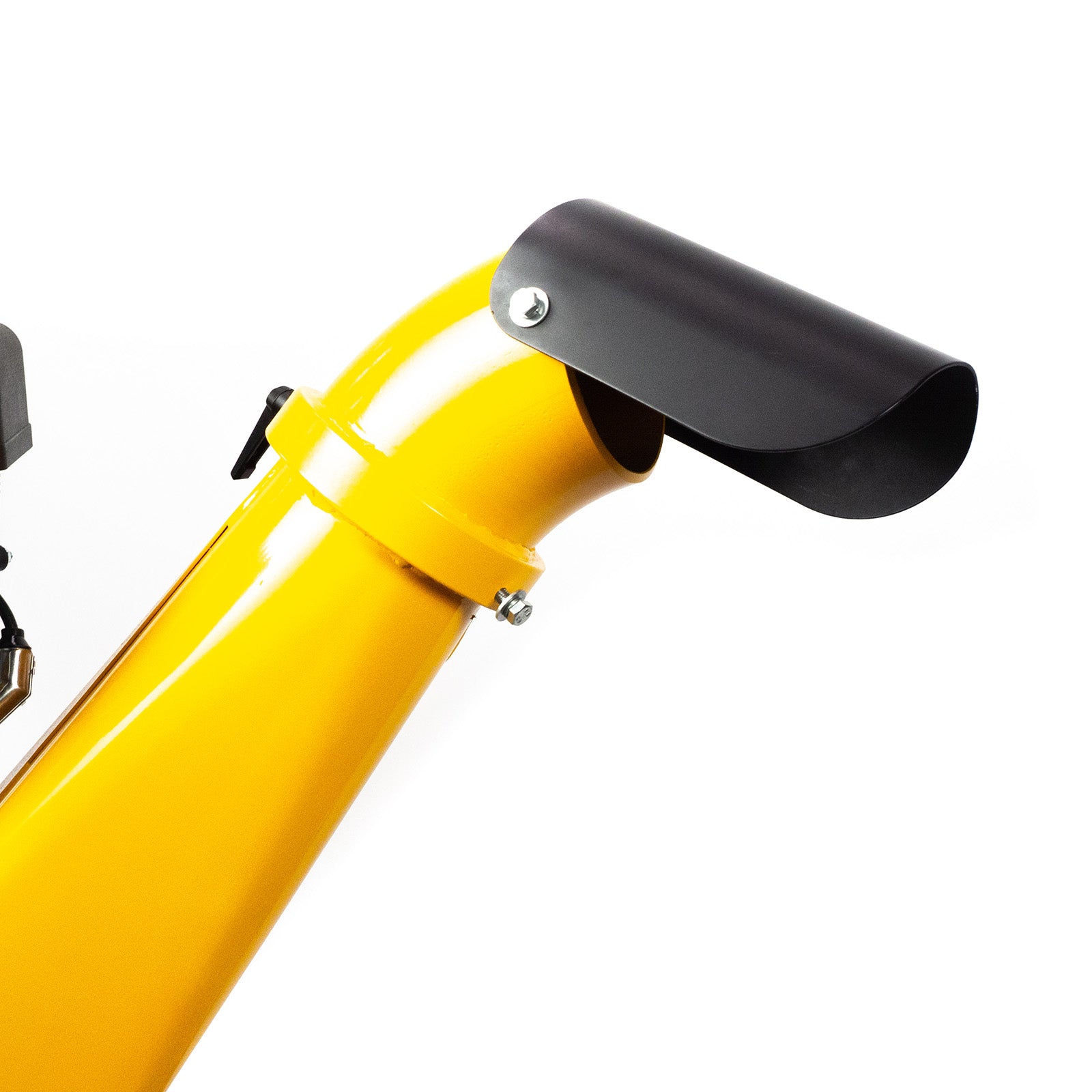

360° Rotating Chute:

• Directs chippings into a wheelbarrow/trailer or into a neat pile.

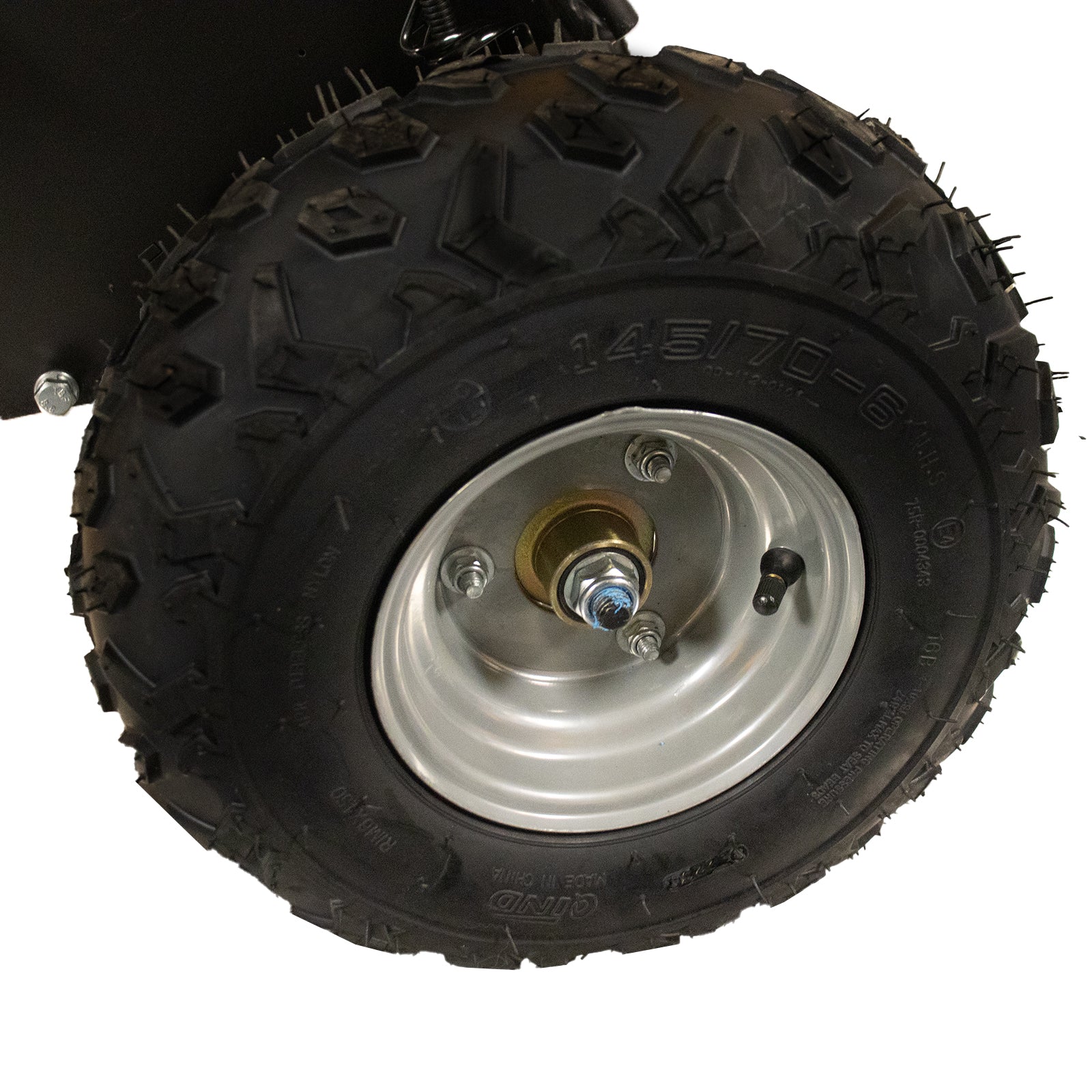

368mm / 14.5” Pneumatic Wheels and Built-in Off Road Tow Bar:

• Built to be transported between worksites through even the most rugged terrain -  for off-road use only.

Safe Operation:

• Fitted with a safety shut-off button and shut-off safety bar in case of the need to perform an emergency stop.

Straight-forward to maintain:

• Thanks to its belt-driven design, the JCB wood chipper is robust, reliable and low-maintenance.

Specification:

• Model: JCB-CH75100P
• Start Method: Recoil
• Drive Type: Belt Drive
• Chipping Capacity (mm): 100
• Feed Hopper Opening Size (mm): 450 x 378
• Infeed Throat Opening Size (mm): 148 x 223
• Disc Size (mm) (Diameter / Thickness): 350
• Knives Twin Reversible Blades
• Features: Emergency Stop Button Emergency bar
• Engine Model JCB-E225P
• Engine Type: 4 Stroke OHV Single Cylinder
• Engine Size (cc): 224
• Max Engine Output (hp): 7.5
• Disc Speed (RPM): 2800
• Fuel: Petrol
• Fuel Capacity (L): 3.6
• Engine Oil: SAE 30 or 15W40
• Engine Oil Capacity (ml): 600
• Gross Weight (kg): 148
• Net Weight (kg): 120
• Tyres Pneumatic: Wheel Size (Inches): 14.5
• Wheel Size (mm): 368
• Off Road Tow Bar?: Yes
• Fully Assembled Dimensions (H x W x L (mm): 2279 x 651 x 860
• Package Dimensions (H x W x L) (mm): 910 x 565 x 860
• Warranty (years): 3
• Commercial Warranty (years) : 1
• Model EAN: 5059608313079
• In The Box: Petrol Wood Chipper, Manual, Tool Set
