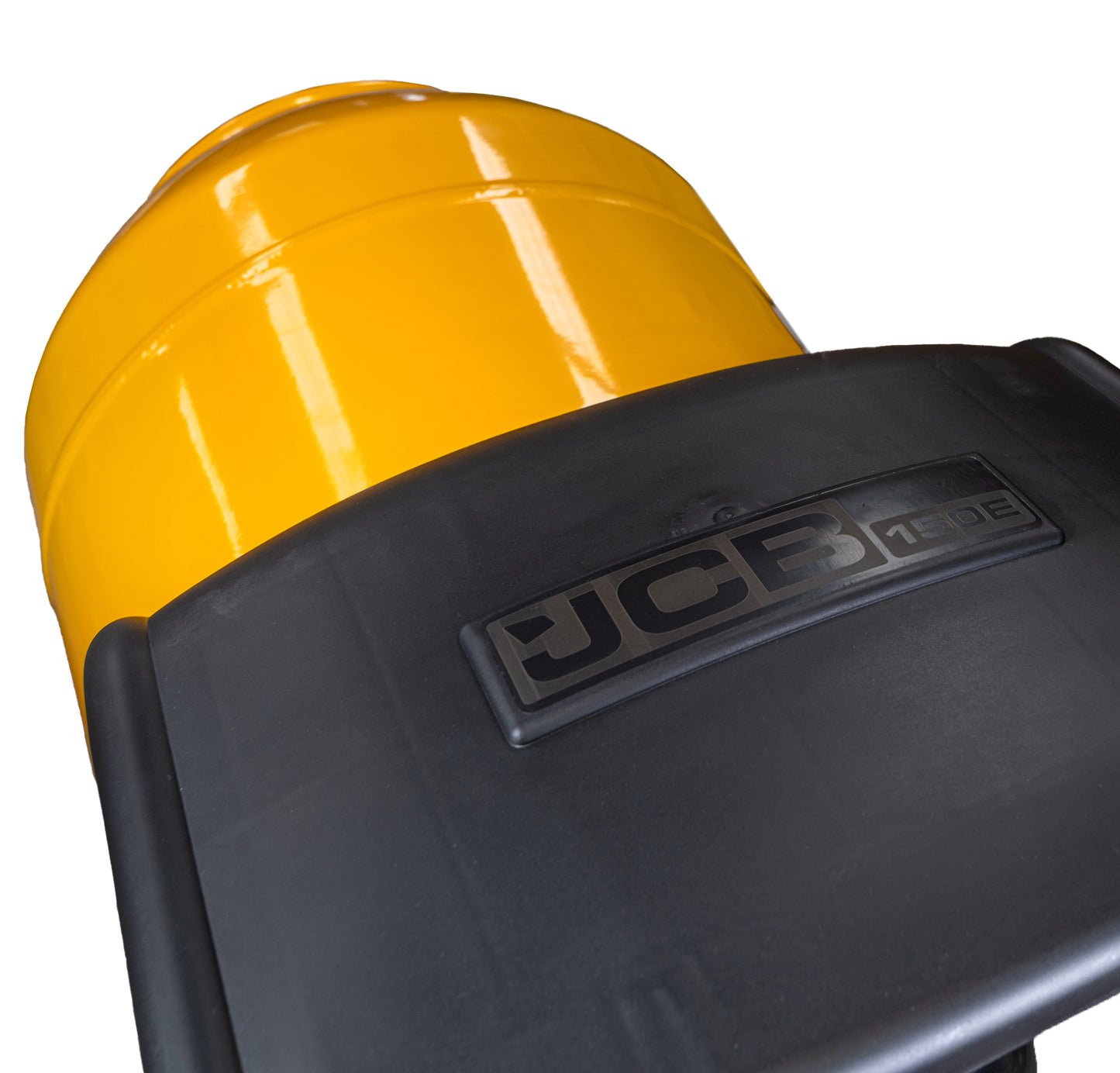

JCB CM150E 230V Electric Seam Welded Cement Mixer

Key Features:

• Professional use with portability in mind
• 134L Seam Welded Drum with 2 Welded ‘Fast-Mix’ Paddles: Designed to mix full barrows of concrete and mortar efficiently
• Robotically Welded One-Piece Chassis: Built to cope with demands of all-day use on construction sites
• Large 100L Mixing Capacity: Designed to reduce the frequency of stopping to reload the mixing drum
• High-Torque 550W Motor: Helps produce strong and cohesive concrete mixes for small to medium-sized construction projects
• Selection of Three Working Positions: Each of which can be securely locked into place to cater for the specific mixing application
• 4 Leg Stand: Can be used to mix materials on or off the stand
• Heavy-Duty & Maintenance-Free Sealed Gearbox: Designed to extend the lifespan of the cement mixer
• Welded Motor Support Table & Plastic Motor Cover: Offers dependable protection to the motor during operation
• Two 12” Composite Puncture-Proof Wheels: Manoeuvre across a site with confidence

Specifications:

• Model: JCB-CM150E
• Start Method: Motor Switch
• Power (w): 550
• Voltage (v): 230
• Cable Length (m): 3
• Paddles: 2 Welded
• Drum speed (rpm): 25 - 28
• Drum Capacity (L): 134
• Mixing Capacity (L): 100
• Cogwheel Type: Gear Reduction
• Chassis Material: Q235 Steel
• Drum Diameter (mm): 600
• Drum Height (mm): 604
• Drum Mouth (mm): 373
• Drum Thickness (mm): 1.5
• Tilting Device: Yes
• Wheel Diameter (cm): 30 x 8
• Wheel Material: Composite
• Sound Level (db): 84.5
• Gross Weight (kg): 74.5
• Net Weight (With stand) (kg): 68
• Net Weight (Without stand) (kg): 56.8
• Fully Assembled Dimensions (H x W x L) (mm): 1430 x 1300 x 735
• Package Dimensions (H x W x L) (mm): 940 x 655 x 875
• Fuel/Power Source: Electric
• Product Type: Cement Mixer
• Model EAN: 5059608426137
• In The Box: JCB-CM150E Cement Mixer with Support Stand & Manual
• Warranty: (Years) 3
