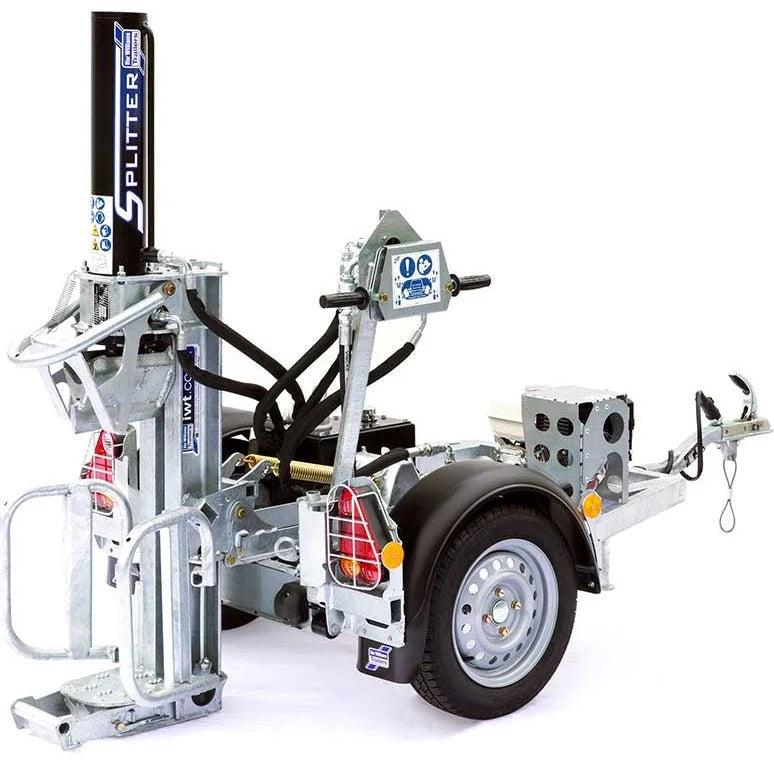

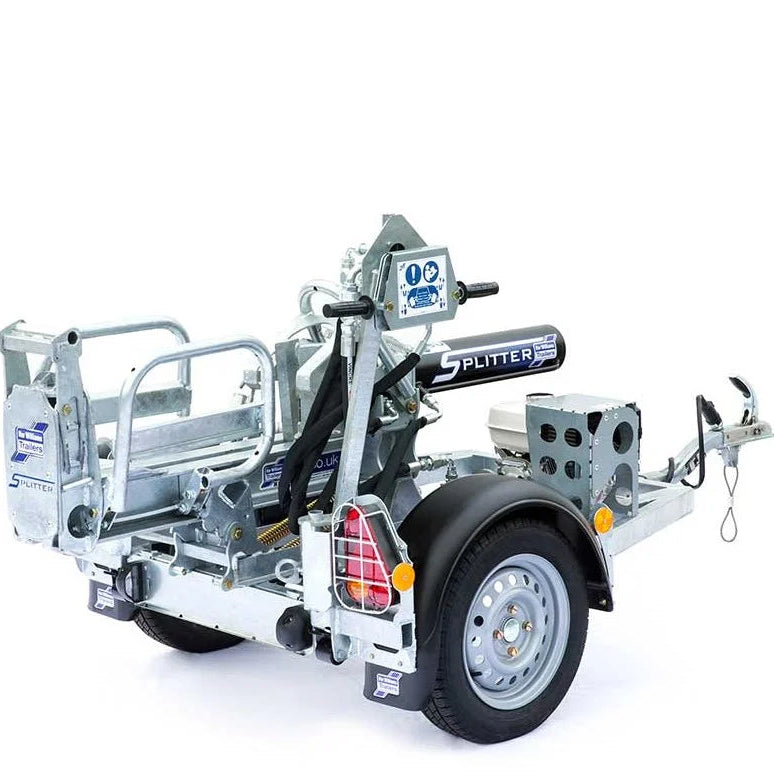

Ifor Williams LS256 Log Splitter Trailer with Mesh Lamp Guards

Features:

• Galvanised Steel Splitting Column and Head: Ifor Williams LS256 Log Splitter Trailer features a Fully Galvanised and Passivated finish that protects all of the Steel Structure from the harshest of weather
• 25t Hydraulic Ram: Ifor Williams Log Splitter delivers its cutting power through a 25T Hydraulic Cylinder that powers through even the toughest of logs with ease.
• High-Grip Anvil: The base of the cutting column boasts a useful "High-Grip" Anvil that stops the logs from slipping while being cut, ensuring the cut is delivered exactly where required, every cut.
• Honda GX200 Engine: To deliver the power to the hydraulic system, we have chosen an engine from a brand that is known worldwide, "Honda". This GX200 Engine delivers an impressive 5.6 HP from the 196cc Petrol Powered Engine, giving all of the power required to drive the Hydraulic System.
• Exhaust Cover: To keep you protected from the Hot Exhaust System, the Log Splitter features a Galvanised Steel Exhaust Guard that protects your hands from the hot exhaust and also protects the exhaust from damage whilst the Log Splitter is in use.
• Two Stage Hi-Lo Hydraulic Pump: All of the cutting force is delivered from the Honda GX200 Engine via a Two Stage Hydraulic Pump that delivers the cutting force as required, at an impressive 11 Gallons Per Minute, making the Log Splitter both Powerful and Reliable.
• Log Retainer/Guards: To accompany the Strong and Durable Anvil at the base of the Cutting Column, we have also incorporated a pair of Hinged Side Guards that help to keep the Log in its correct position whilst being cut and also stop the “Split Log” from falling sideways.
• Three Position Control Column: The Log Splitter houses its control levers on a rotating, 3-Position Column that allows the operator to position the Control Levers to a position that is comfortable for use and allows a good view of the cutting operation, whilst keeping the user away from the cutting head.
• Two-Handed Safety Control: Ifor Williams Trailer puts Safety at the forefront of any product. To ensure the safety of the operator, the Log Splitter incorporates a “Dual Lever” type control that requires the operator to use both hands to operate the machine and also includes a spring return so that when the levers are released, the Log Splitter Ram retracts, ready for the next cutting cycle, saving the operator time whilst delivering safety.
• Log Stripper: The Log Splitter incorporates a handy “Log Stripper” that can be used to remove logs that are trapped on the cutting head, making removal effortless. It is spring-loaded so that it stays out of position, but is easily deployed when required.

Details:

• Model: LS256
• Tyres: 145/70R13C
• Gross Weight: 500kg
• Unladen Weight: 350kg
• Overall Length: 2700mm
• Overall Width: 1260mm
• Splitting Pressure: 25 tonne
• Maximum Log Length: 600mm
