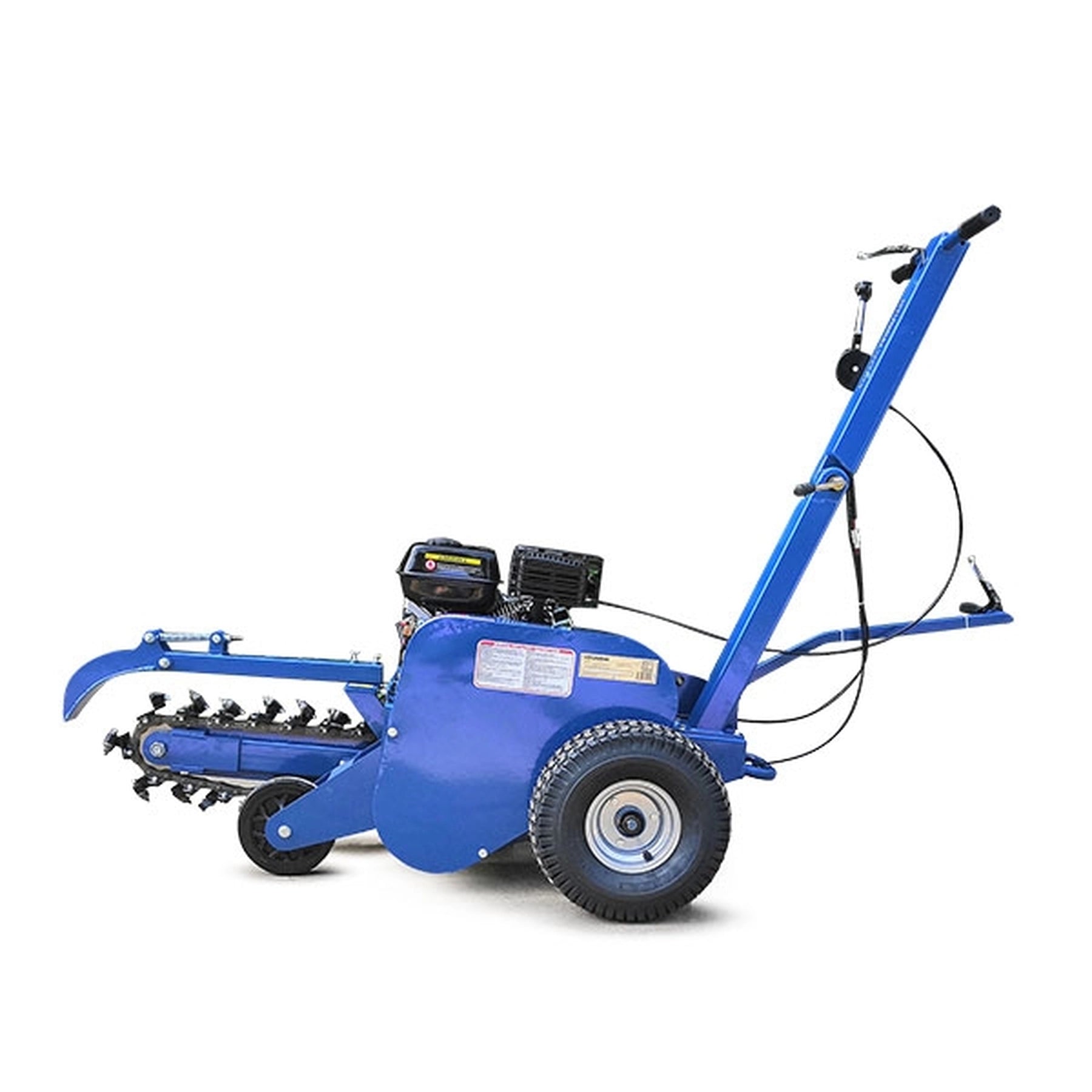

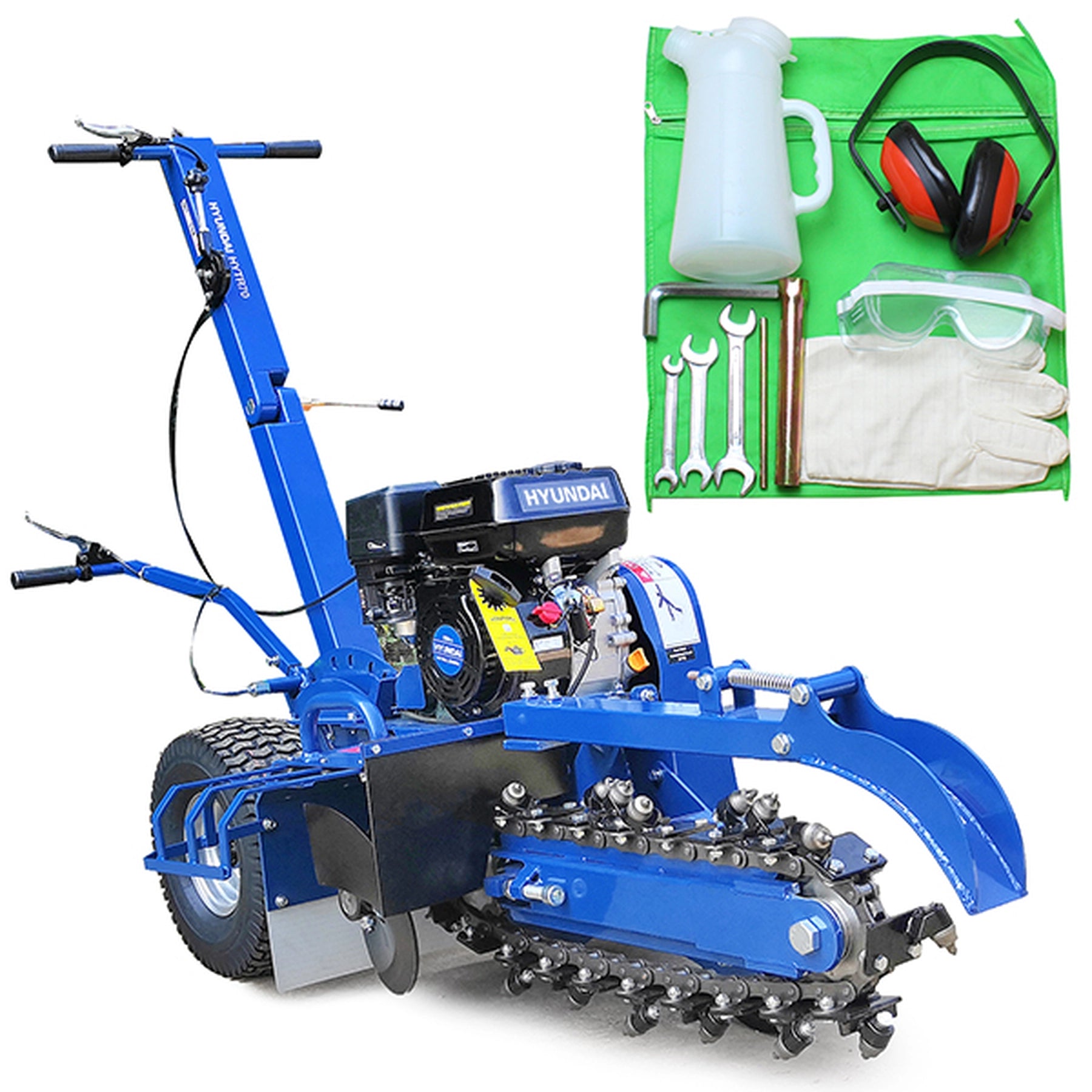

An extremely powerful petrol trencher - powered a 210cc / 7hp 4-stroke Hyundai engine the HYTR70 is capable of cutting trenches 100mm wide and 450mm deep quickly, efficiently and safely.

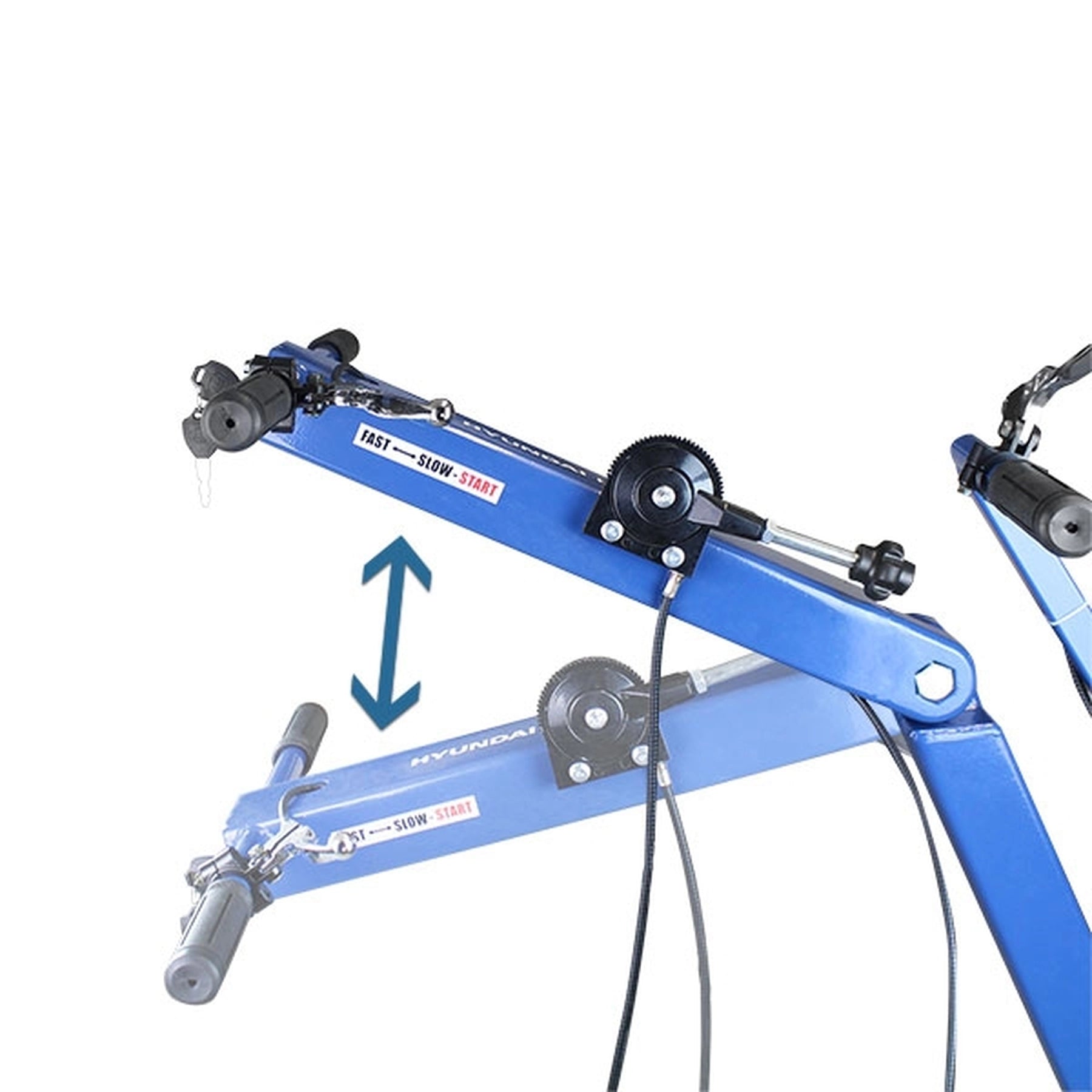

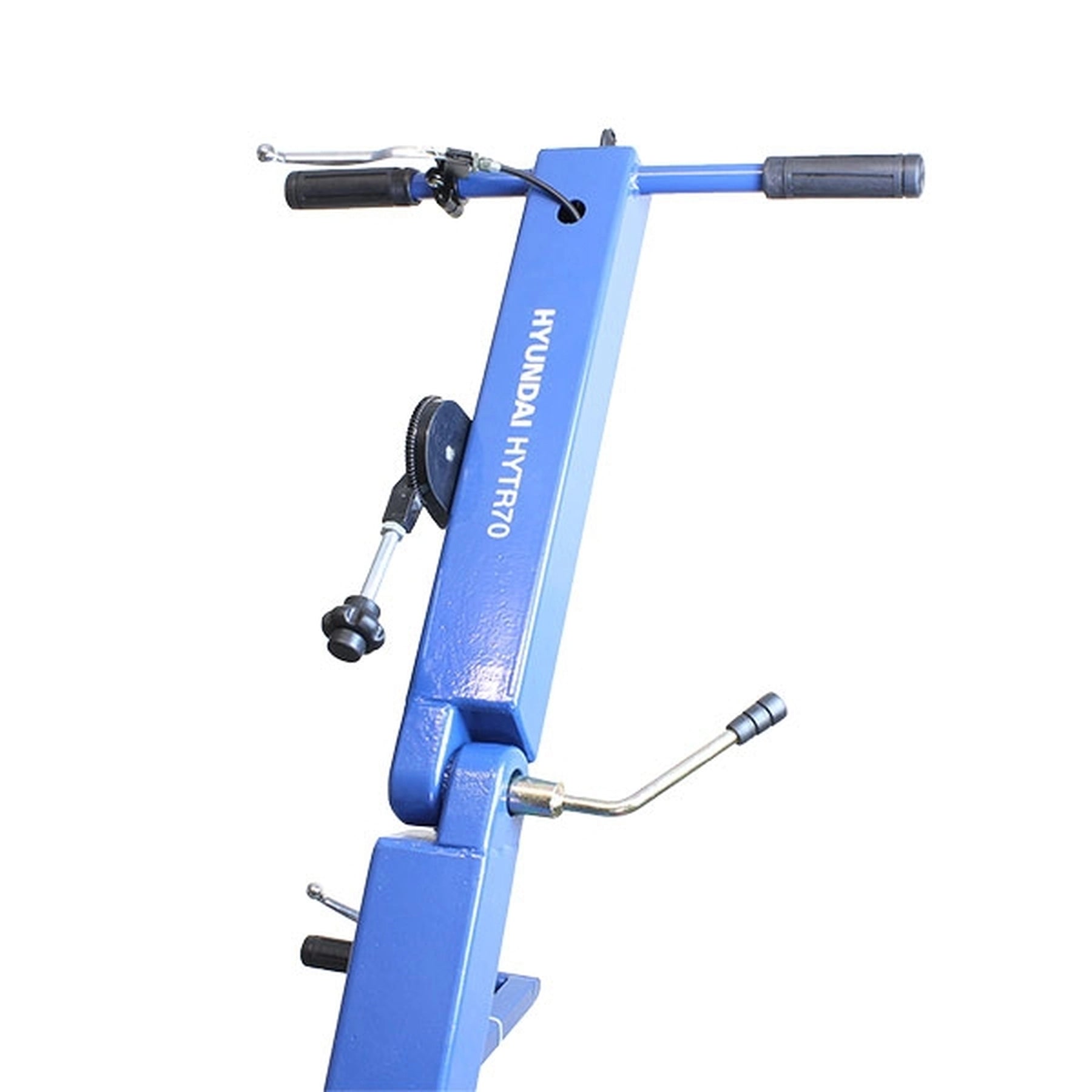

Weighing 135kg, the HYTR70 ground trenching machine is great for laying pipes, cables and drainage. It is easy to manoeuvre due to its large adjustable handlebars and heavy duty pneumatic tyres makes moving over rough ground easier. Ideal for jobs where access is restricted allowing the operator to dig a trench at any location at only 70mm wide, the HYTR70 can fit through a standard garden gate. Built to make tough trenching faster and less demanding the cutting bar can be adjusted to 4 cutting depths up-to 450mm deep and can dig up-to 60m per hour. The soil is cleared from the chain area by a side mounted auger. The wheel brake and engine throttle are controlled directly from the handlebars for maximum comfort and control.
Features:
210cc / 7hp Hyundai heavy duty 4-stroke engine.
Two large pneumatic wheels for easy manoeuvrability.
Wheel brake and engine throttle-controlled directly from the handlebars.

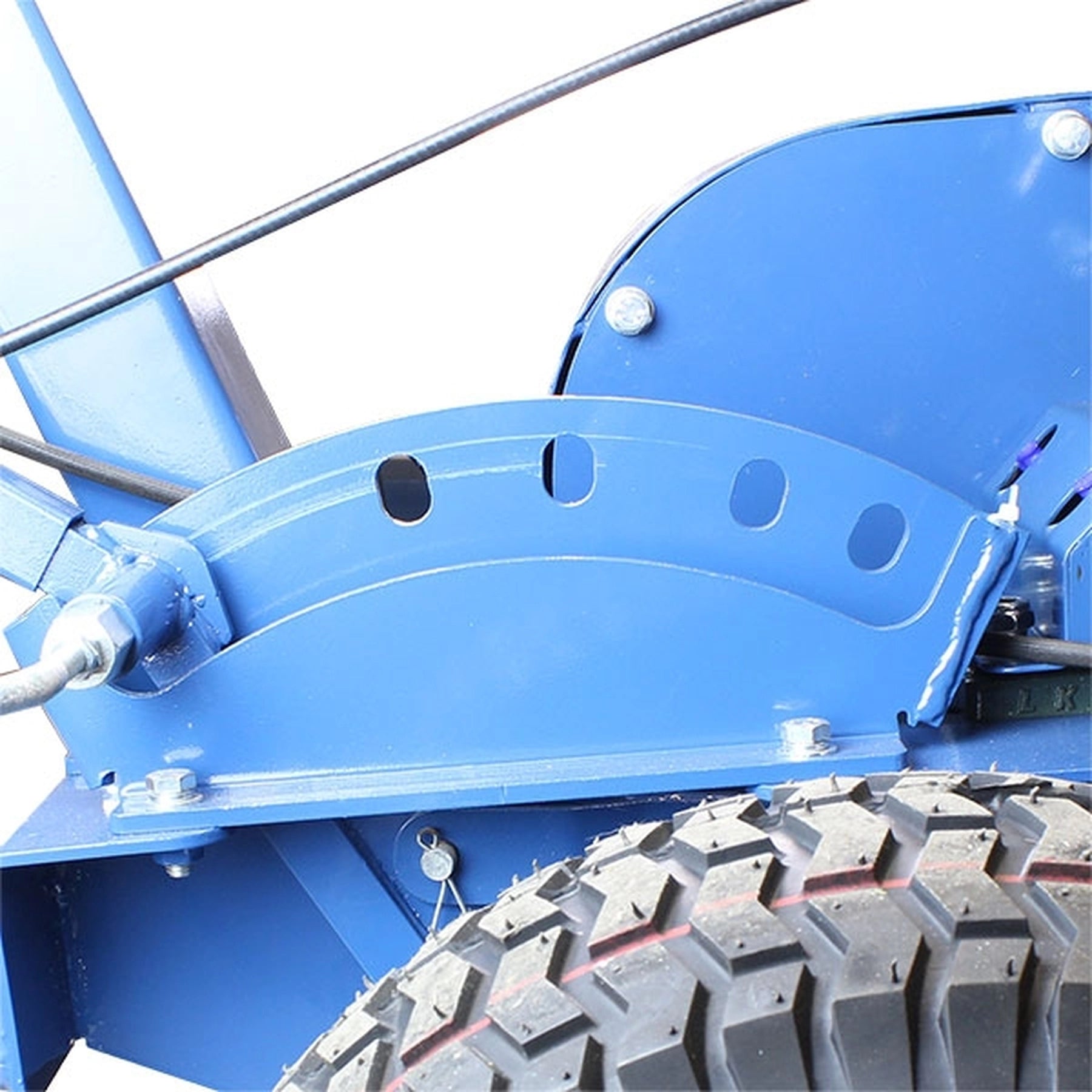

450mm digging depth (adjustable in 4 steps).
21 Tungsten Carbide Alloy Teeth - 10 times stronger than steel.
Easy lift handles.
Covered by Hyundai UK 3 year platinum warranty.
Full UK service and parts operation to maintain your trencher for years to come
Technical Specification:
Model - HYTR70

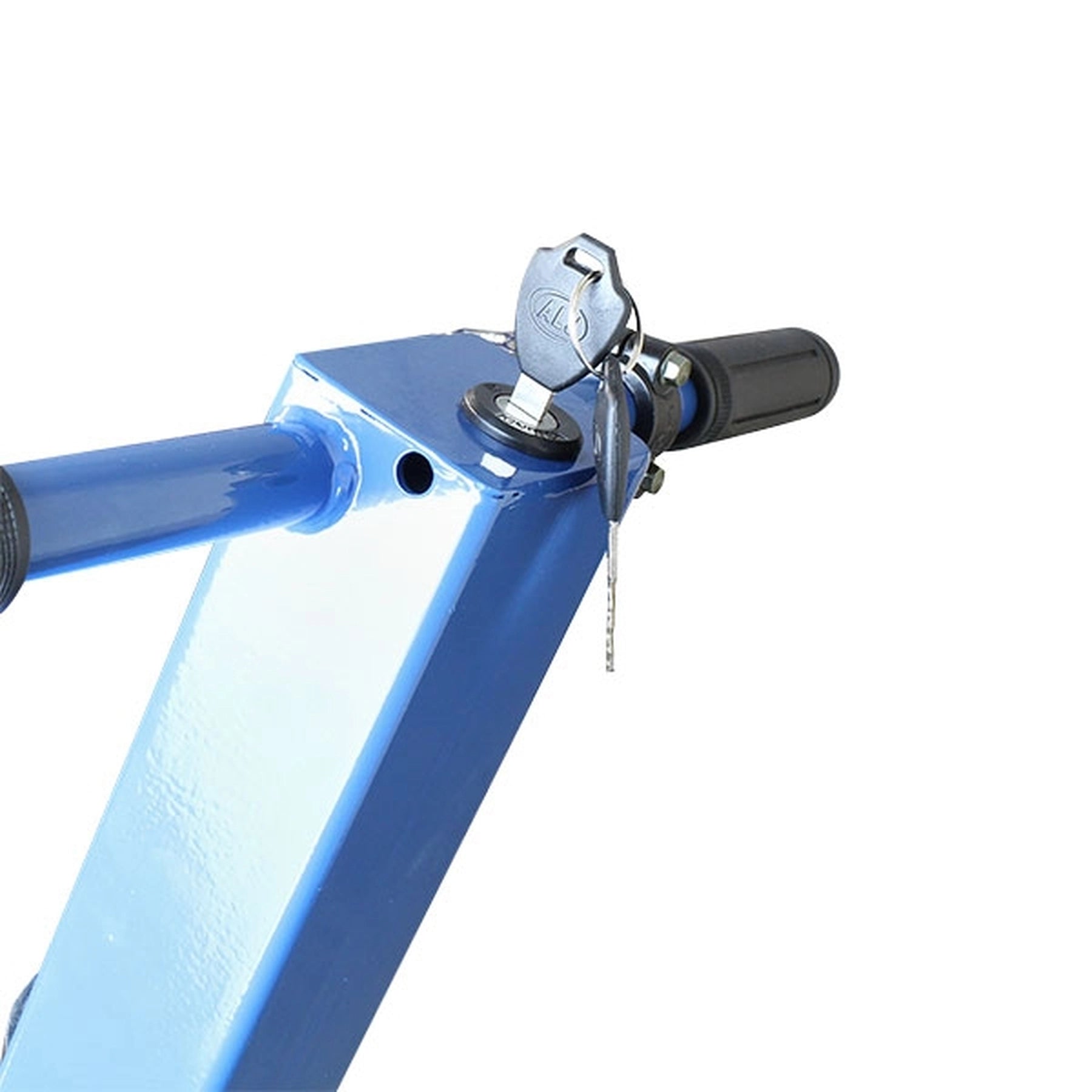

Start Method - Electric Key or Recoil
Trench Capacity (m/hr) - 60
Trench Depths - 4
Trench Depth (mm) - 150 / 250 / 350 / 450
Trench Width (mm) - 100
Chain Length (mm) - 1600
Chain Type - 21 Tungsten Carbide Alloy Teeth
Max Chain Speed (RPM) (m/min) - 550
Clutch Type - Centrifugal
Handle Type - Adjustable Soft Grip
Safety Features - Engine Kill Switch
Engine Model - IC210
Engine Type - OHV Single Cylinder 4 Stroke
Engine Size (cc) - 210
Rated Power (hp) - 7
Rated Speed (RPM) - 3600
Fuel - Petrol
Fuel Capacity (L) - 3.6
Engine Oil - SAE 30 or 15W40
Engine Oil Capacity (ml) - 600
Gross Weight (kg) - 165
Net Weight (kg) - 145
Tyres - Pneumatic
Wheel Size (inches) - 15
Wheel Diameter (mm) - 380
Sound Level (db) - 108
Fully Assembled Dimensions (H x W x L) (mm) - 900 x 700 x 1760
Package Dimensions (H x W x L) (mm) - 850 x 760 x 1040
