Hyundai

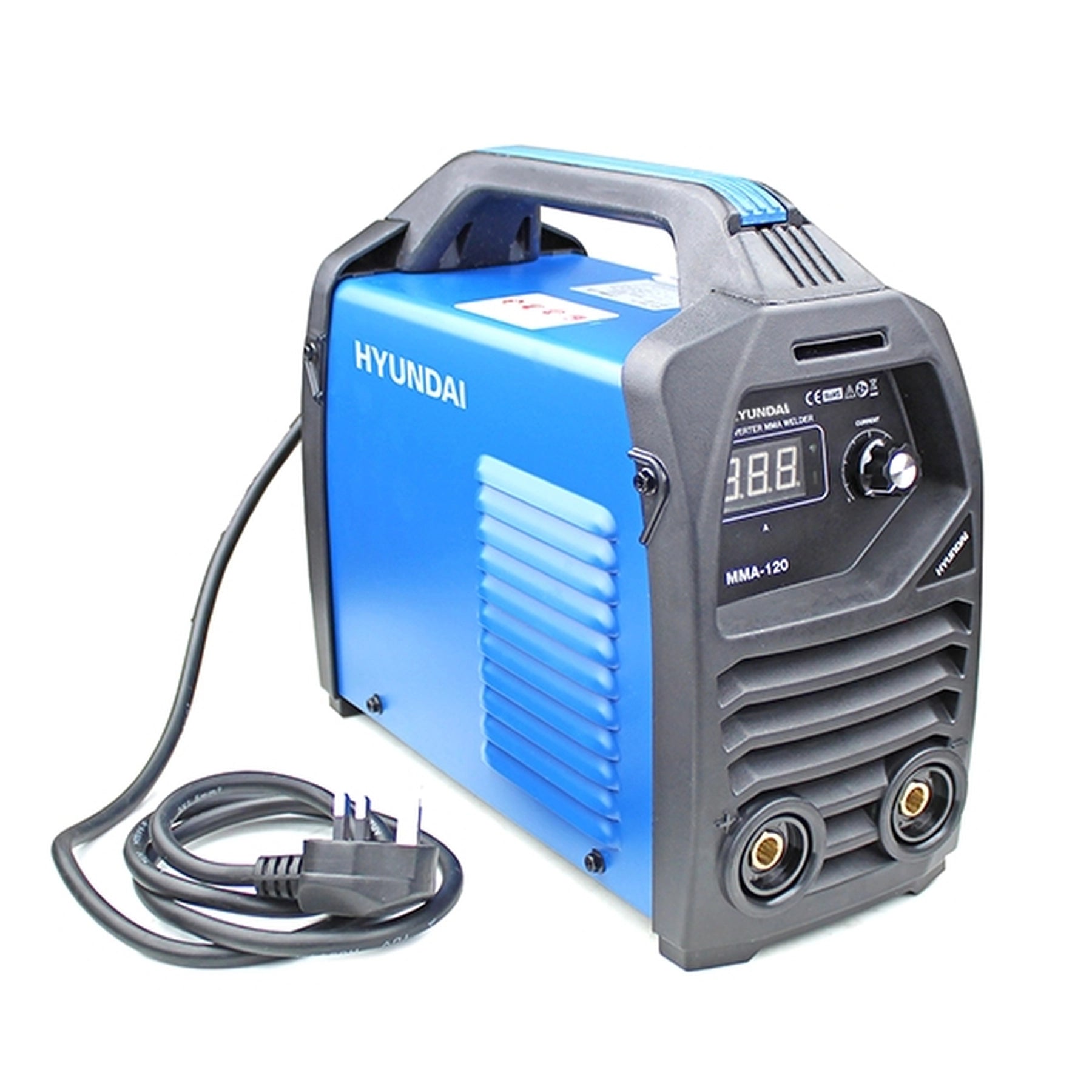

A lightweight and incredibly versatile single phase ARC / MMA welder, capable of welding mild steel up to 6mm.

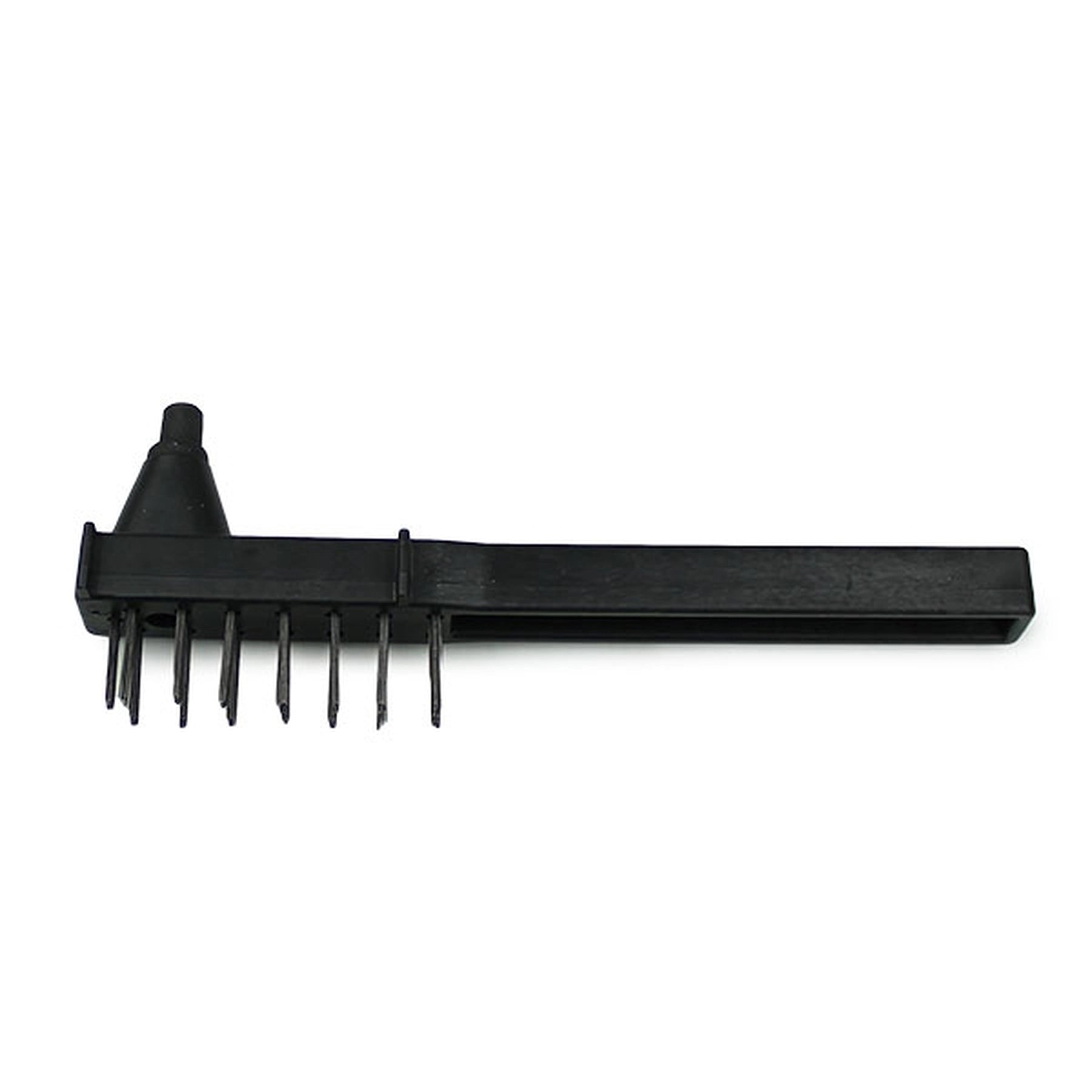

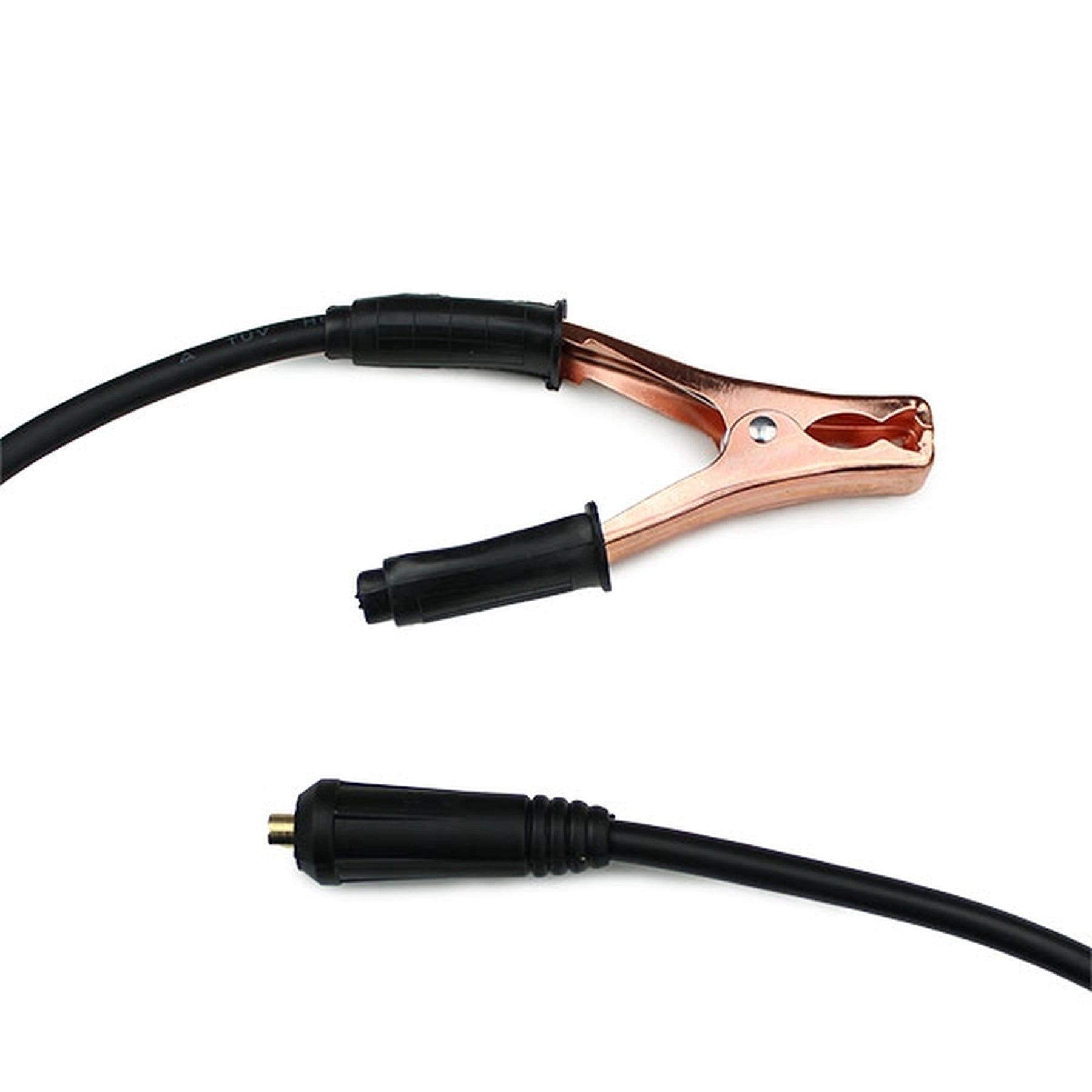

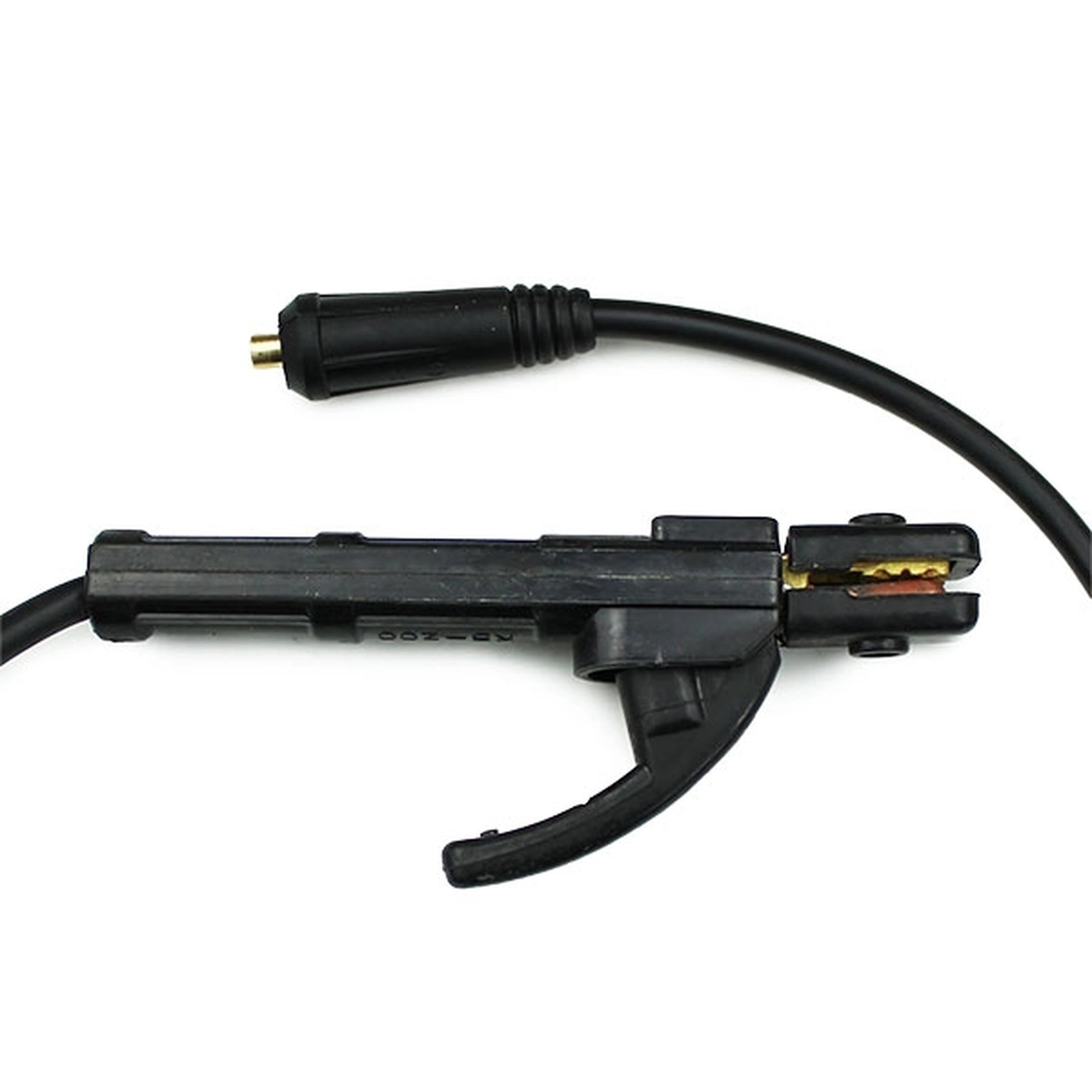

Weighing only 6.0kg, the HYMMA-120 is easy to carry around thanks to its adjustable harness and lightweight pressed steel case with powder coated finish for extra corrosion resistance. Accessories include electrode holder with 2m cable, earth clamp with 1.5m cable, chipping hammer and wire brush making the HYMMA-120 extremely cost effective. The HYMMA-120 ARC welder features a stepless regulator for infinite variable control of the welding current with a low current facility for effective welding of thinner materials. The welding (output) current of the HYMMA-120 can be regulated within the range of 20-120 Ampere making the HYMMA-120 adjustable to suit welding different materials and thicknesses of steel. Beware of lower quality models by always checking the ‘Duty Cycle’. Duty cycle is the amount of time, within a 10 minute period the welder can be used, on a given output. For example, our 120A welder has a duty cycle of 35% when used on 120A output. This means it can be used for three and a half minutes in every 10 minute period.

SKU: Z-HY-HYMMA120

  • £119.99
    Unit price per
Tax included.

Only 0 left!

Highlights:

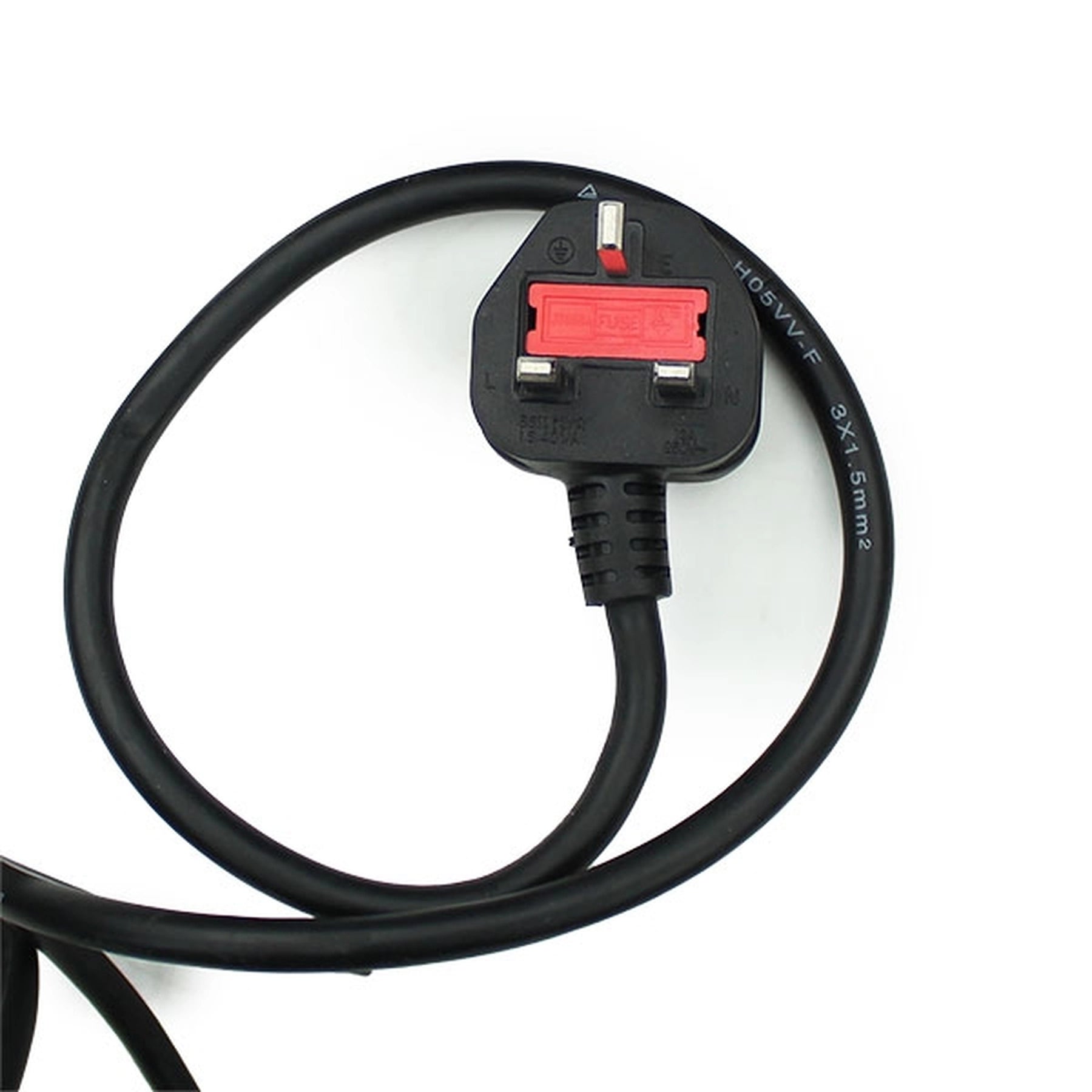

  • Fitted with UK 13A fused plug
  • Variable DC output 20Amp to 120Amp MMA / ARC Welder
  • Electrode sizes 1mm to 3.2mm
  • Duty cycle of 70A / 100% / 10minutes, 120A / 35% / 3.5minutes
  • Fitted with thermal overload protection, anti-stick and hot start functions
  • Single Phase 230v ARC / MMA Welder
  • Welding rod holder, earth clamp and cables
  • Great welder for mechanics, mobile technicians, farmers and DIY enthusiasts
  • Covered by a Hyundai 2 year platinum warranty.
  • Full UK service and parts operation to maintain your welder for years to come.

Technical Specification:

  • AC Frequency - 50
  • Current @ 60% (A) - 90
  • Dimensions (H x W x L) (mm) - 355 x 230 x 320
  • Duty Cycle (%) Under 40ºC - 35% @ 120A
  • Efficiency (%) - 83
  • Input Voltage (V) - 230
  • Max Input (kVA) - 4.8
  • Model - HYMMA-120 Inverter MMA / ARC Welder
  • Net Weight (kg) - 6.0
  • No-Load Voltage (V) - 65
  • Output Current (A) - 120
  • Power Factor (Cosφ) - 0.7
  • Rated Output Range (Amps) - 20 - 120
  • Usable Electrode (mm) - 1.0 - 3.2

SKU: Z-HY-HYMMA120

Barcode: 5056275709136

MPN: HYMMA120
