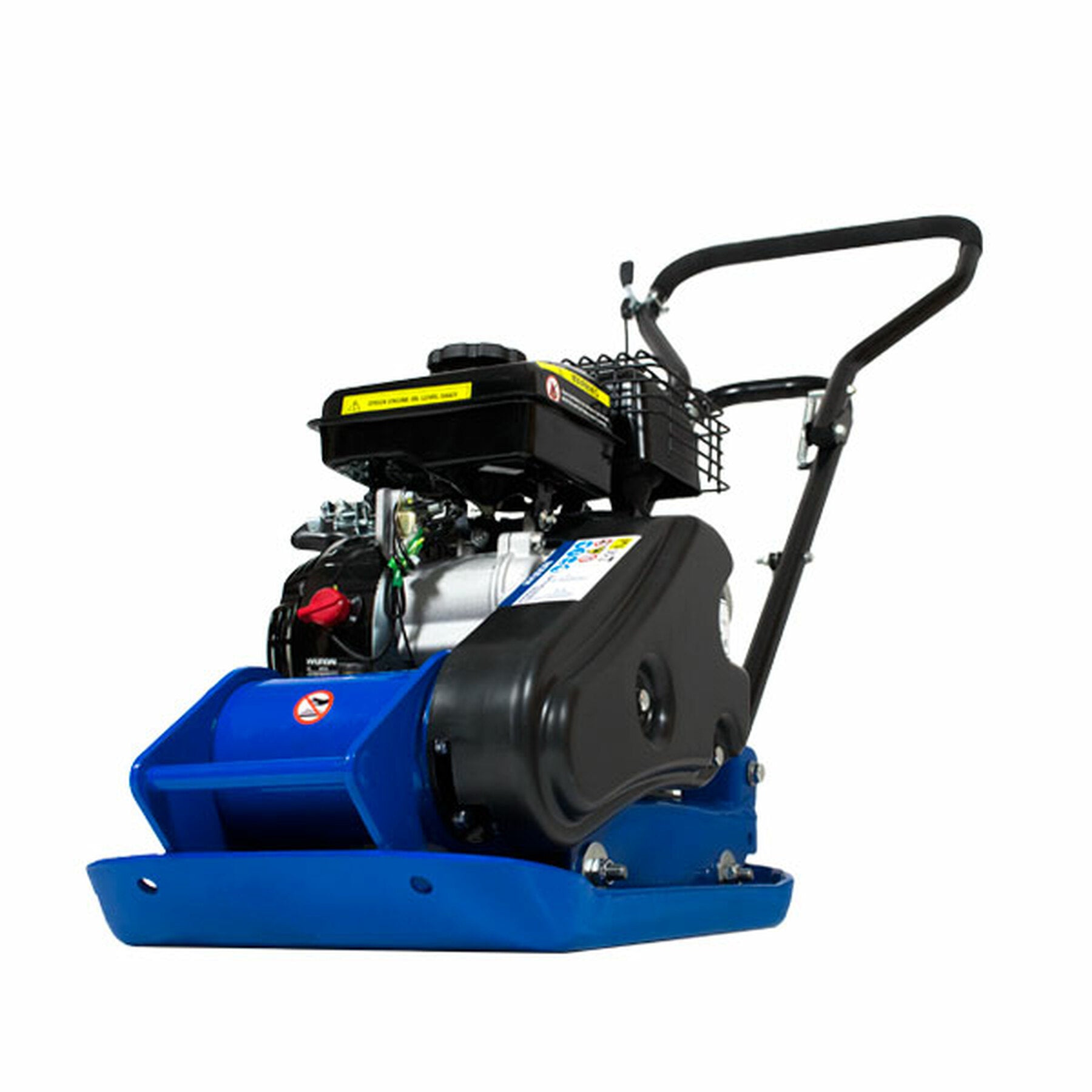

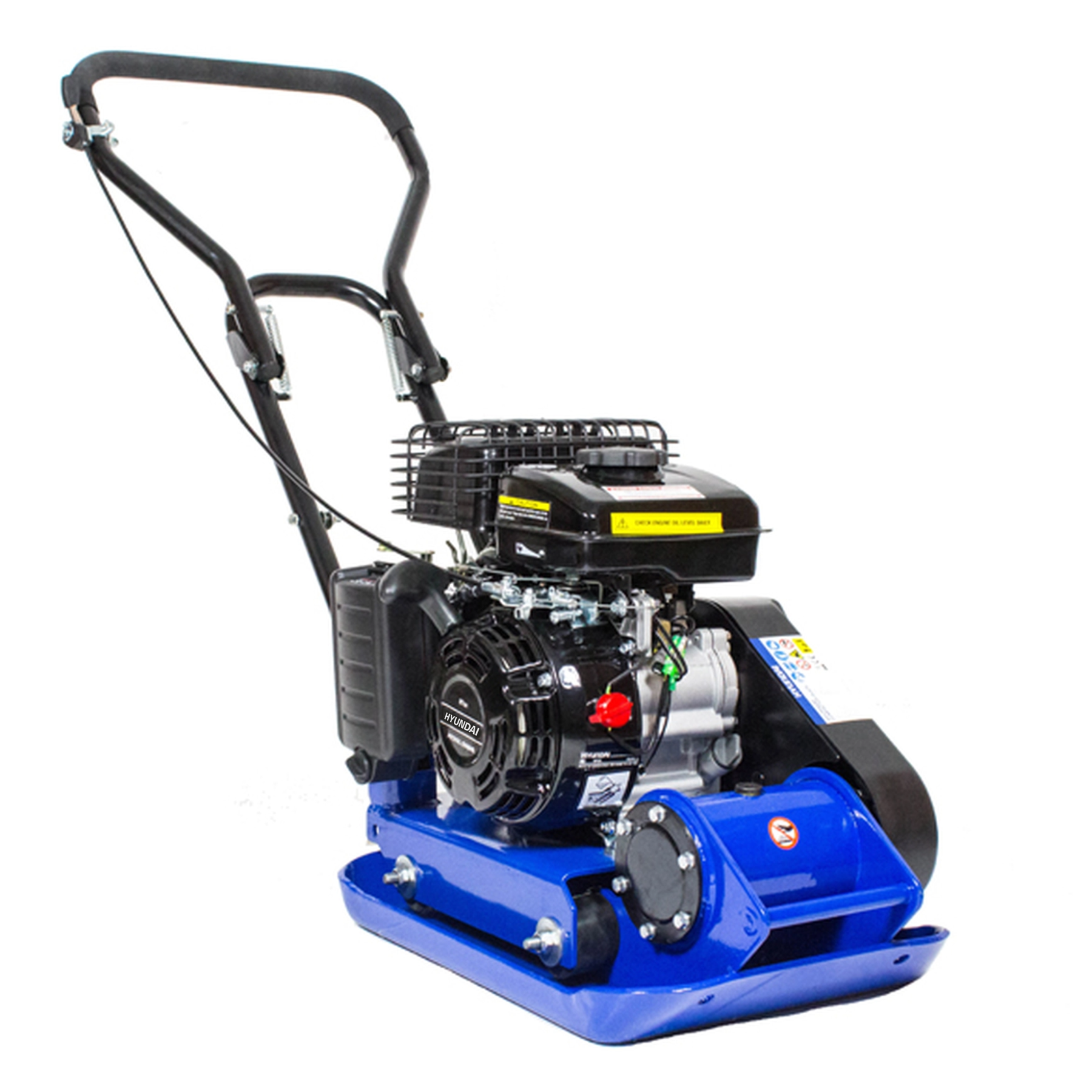

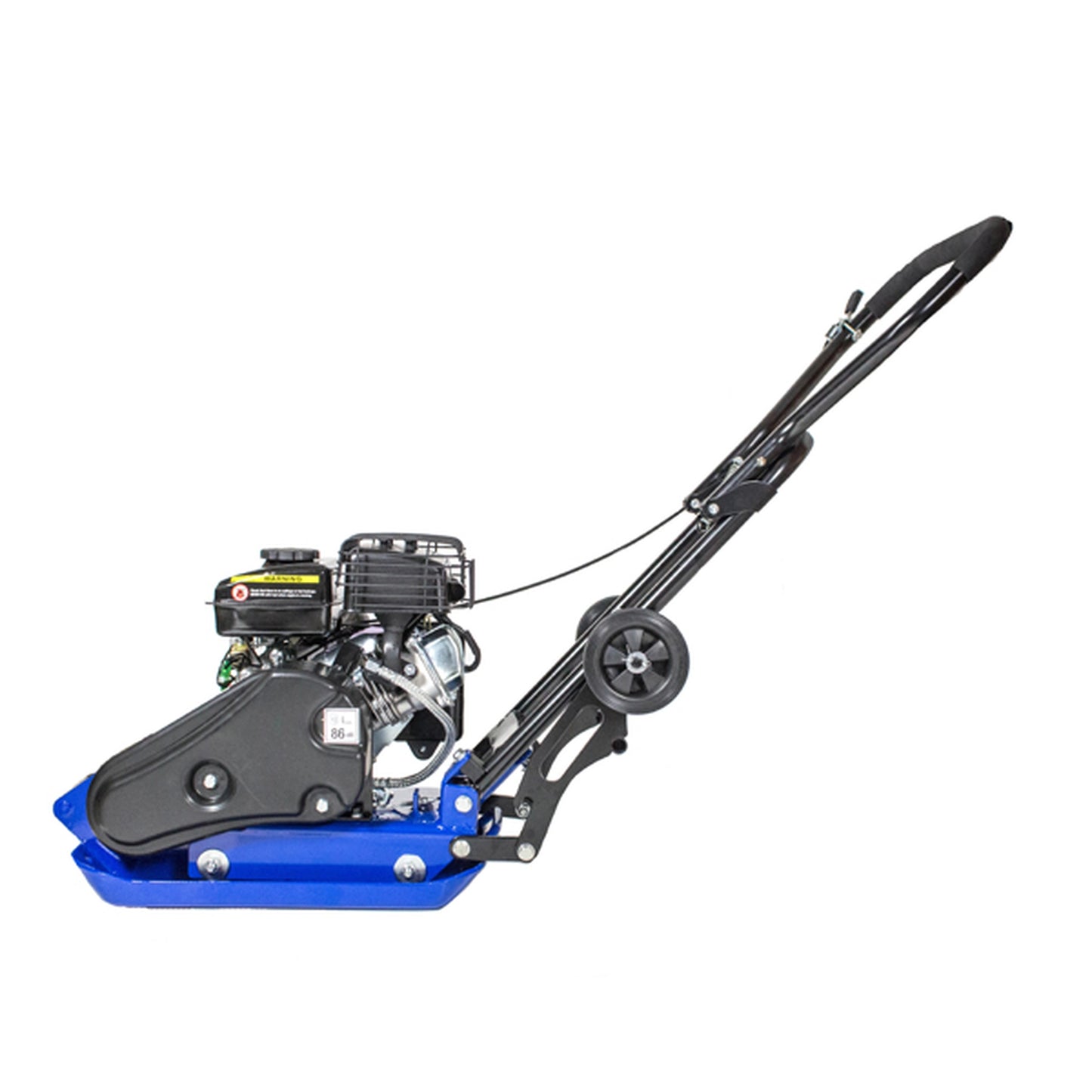

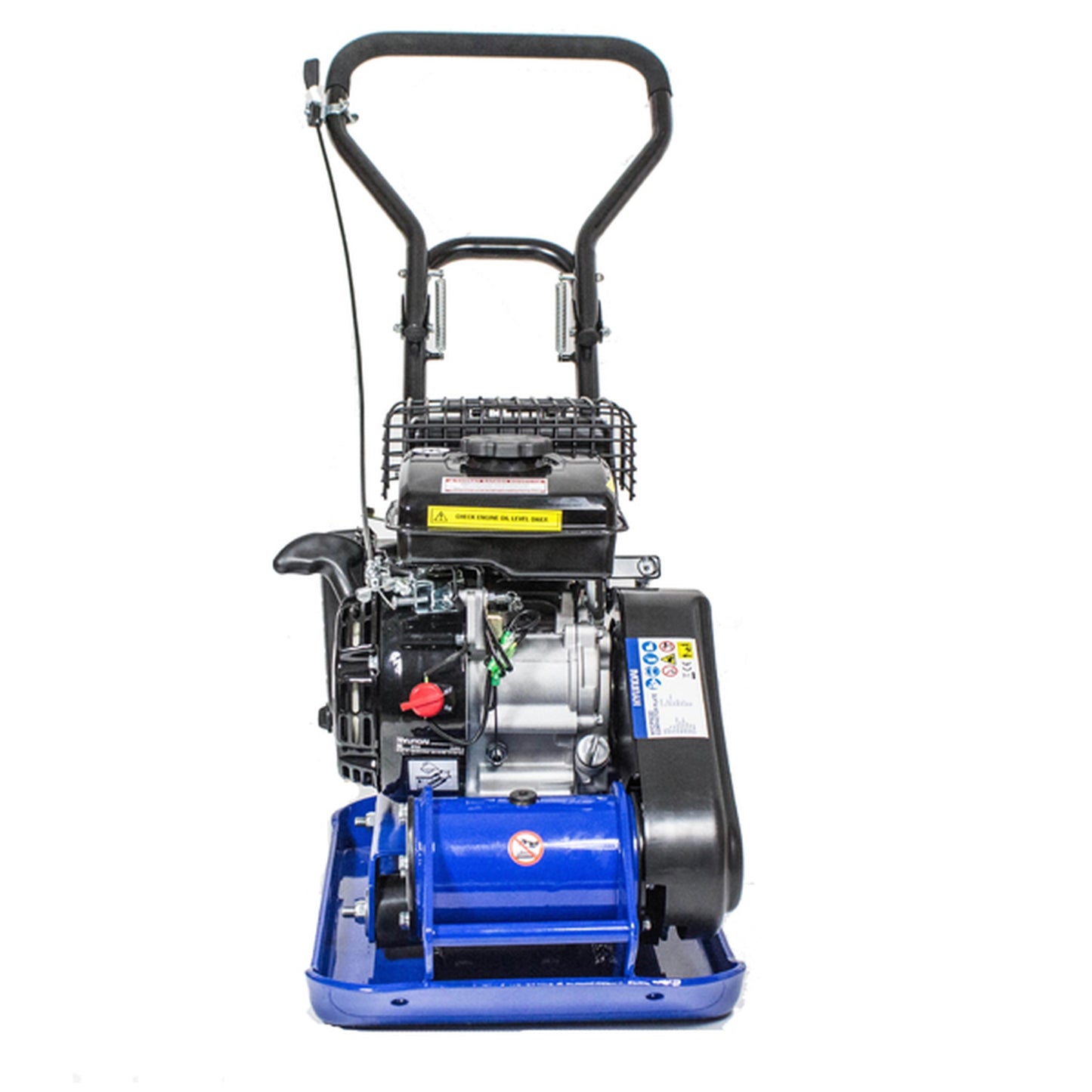

Hyundai HYCP5030 Petrol Plate Compactor w/ Wheel Kit & Paving Pad
Powered by an 87cc 4-stroke recoil start petrol engine, with a large 1.6L fuel tank for long running, it's ideal for compacting loose soil, gravel and sand together to create a solid and even foundation, providing a cost-effective alternative to hiring for the building, construction and landscaping industries.
It's fitted with a large plate measuring 495mm x 320mm (L x W) for making quick work of large areas and has a travelling speed of 25m/min, with a compaction depth of 200mm. The V-belt is covered by a guard which protects it from the knocks and bumps of construction work. The throttle control is conveniently mounted on the handle, which also has a soft grip cover for increased comfort. It's designed for building patios, driveways, block paving, garage extensions and conservatory foundations and the compactor plate comes with a paving pad to protect patios and block paving from any marks or damage during use. To make storage easy, the handles can be folded down over the main unit. The wheel kit is also available to assist with transporting the compactor from one job to the next.
- Powered by an 87cc 4-stroke recoil start petrol engine for reliable performance.
- Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.
- Equipped with a large 1.6L fuel tank for long-running.
- Fitted with a large 495mm x 320mm plate for working effectively on large areas.
- Has a travelling speed of 25m/min, with a compaction depth of 150mm.
- Wheel Kit and Paving Pad included.
- Model - HYCP5030
- Start Method - Recoil
- Compaction Depth - 200
- Plate Size (mm) - 495 x 320
- Centrifugal Force (N) - 8200
- Travel Speed (m/min) - 25
- Vibration value m/s2 - 17.5
- Exciter Oil Capacity (ml) - 80
- Exciter Speed (RPM) - 5900
- Handle Type - Soft Grip
- Safety Features - Oil Alarm
- Engine Model - 152F
- Engine Type - Hyundai 4-Stroke
- Engine Size (cc) - 87
- Rated Power (hp) - 1.6
- Rated Speed (RPM) - 3600
- Fuel Unleaded - Petrol
- Fuel Capacity (L) - 1.6
- Engine Oil - SAE30 or SAE15W40
- Engine Oil Capacity (ml) - 400
- Sound Level (db) - 91
- Gross Weight (kg) - 50
- Net Weight (kg) - 48
- Fully Assembled Dimensions (H x W x L) (mm) - 300 x 865 x 1040
- Package Dimensions (H x W x L) (mm) - 450 x 400 x 650
- Fuel Type - Petrol
- Product Type - Compactor Plate
- Warranty (years) - 3
- Commercial Warranty (years) - 1
- Model EAN - 747150287850
- In The Box - HYCP5030 & Manual
MPN: HYCP5030Google ID: Z-HY-HYCP5030
