Hyundai

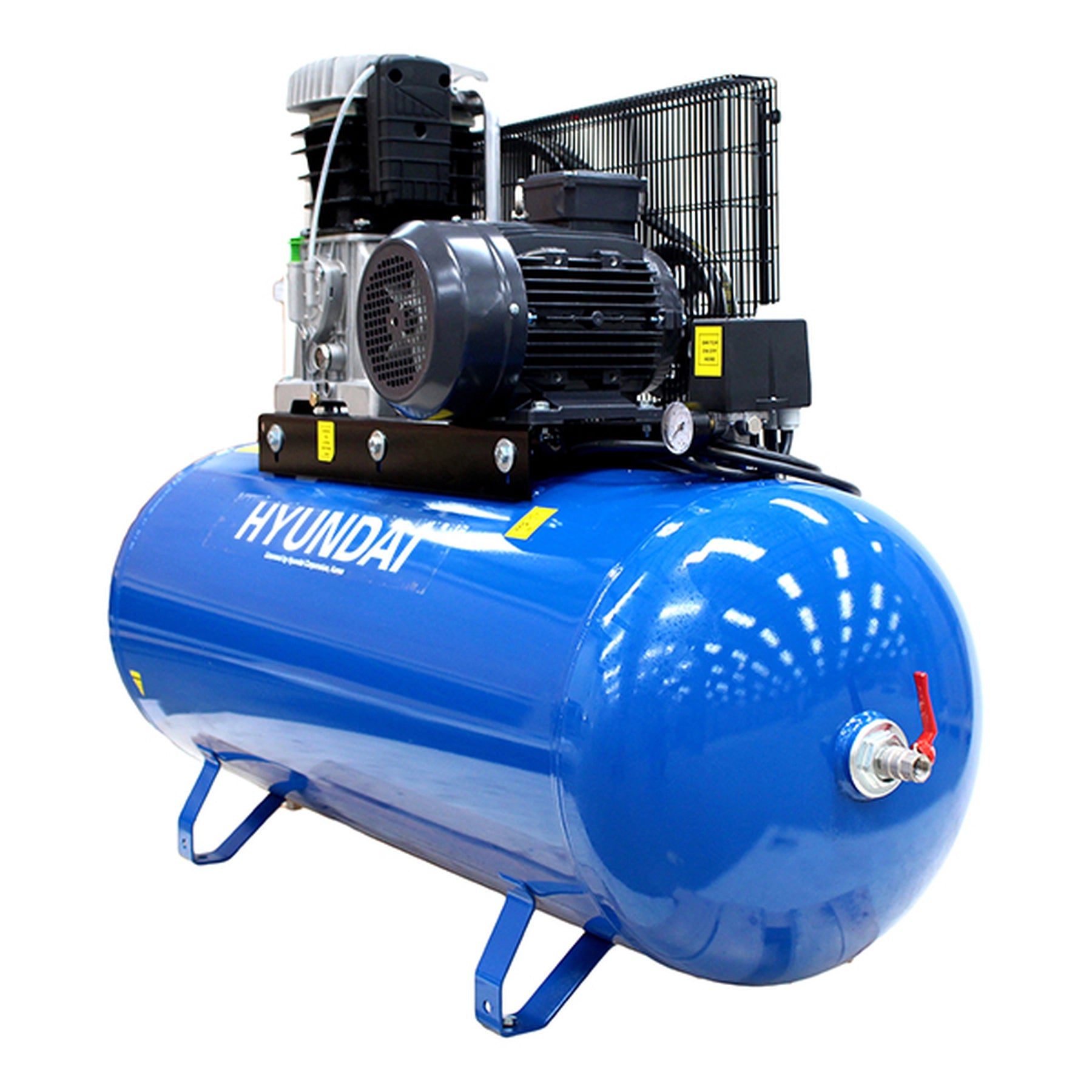

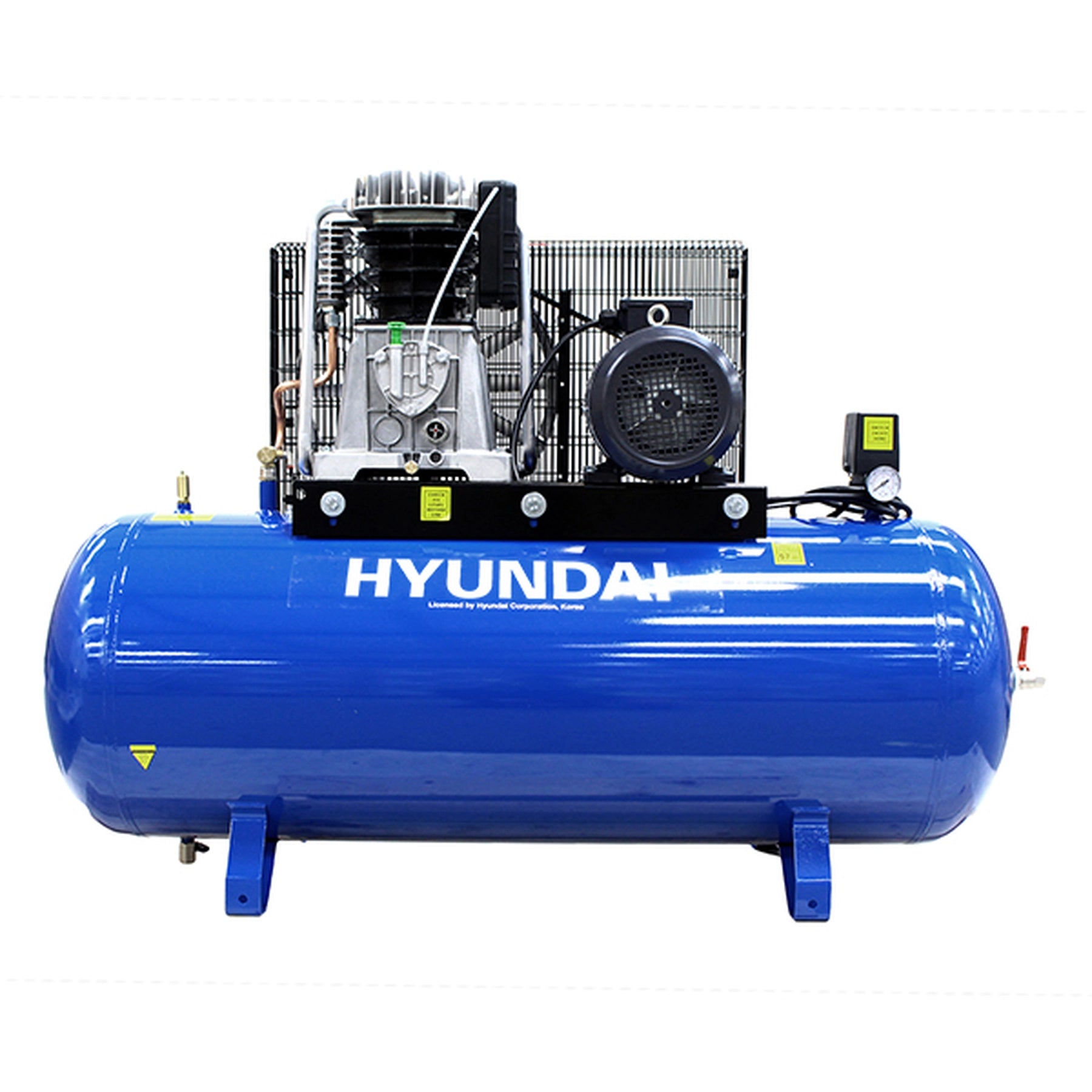

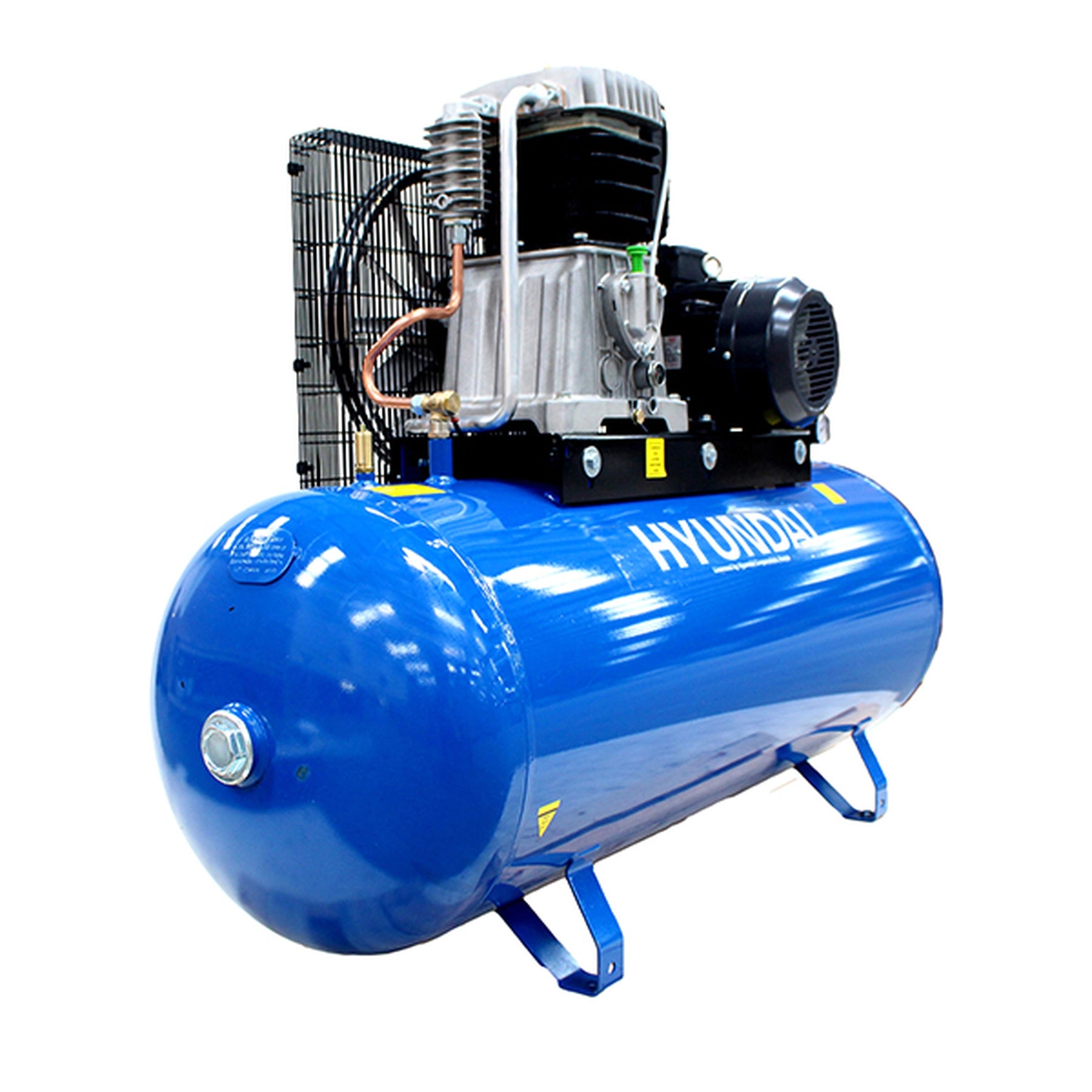

A heavy-duty industrial and professional three phase air compressor, built with the highest quality components to provide unbeatable performance.

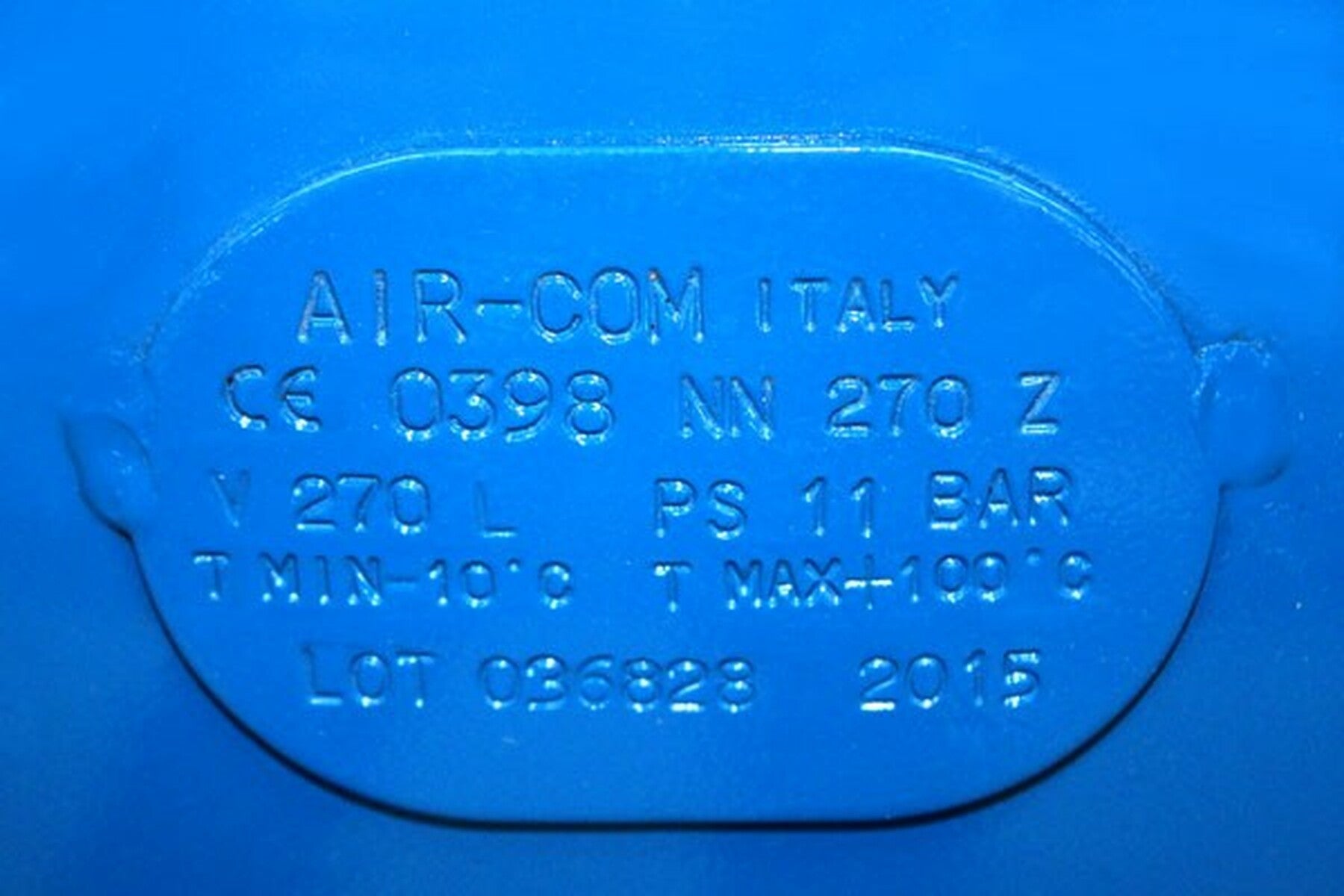

This air compressor benefits from the powerful 7.5hp engine and produces 29 CFM from its large 270 litre rolled steel air tank. The heavy duty motor has built-in overload protection, it’s fitted with aerodynamic flywheels for efficient cooling and the twin cylinder pump has a slow running, 3 phase motor, for lower noise levels and increased life expectancy. The cast iron cylinder block is designed to last and the air receiver is built to the latest European Standards 09/105 CE.

SKU: Z-HY-HY75270-3

  • £2,259.99
    Unit price per
Tax included.

Only 0 left!

Features:

  • Part of the Hyundai "Pro Series" air compressor range designed for professional users.
  • A belt-drive air compressor, it's powered by a 7.5hp engine.
  • Fitted with a large 270L rolled steel air tank, producing 29cfm.
  • A belt-driven air compressor, it's built to withstand the challenges of tough daily use.
  • Ideal for mechanics, workshop and industrial users who need a heavy-duty air compressor.

Technical Specification:

  • Model - HY75270-3
  • Fuel Type - Electric Hard Wired

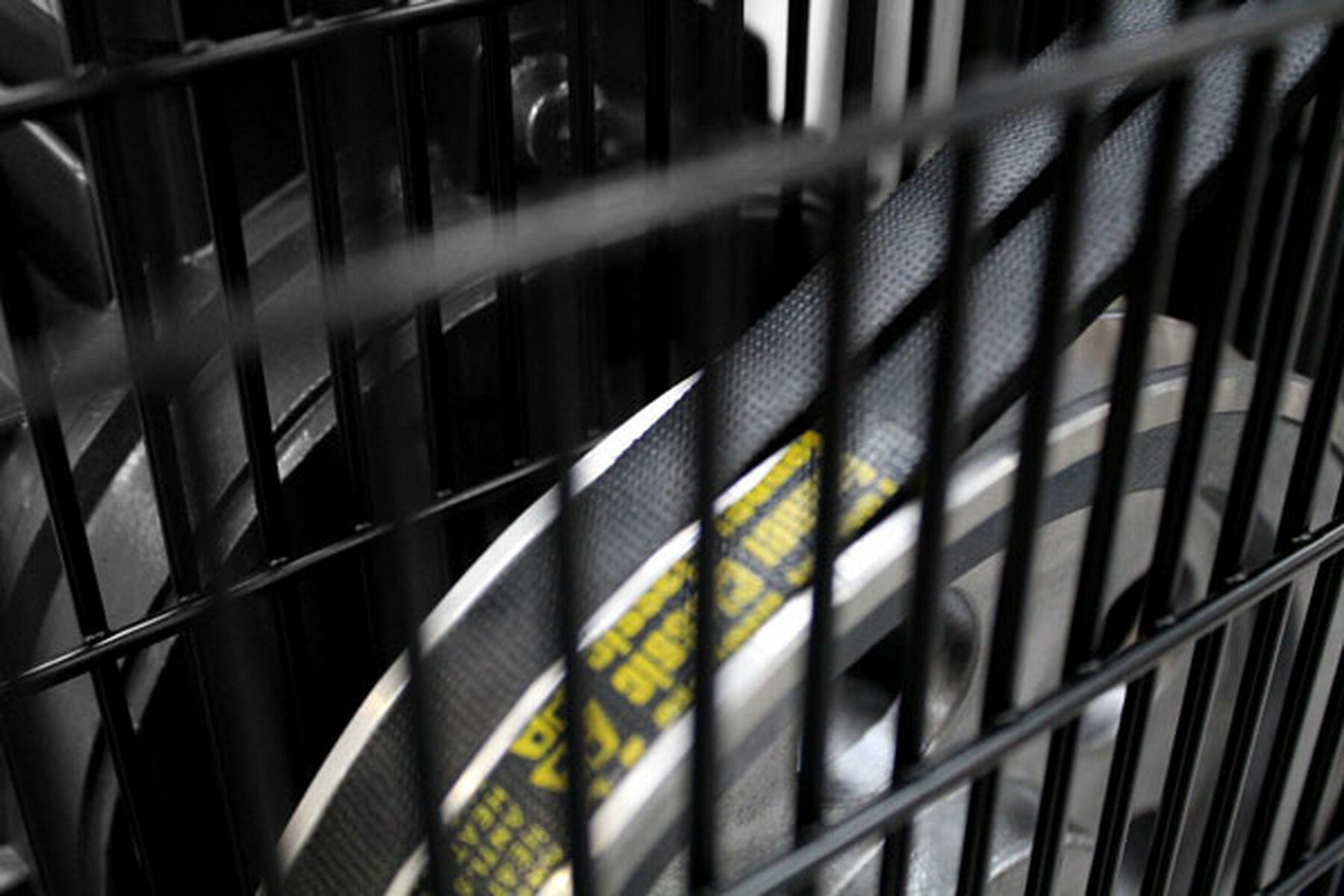

  • Drive Type - Belt Drive
  • Tank Capacity (L) - 270
  • Tank Material - Steel

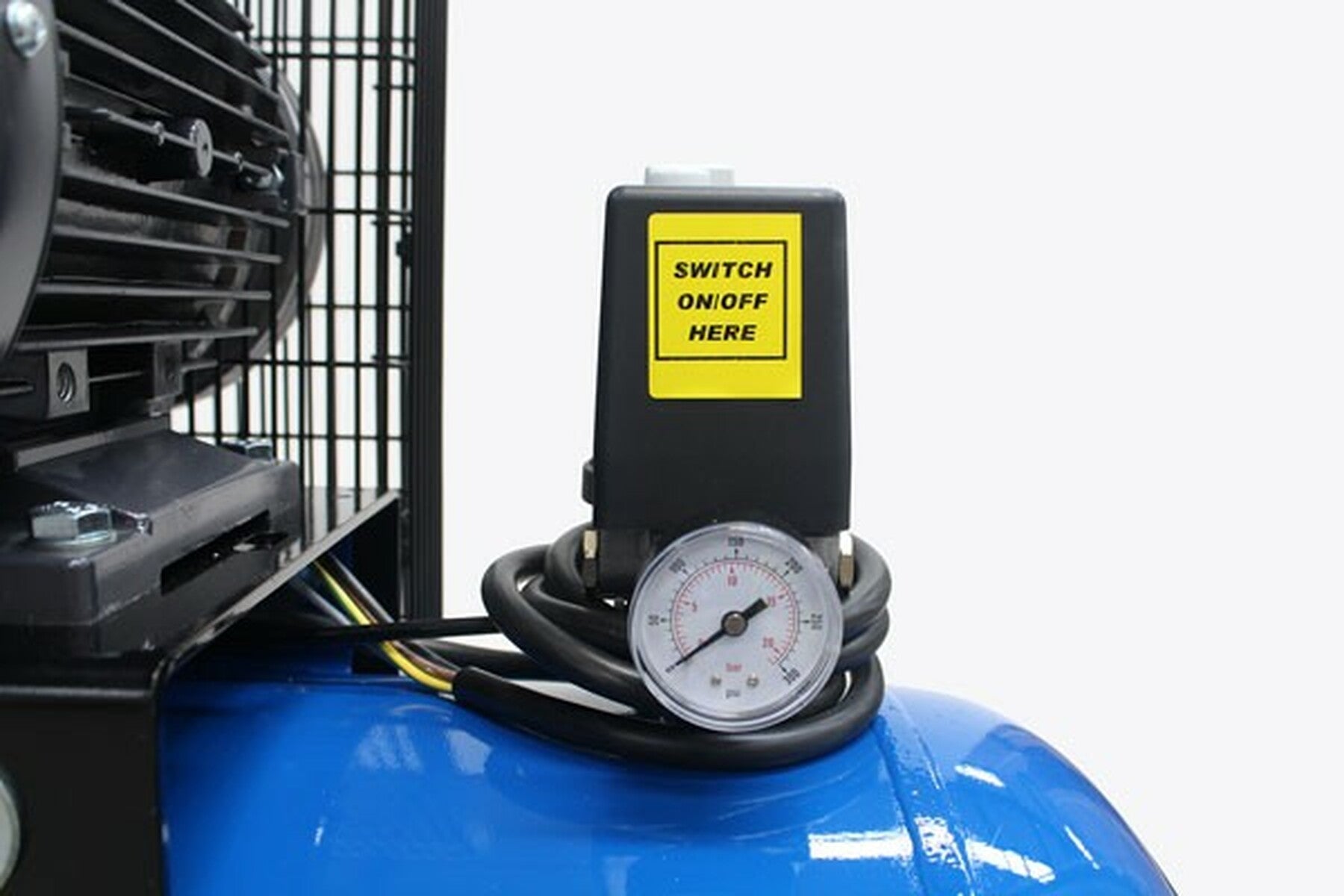

  • Cut-In Pressure (psi/bar) - 87/6
  • Cut-Out Pressure (psi/bar) - 120/8.3
  • Max Pressure (psi/bar) - 145/10
  • Air Flow FAD (L/min) - 595
  • Air Flow FAD (CFM) - 21
  • Air Displacement (L/min) - 821
  • Air Displacement (CFM) - 29

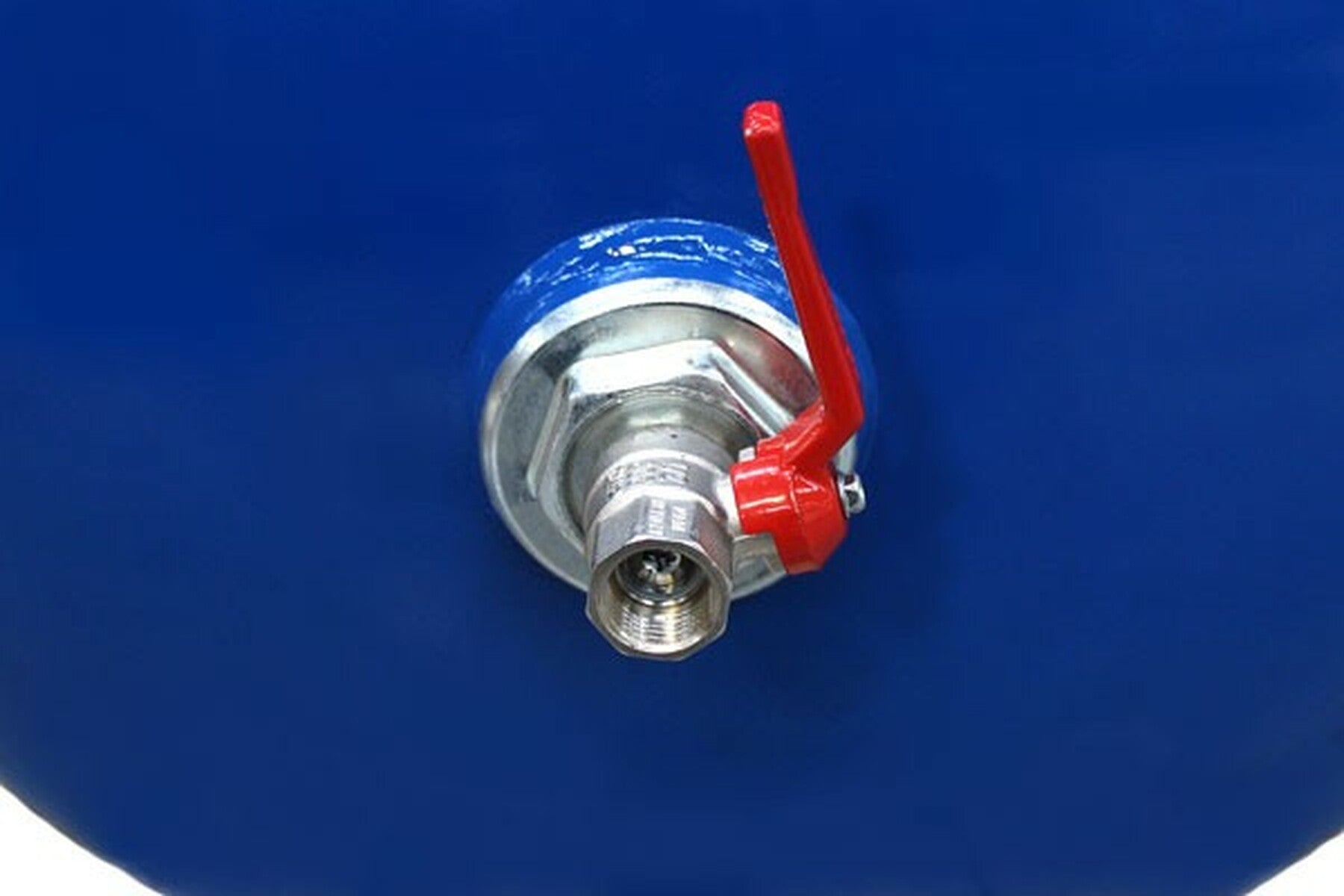

  • Air Outlet Connection - 1/2" BSP/Valve Tap
  • Outlet Pressure Regulation Type - Fixed
  • Phase - Three
  • Voltage - 400
  • Motor Power kW/hp - 5.6/7.5
  • Motor Type - Electric
  • Frequency (Hz) - 50
  • Net Weight (kg) - 150
  • Fully Assembled Dimensions (H x W x L) (mm) - 1040 x 500 x 1600
  • Product Type - Air Compressor
  • Warranty (years) - 2
  • Model EAN - 702785146101

SKU: Z-HY-HY75270-3

Barcode: 702785146101

MPN: HY75270-3

Google ID: Z-HY-HY75270-3
