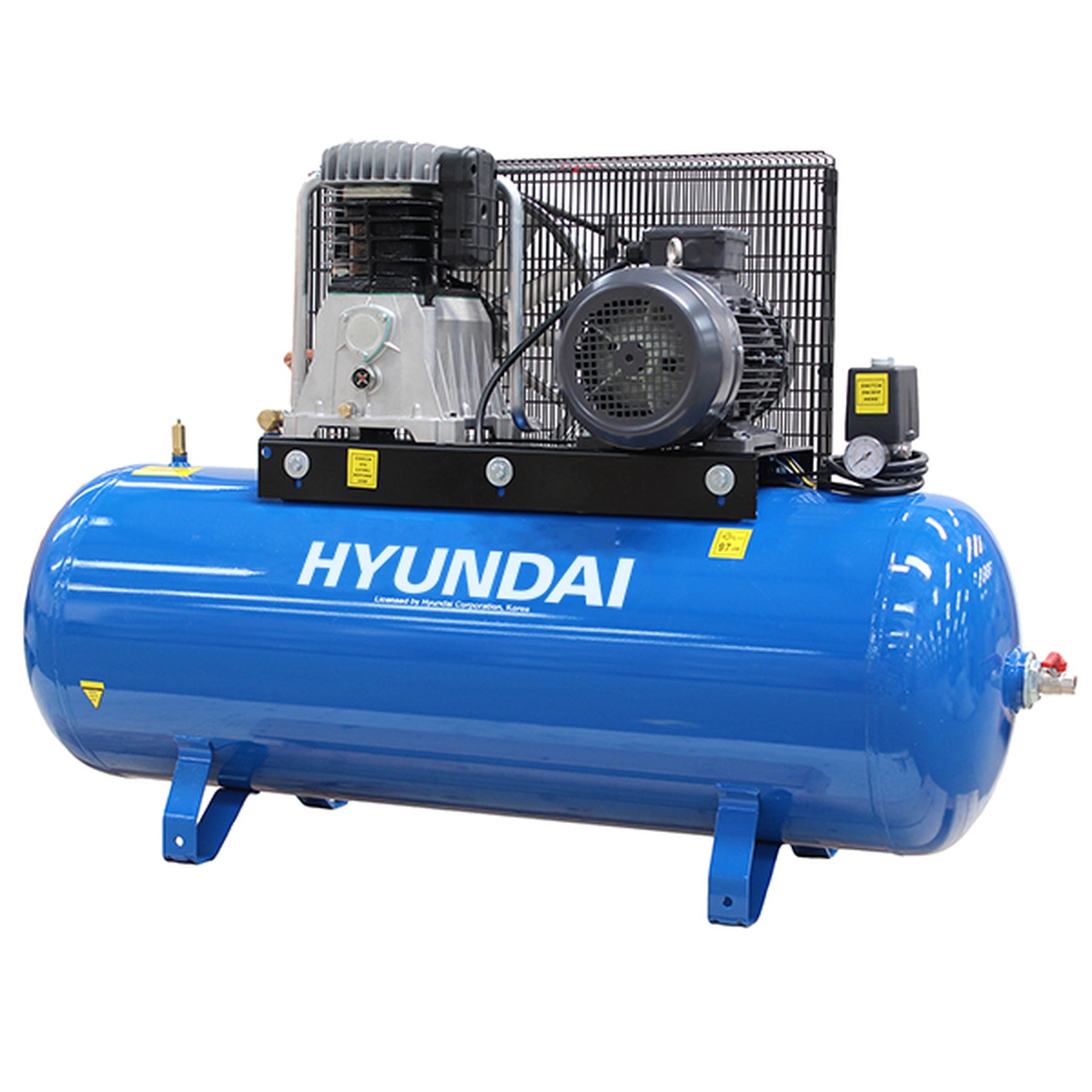

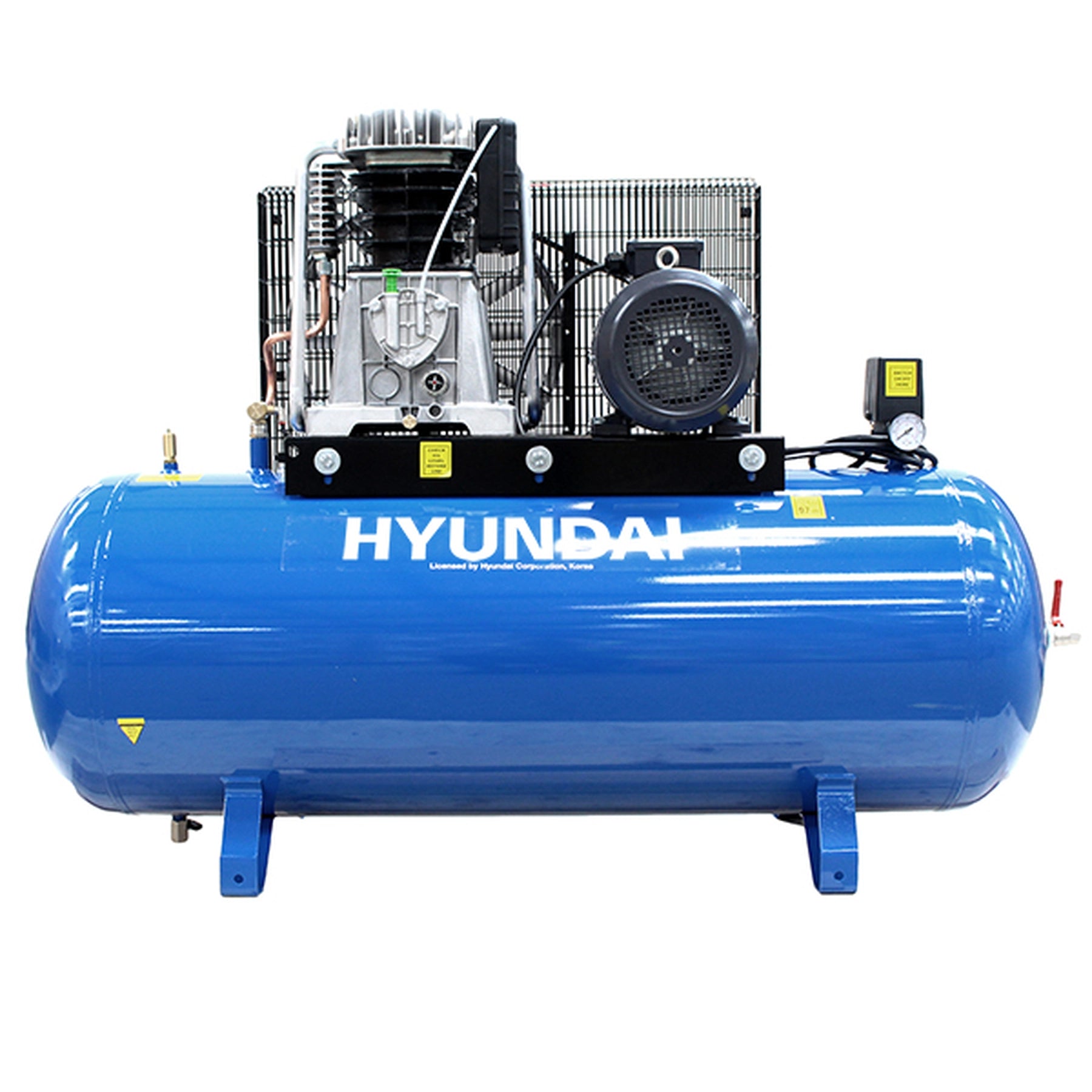

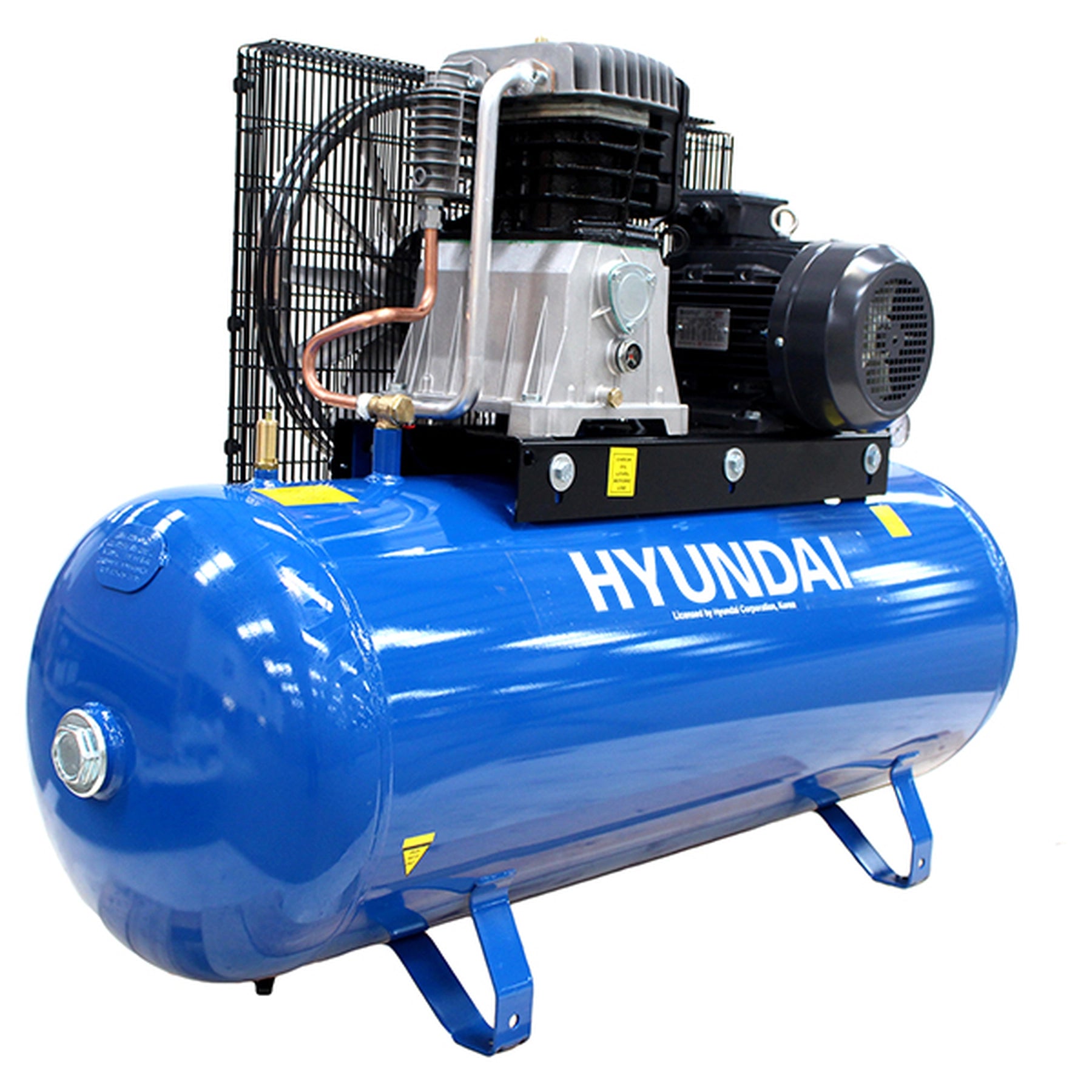

A heavy-duty industrial and professional three phase air compressor, built with the highest quality components to provide unbeatable performance.

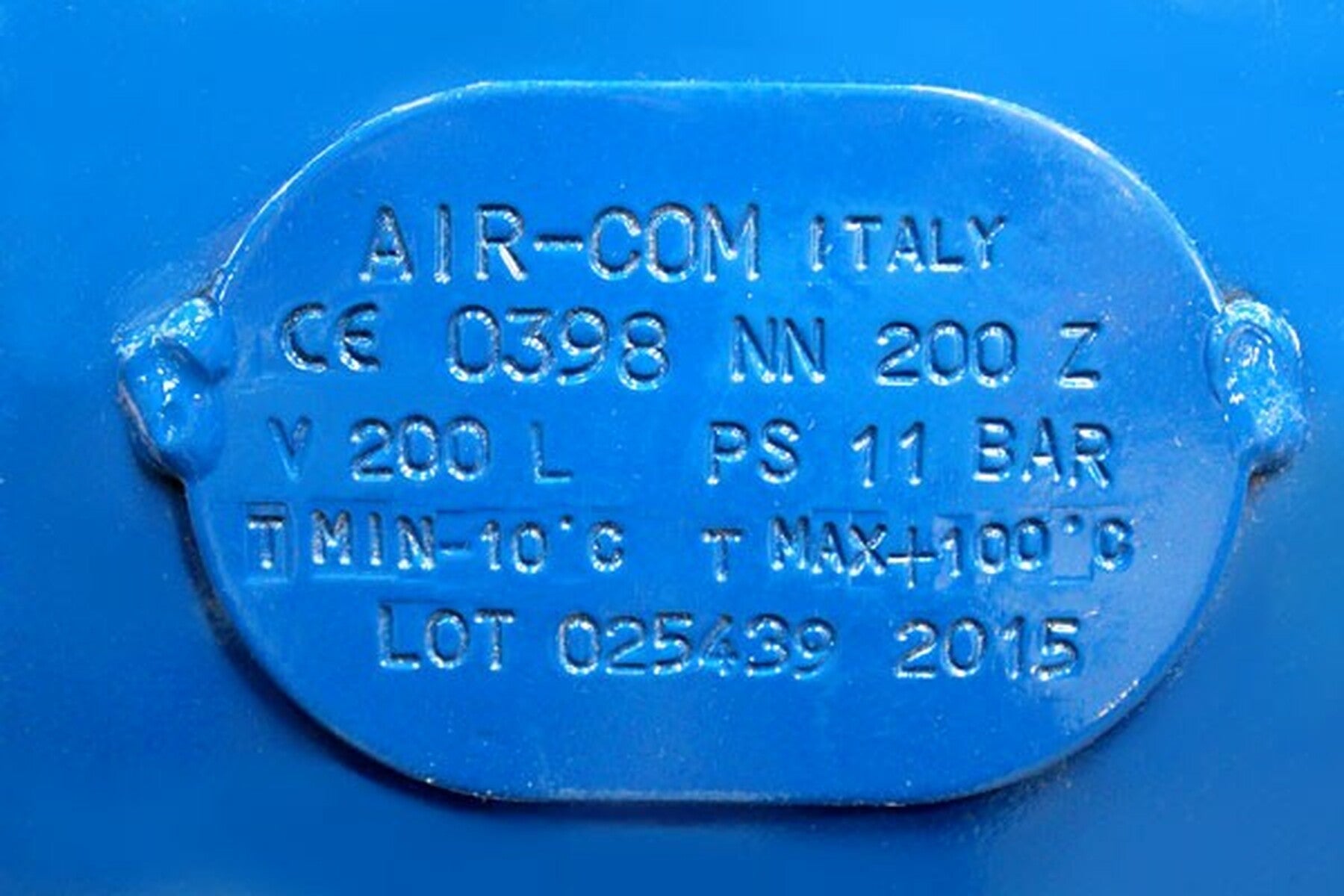

The heavy-duty motor has built-in overload protection, it’s fitted with aerodynamic flywheels for efficient cooling and the twin cylinder pumps has a slow running speed for lower noise levels and increased life expectancy. The cast iron cylinder block is designed to last and the air receiver is built to the latest European Standards 09/105 CE. Powered by a 3-phase 5.5hp motor, the HY55200-3 can produce 21 CFM and has a 200 litre air tank. For professional users who have demanding air-powered tools, the HY55200-3 is the perfect machine for the job.
Features:
Powered by a 5.5hp motor.
Equipped with a large 200L tank.
Products a maximum output of 16.5CFM.

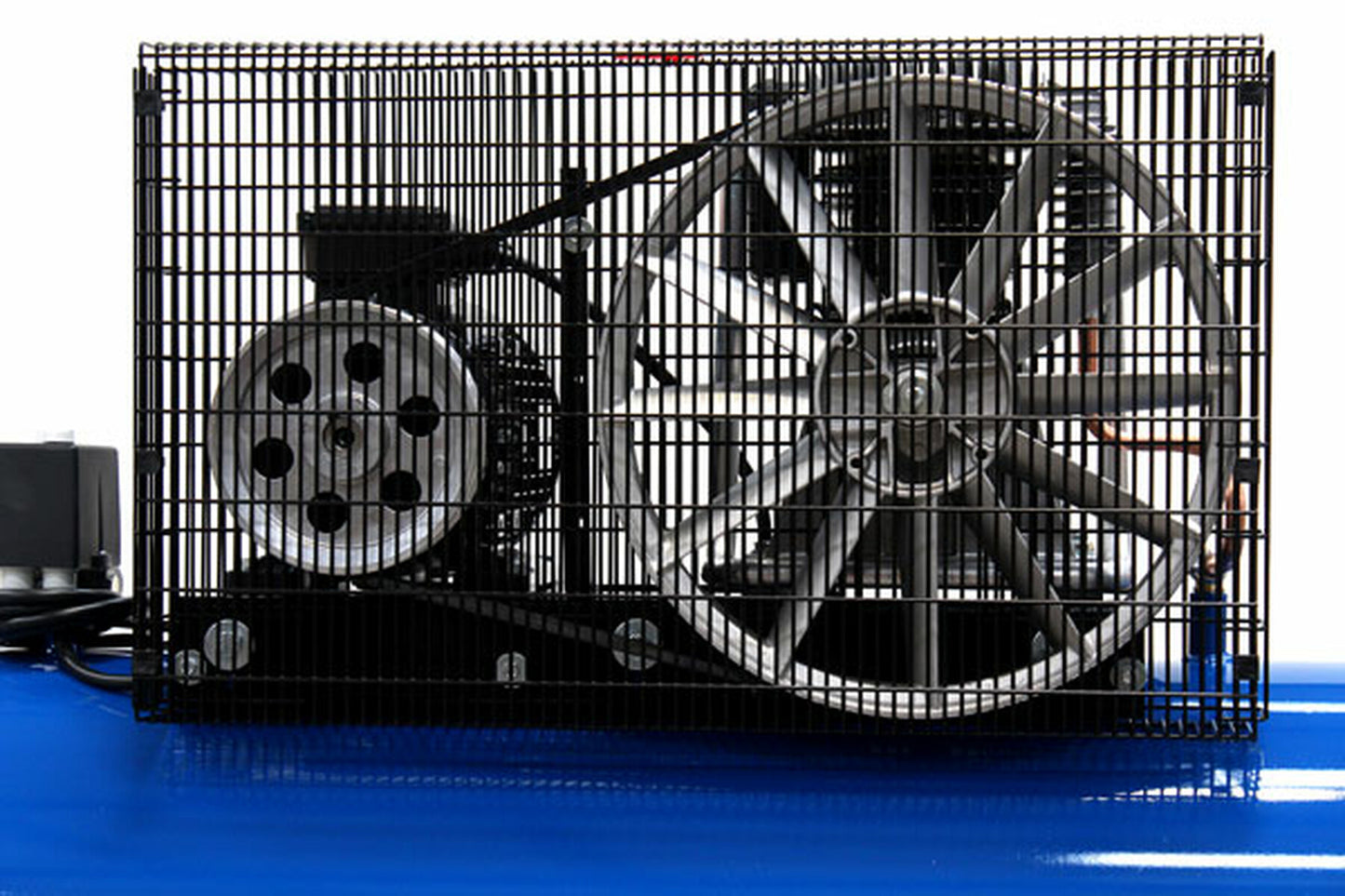

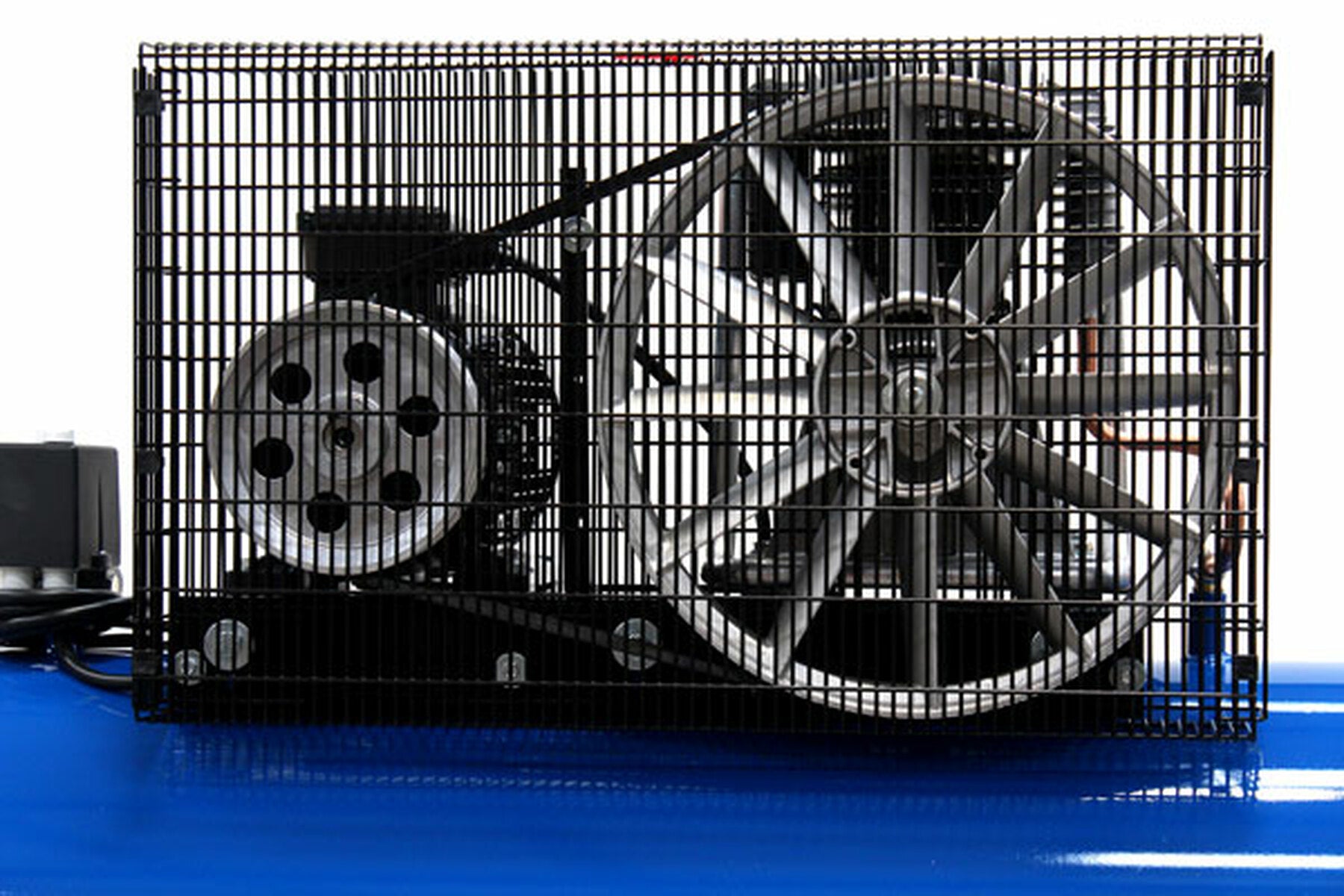

Aerodynamic flywheels for efficient cooling
Technical Specification:
Model - HY55200-3
Fuel Type - Electric Hard Wired

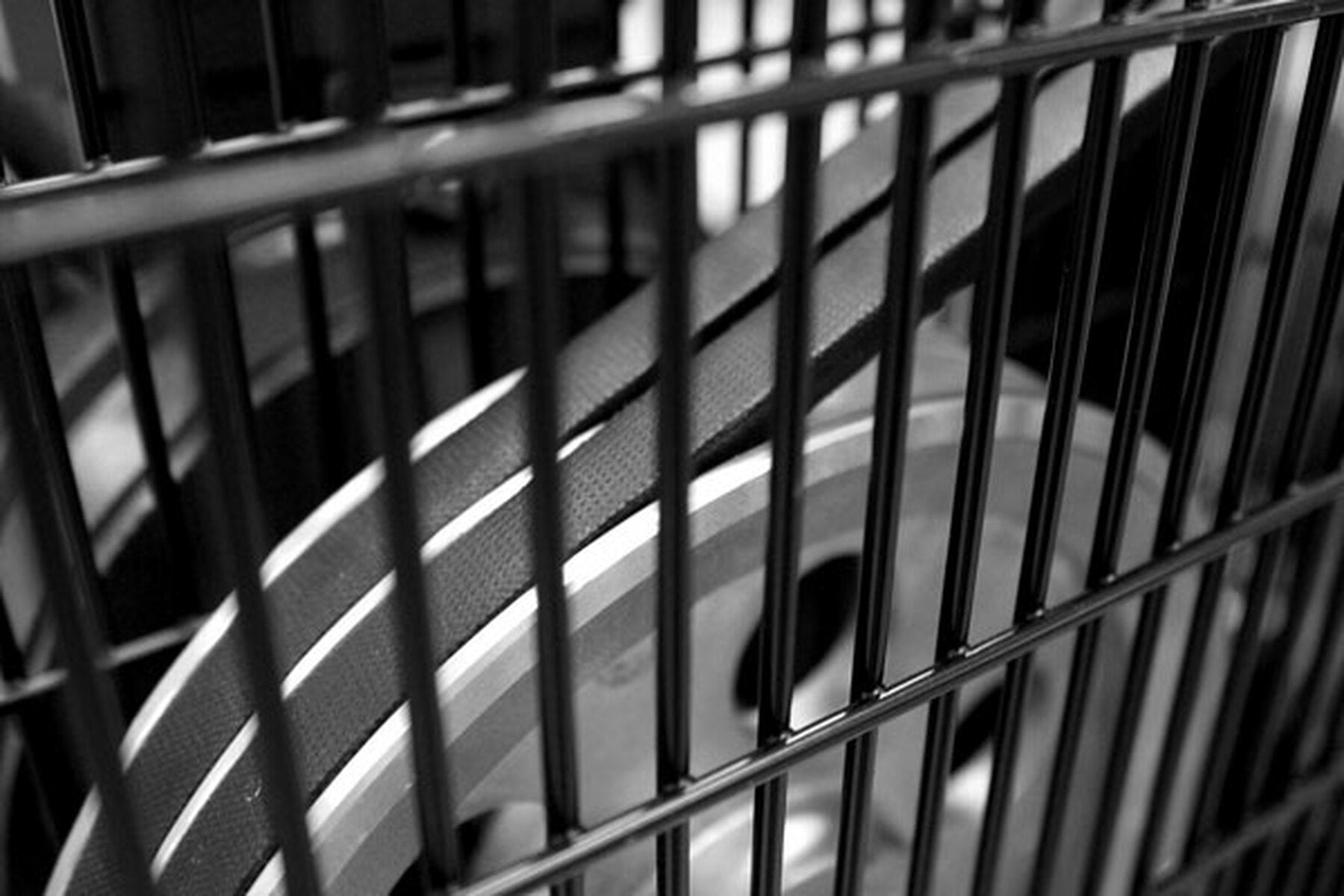

Drive Type - Belt Drive
Tank Capacity (L) - 200
Tank Material - Steel
Cut-In Pressure (psi/bar) - 87/6
Cut-Out Pressure (psi/bar) - 120/8.3
Max Pressure (psi/bar) - 145/10
Air Flow FAD (L/min) - 476
Air Flow FAD (CFM) - 16.5
Air Displacement (L/min) - 651
Air Displacement (CFM) - 21

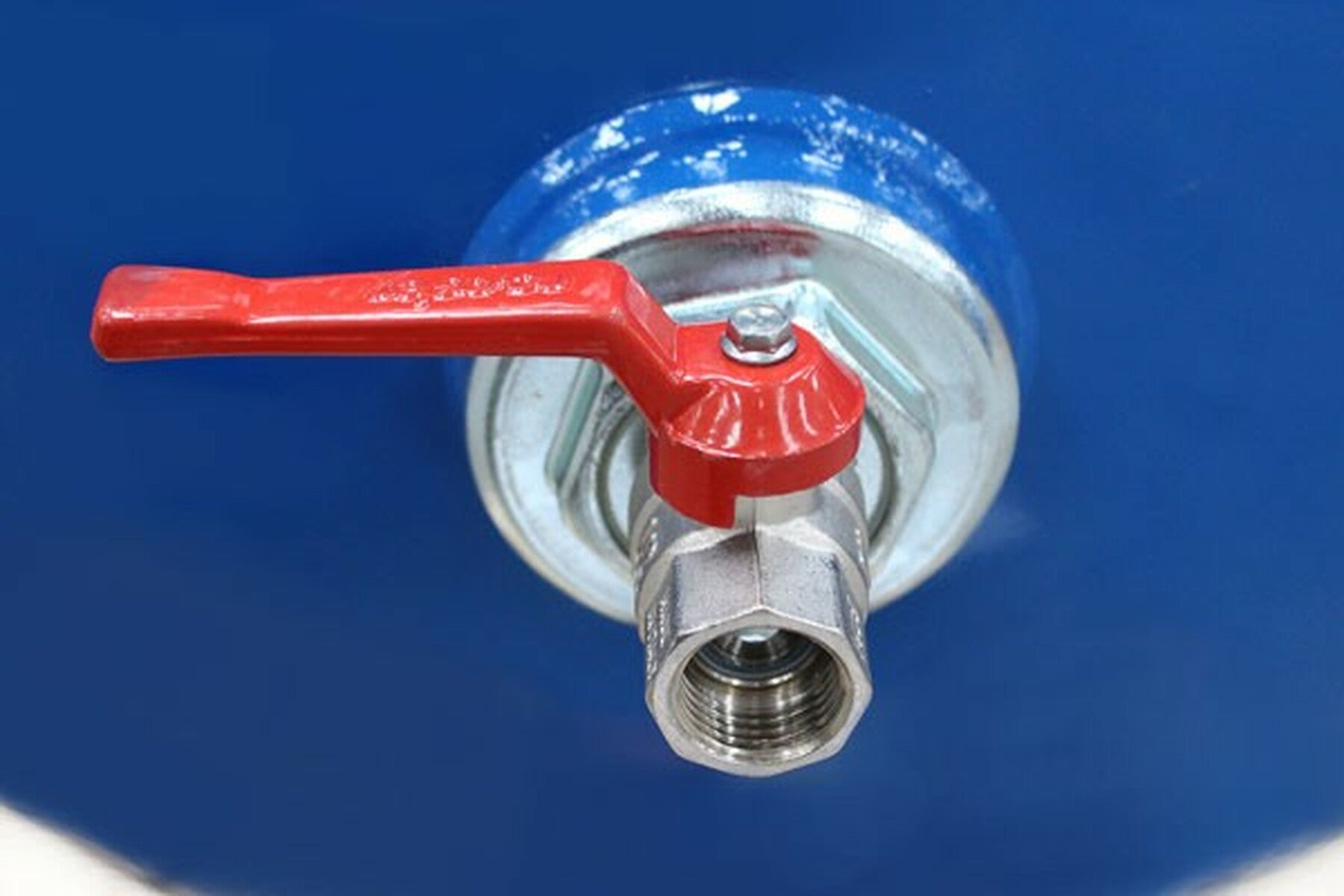

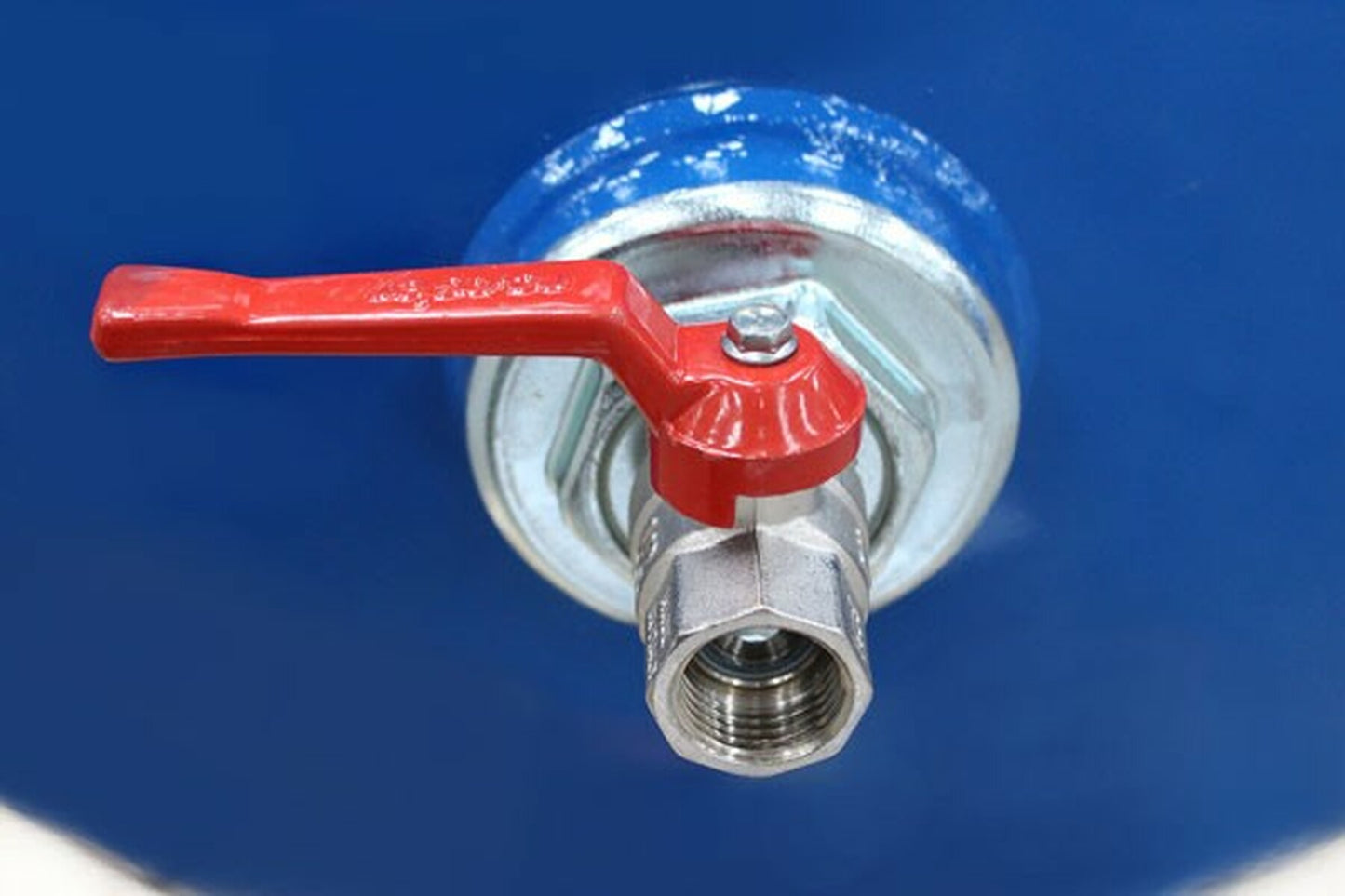

Air Outlet Connection - 1/2" BSP/Valve Tap
Outlet Pressure Regulation Type - Fixed
Phase - Three
Voltage - 400
Motor Power kW/hp - 5.5/4
Motor Type - Electric
Frequency (Hz) - 50
Fully Assembled Dimensions (H x W x L) (mm) - 940 x 480 x 1520
