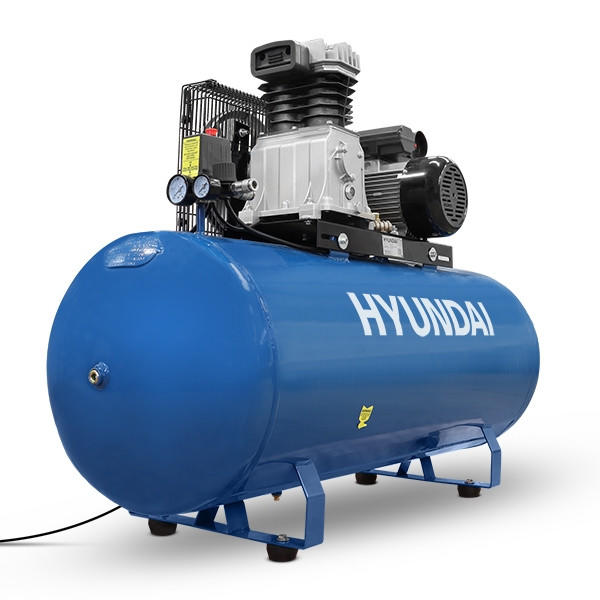

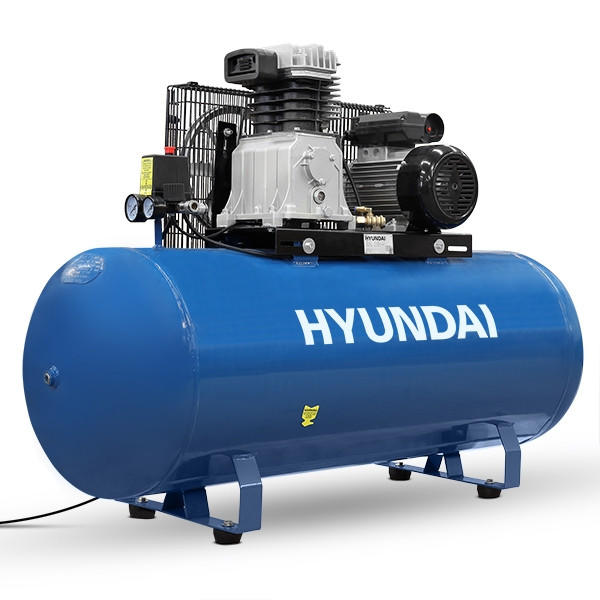

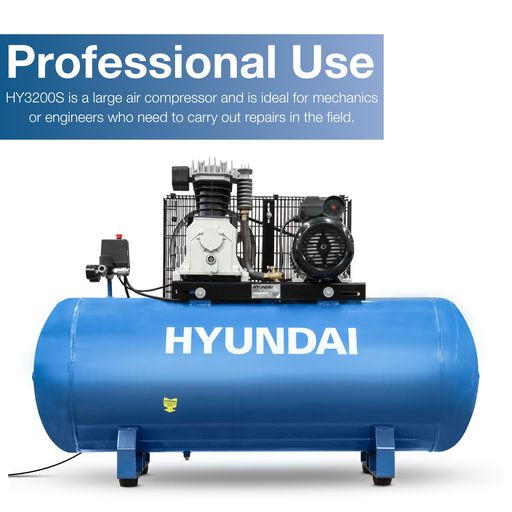

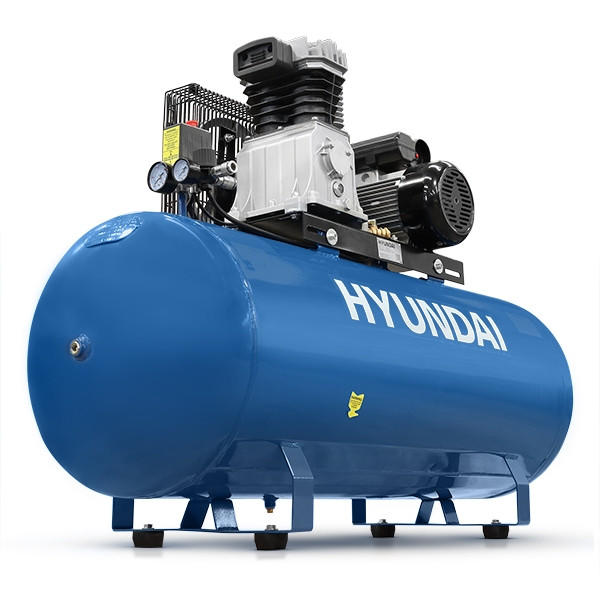

Hyundai HY3200SX Electric Air Compressor 200L

Features:

• HY3200SX air compressor is designed for commercial and professional workshop use.

• A belt-drive air compressor, powered by an efficient 230v 3hp electric motor.

• The large 200L rolled steel air tank provides the capacity for powering you through the most demanding of jobs.

• Single-phase air compressor, with a displacement of 14cfm and a maximum pressure of 145psi / 10 bar.

• Ideal for workshop use.

• Covered by a Hyundai 2-year warranty.

• Full spares are available to maintain your air compressor for years to come.


Technical Specification:

• Model - HY3200SX

• Start Method - Switch

• Fuel/Power Source - Electric

• Cable Length (m) - 1.4

• Stationary / Wheeled - Stationary

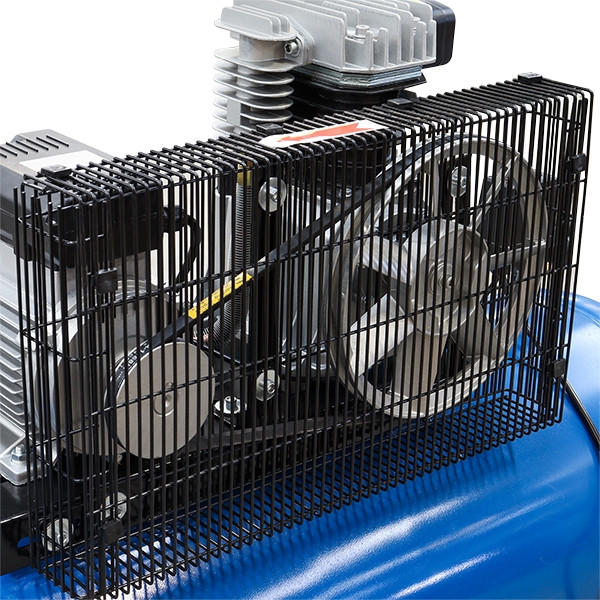

• Drive Type - Belt Drive

• Tank Capacity (L) - 200

• Tank Material - Steel

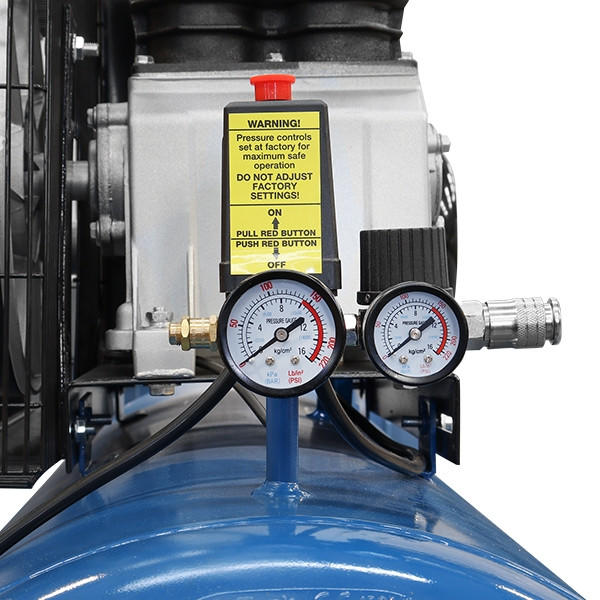

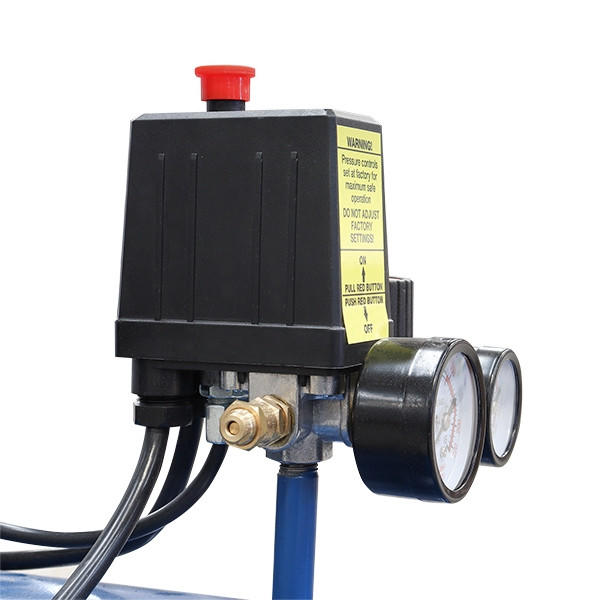

• Cut-In Pressure (psi/bar) - 116/8

• Cut-Out Pressure (psi/bar) - 145/10

• Discharge Pressure (psi/bar) - 145/10

• Max Pressure (psi/bar) - 145/10

• Air Flow FAD (L/min) - 300

• Air Flow FAD (CFM) - 11

• Air Displacement (L/min) - 396

• Air Displacement (CFM) - 14

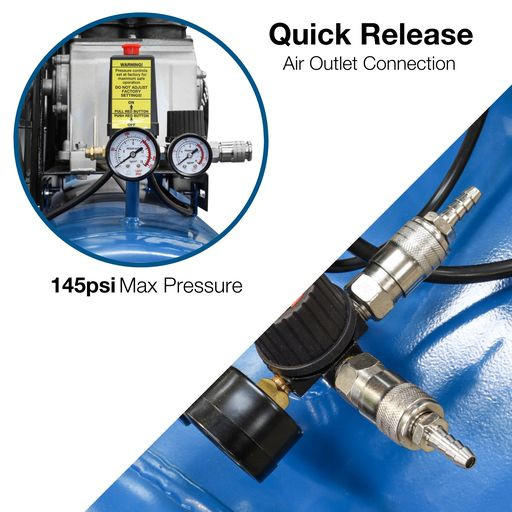

• Air Outlet Connection - Euro Quick Release

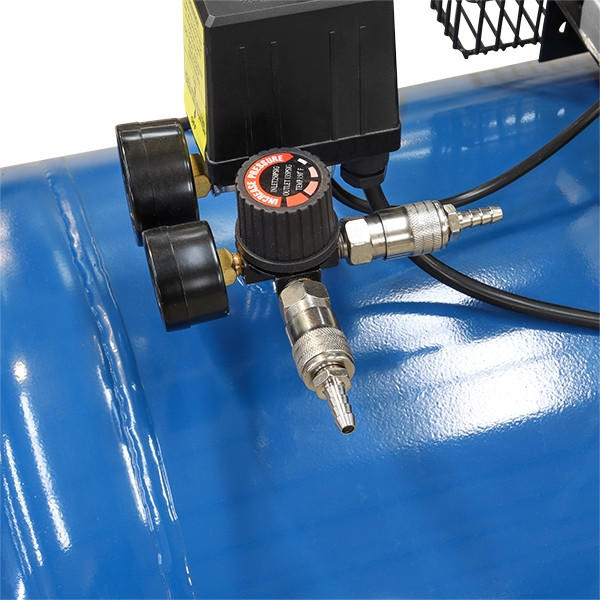

• Outlet Pressure Regulation Type - Adjustable

• Phase - Single

• Voltage - 230

• Rated Power (w) - 2200

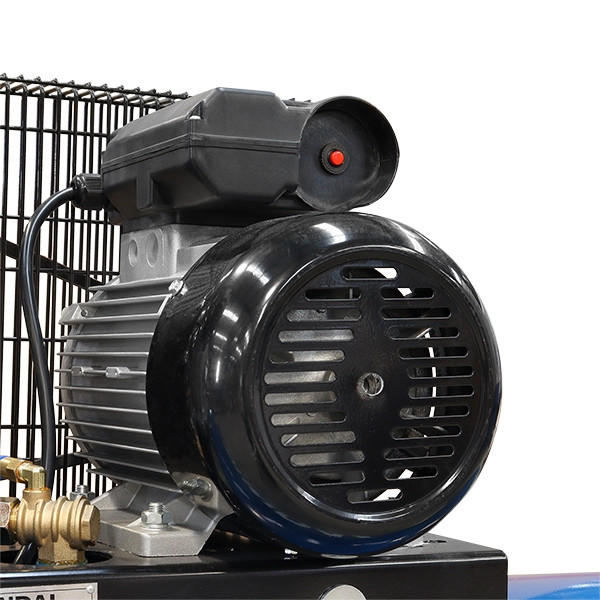

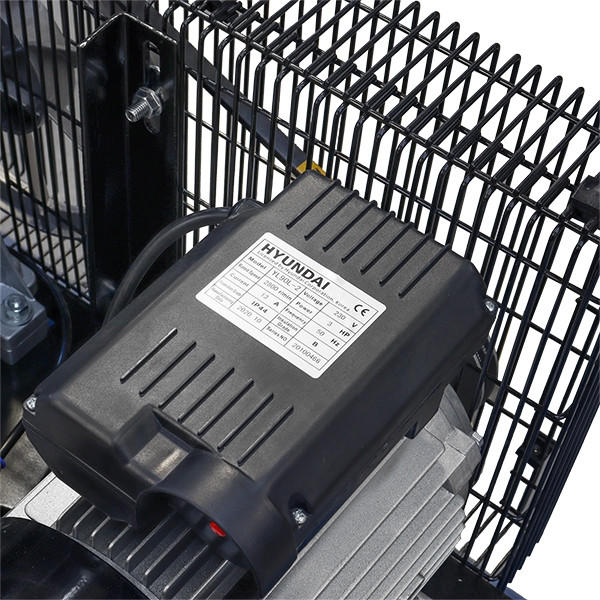

• Motor Power kW/hp - 2.2/3

• Pump (RPM) - 1050

• Motor Speed (RPM) - 2850

• Frequency (Hz) - 50

• Noise Level @ 7m (dB) - 75

• Gross Weight (kg) - 115

• Net Weight (kg) - 105

• Fully Assembled Dimensions (H x W x L) (mm) - 980 x 500 x 1310

• Packaged Dimensions (H x W x L) (mm) - 1020 x 520 x 1360

• Product Type - Air Compressor

• Warranty (years) - 2 (domestic), 1 (commercial)

• Model EAN - 747150287775

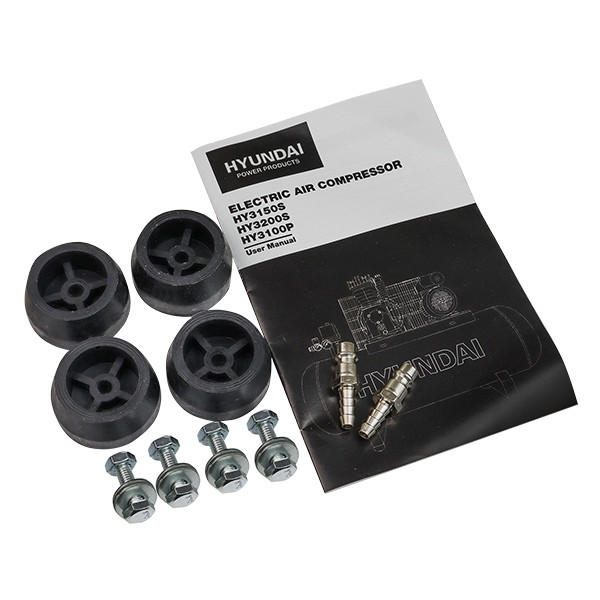

• In The Box - HY3200S Electric Air Compressor, User Manual
