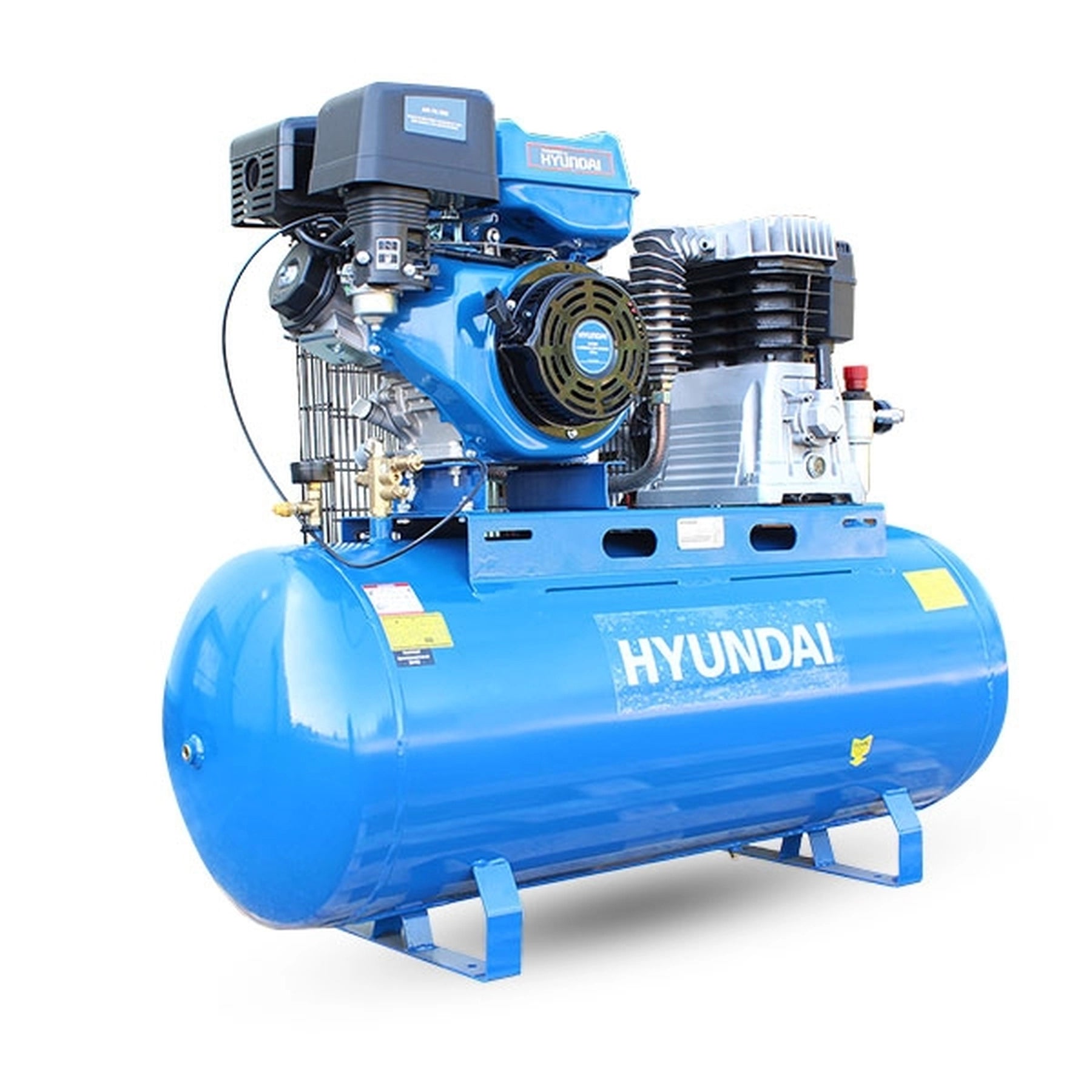

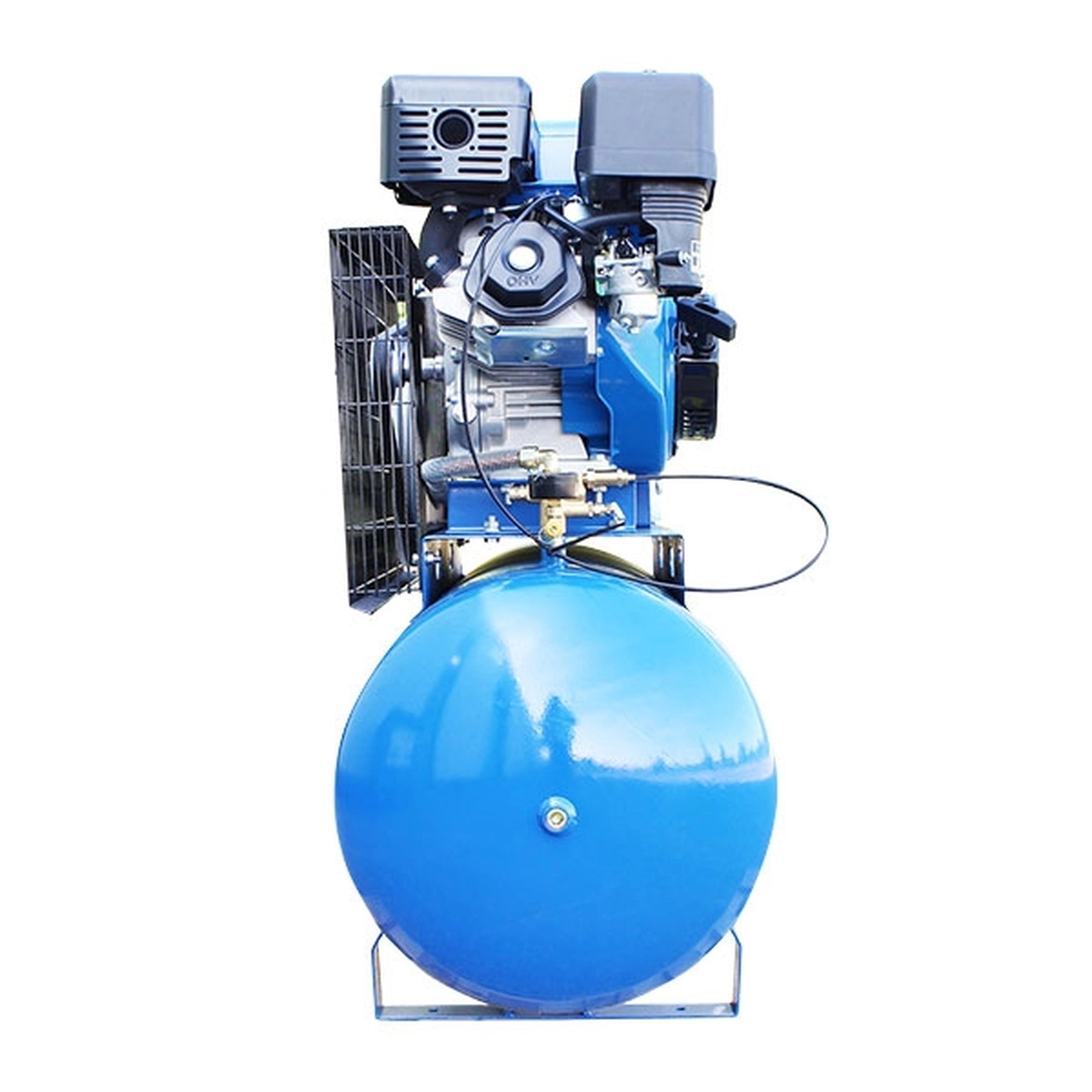

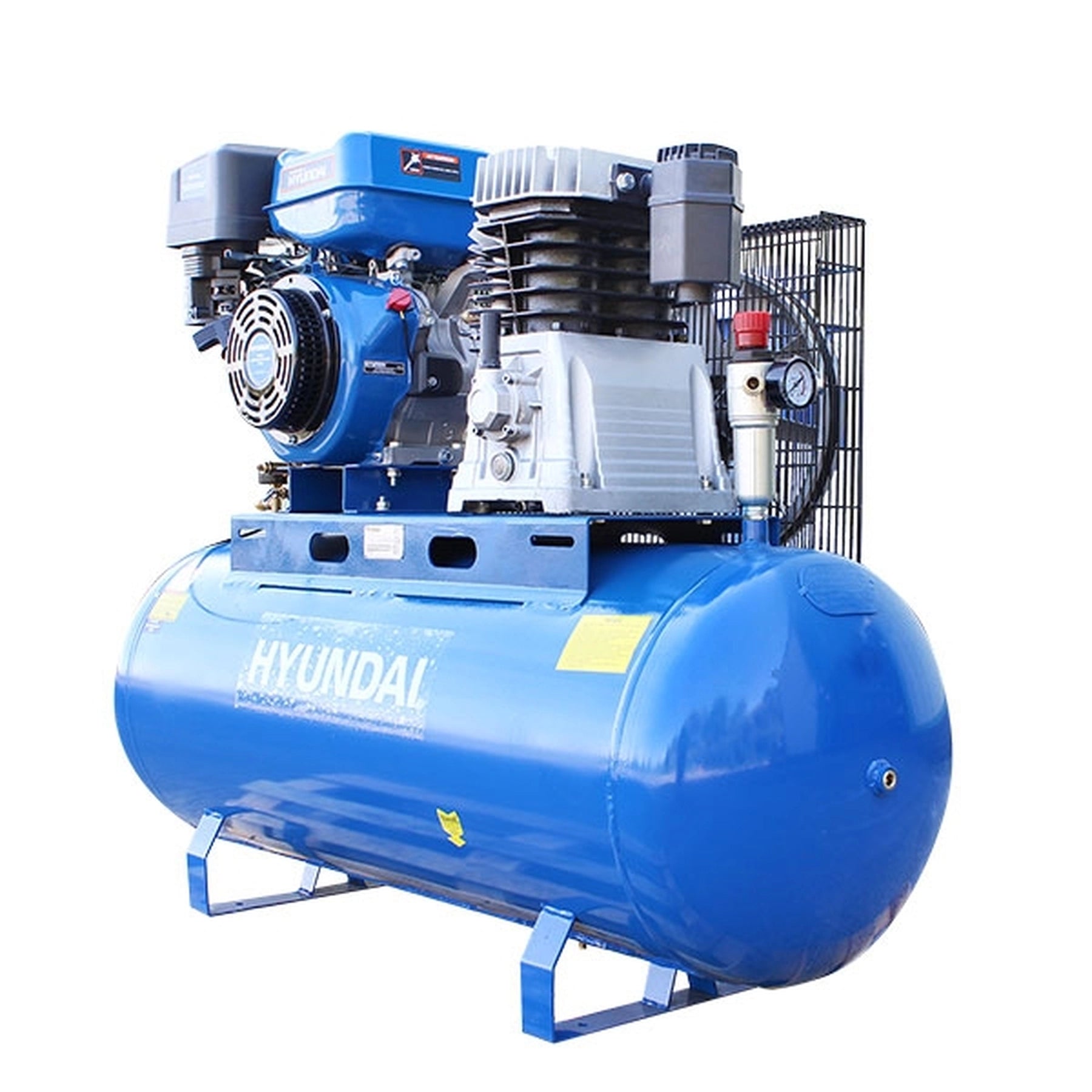

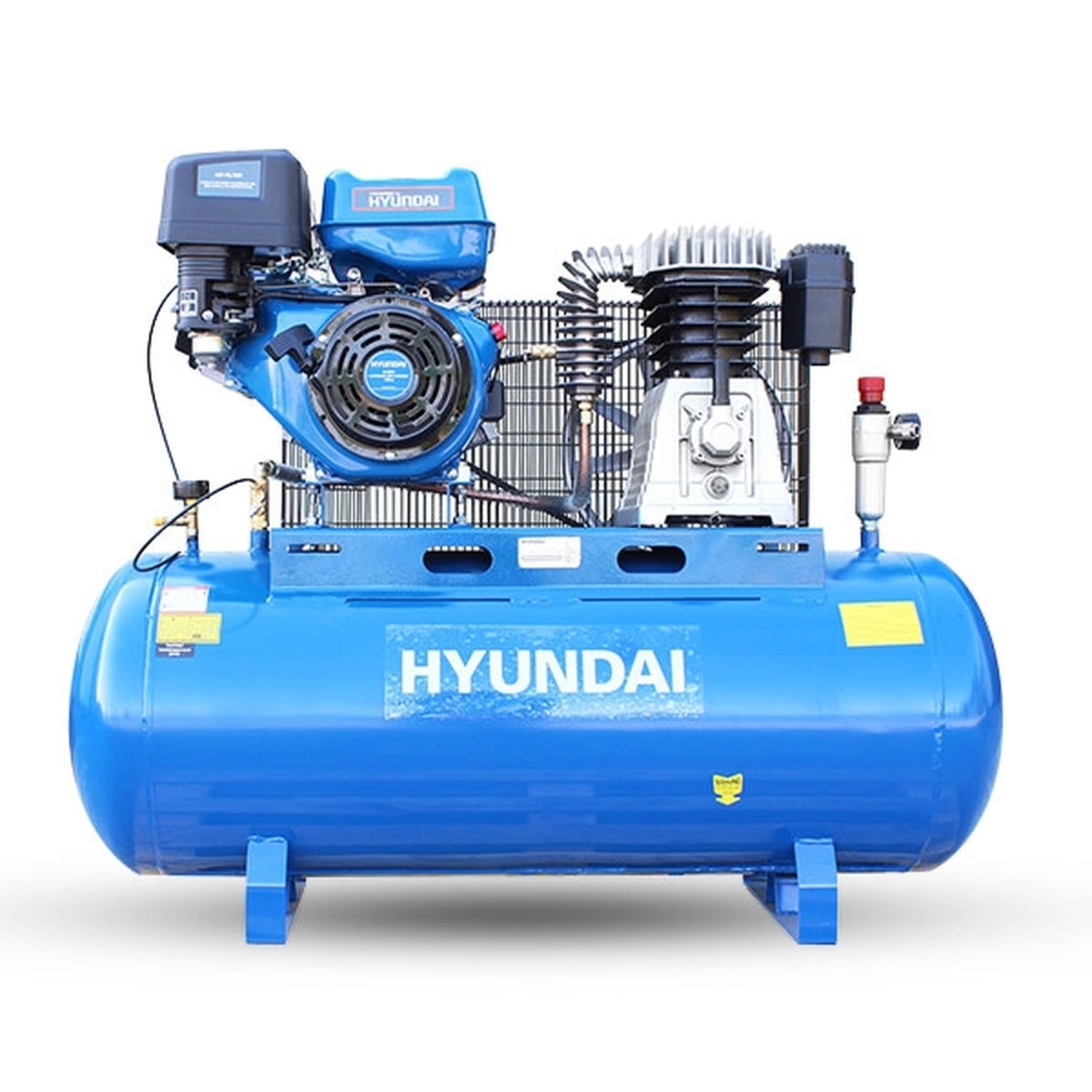

Hyundai HY140200PES Petrol Air Compressor 200L
A powerful 14hp twin cylinder cast iron belt drive air compressor, designed for professional workshops, mobile tyre fitting vehicles and trade applications.

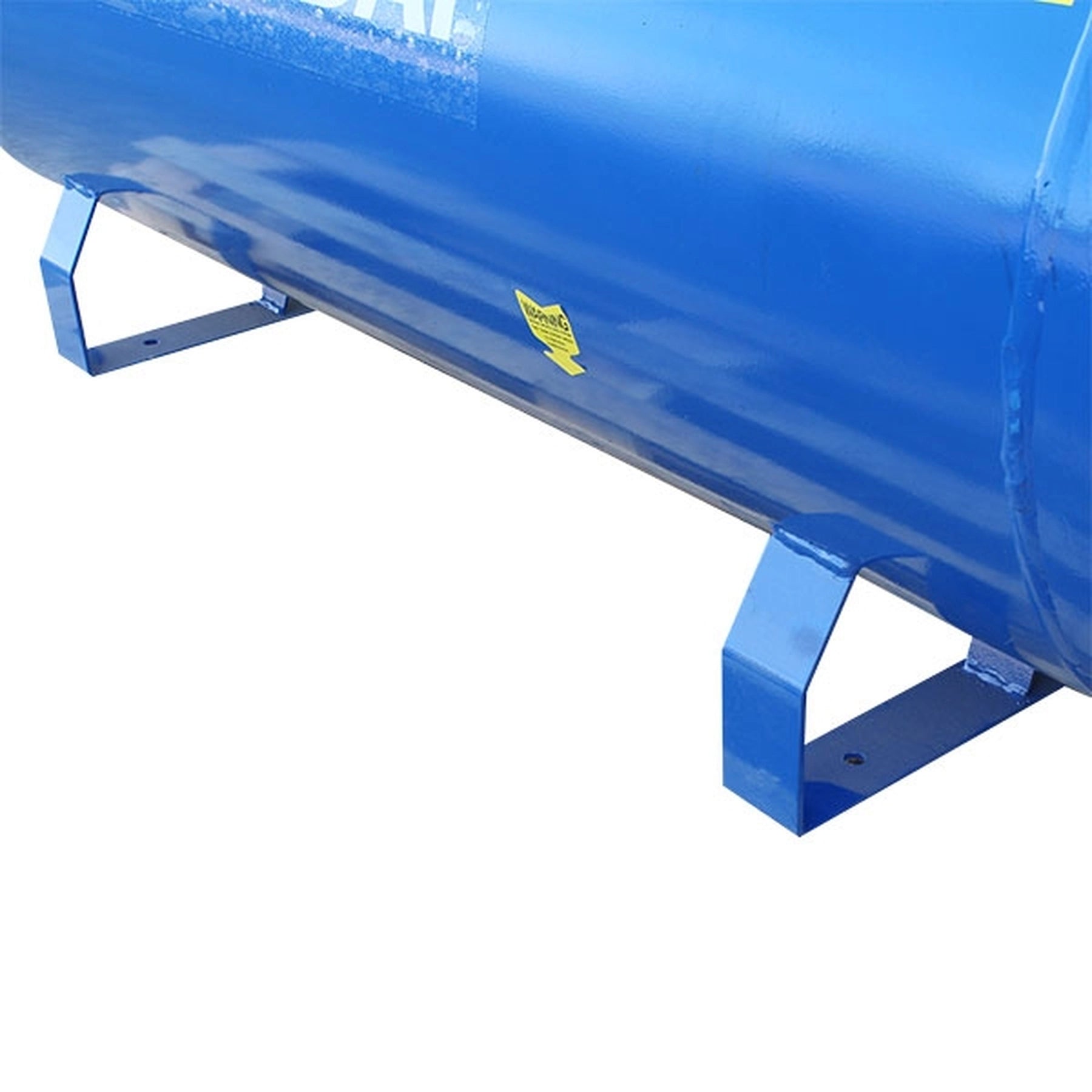

Hyundai HY140200PES Air Compressor is ideal for powering heavy duty commercial vehicle 1” drive impact guns, inflating super single commercial vehicle tyres and general heavy mobile use. Weighing 145kg the HY140200PES features 4 robust feet that can also be mounted to a vehicle for maximum transportability. The twin-cylinder slow running pump with aluminium cylinder head and cast iron liners for improved resistance to wear. Powered by the electric key start 14hp IC420 Hyundai petrol 4-stroke engine makes the HY140200PES petrol air compressor ideal for mobile commercial tyre fitting.

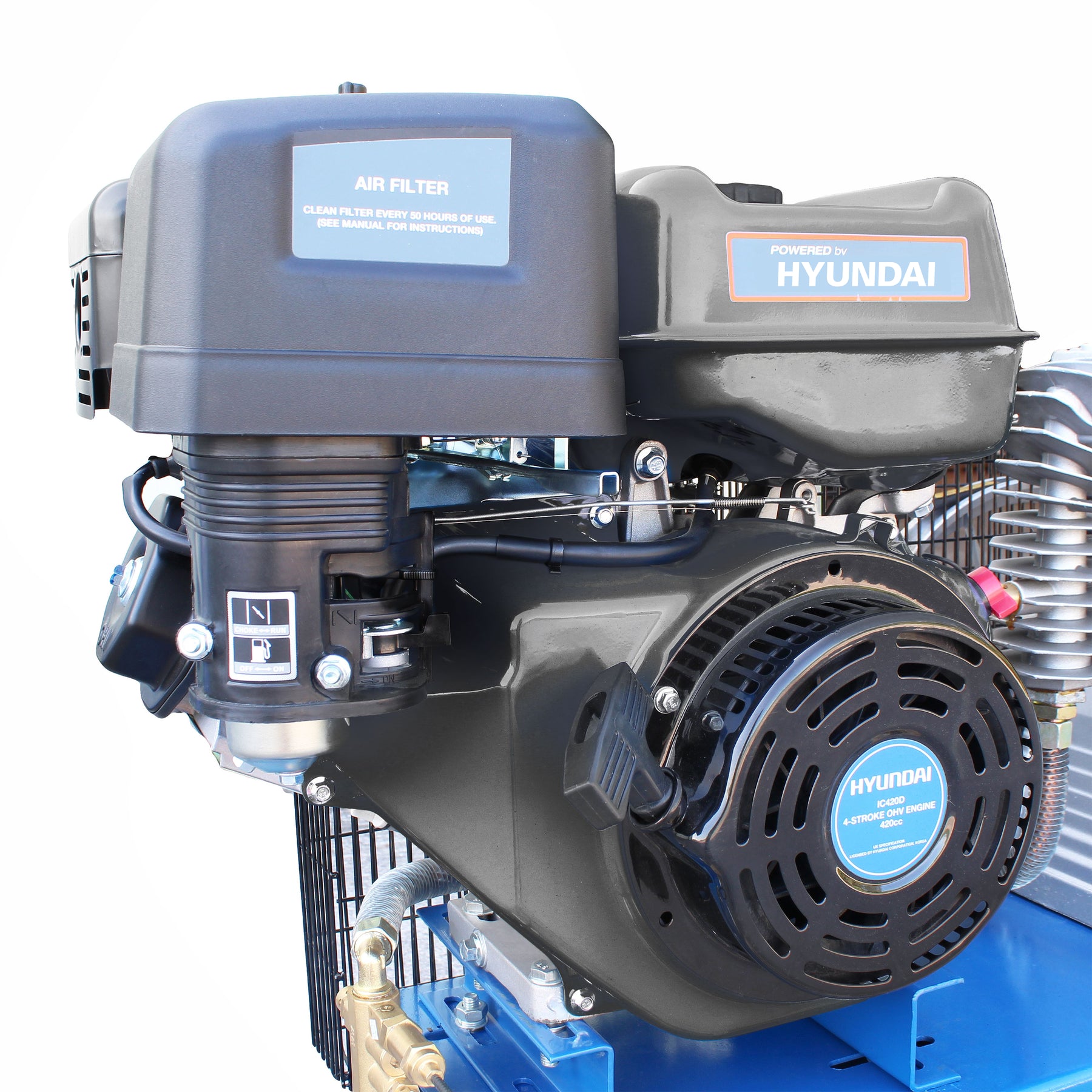

Powerful Engine: Powered by the Hyundai IC420 14hp electric start IC420 petrol engine.

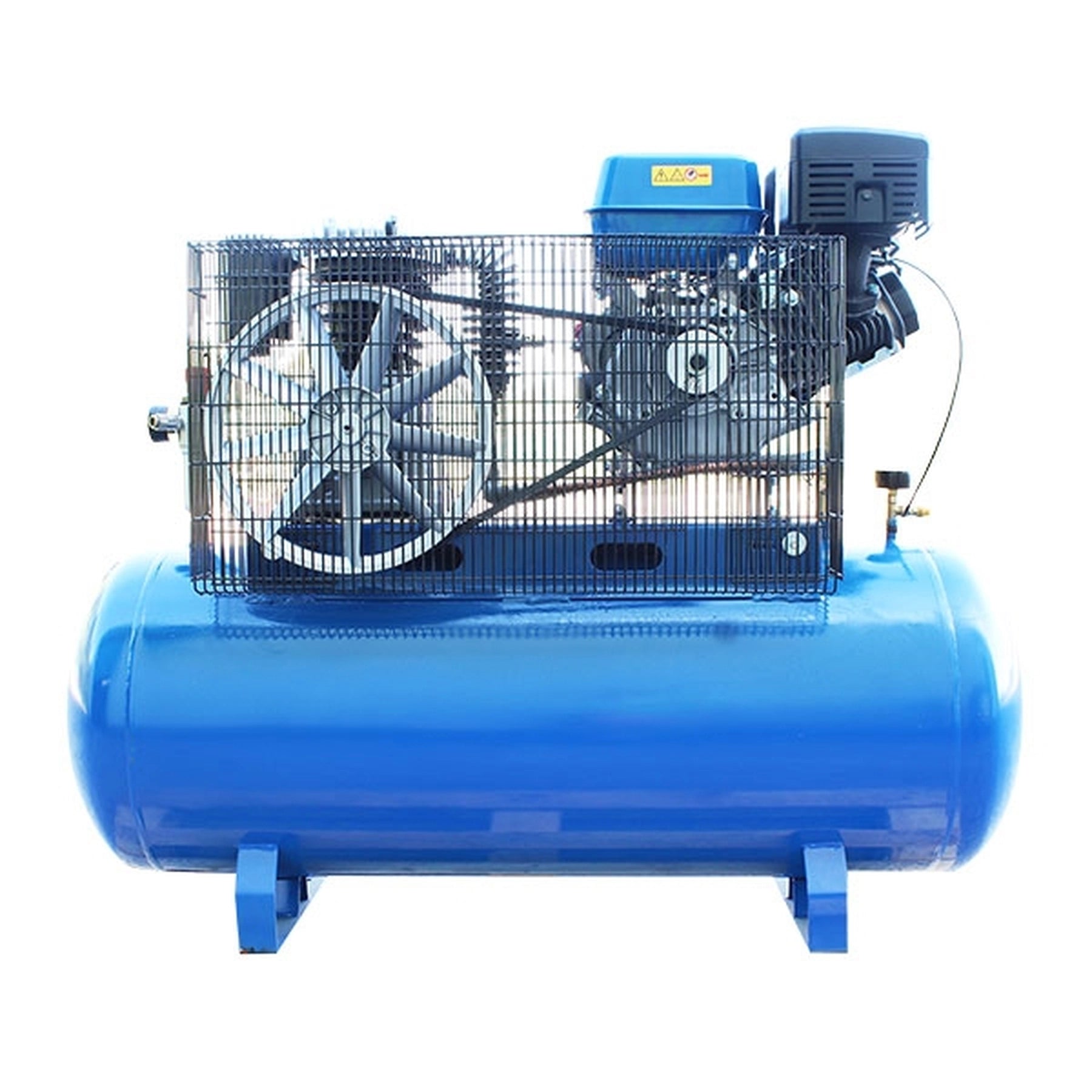

Twin-cylinder belt drive: Slow running pump provides an air displacement of 29CFM / 800 litres per minute.
Large Tank: Large 200-litre tank capacity.
Quick-release: Fitted with Euro quick release connectors.
- Ideal for a professional mobile workshop and commercial garage use.
Extensive Warranty: Covered by Hyundai 2 year warranty.
Full spares are available: to maintain your air compressor for years to come.
- Model - HY140200PES
- Start Method - Electric or Recoil
- Fuel Type - Petrol
- Drive Type - Belt Drive
- Stationary / Wheeled - Stationary
- Tank Capacity (L) - 200
- Tank Material - Rolled Steel
- Cut-In Pressure (psi/bar) - 116/8
- Cut-Out Pressure (psi/bar) - 116/8
- Discharge Pressure (psi/bar) - 116/8
- Max Pressure (psi/bar) - 145/10
- Air Flow FAD (L/min) - 600
- Air Flow FAD (CFM) - 21
- Air Displacement (L/min) - 800
- Air Displacement (CFM) - 29
- Air Outlet Connection - 1/2" BSP/2 x Euro Quick Release

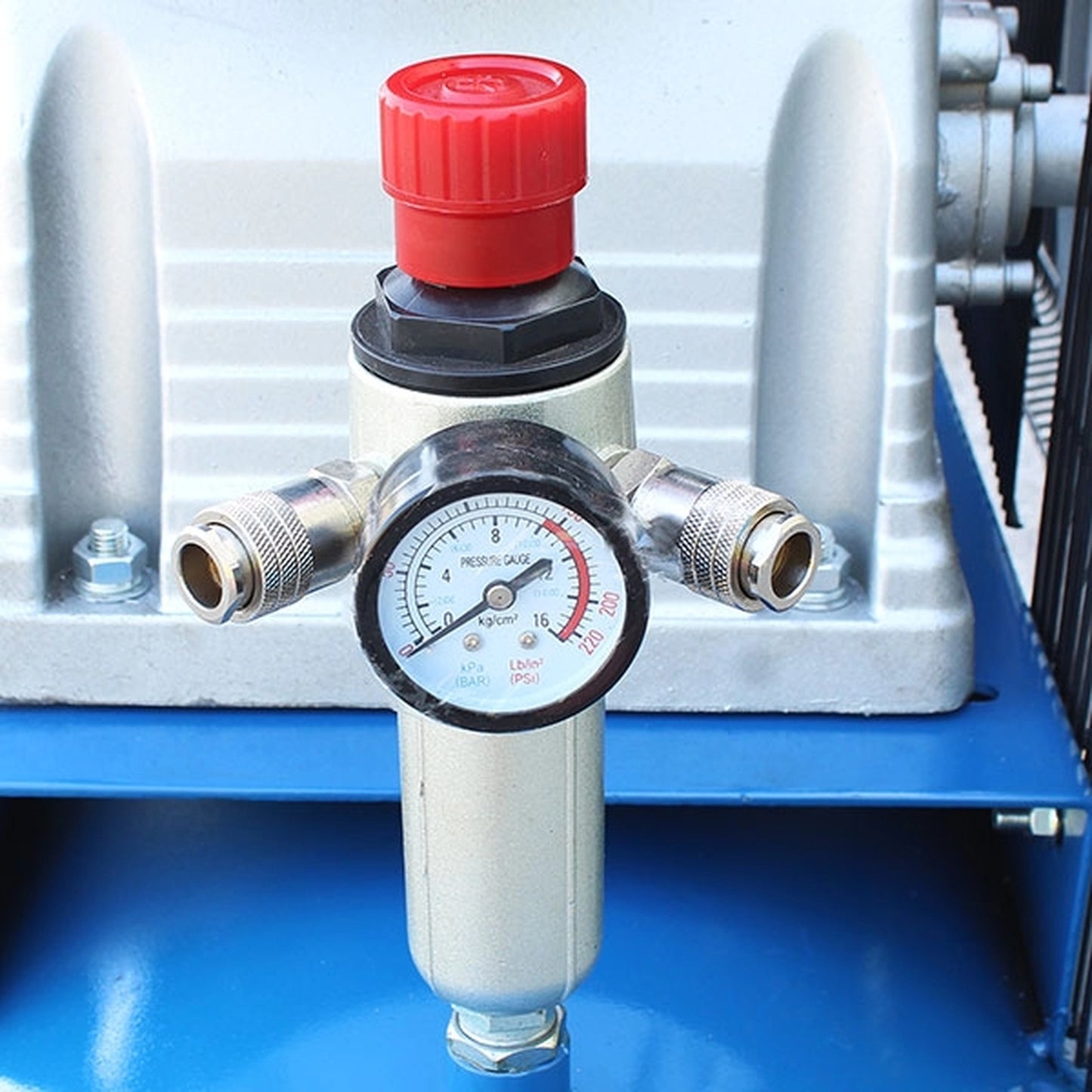

- Outlet Pressure - Regulation Type Adjustable
- Engine Size (cc) - 420
- Engine Model - IC420E
- Engine Type - Twin Cylinder
- Fuel Capacity (L) - 6.5
- Engine Oil - 15W40
- Engine Oil Capacity (ml) - 1100
- Rated Power (w) - 9100
- Motor Power kW/hp - 9.1/13
- Pump (RPM) - 1050
- Speed (RPM) - 3000
- Noise Level (db) - 91
- Gross Weight (kg) - 148
- Net Weight (kg) - 138
- Fully Assembled Dimensions (H x W x L) (mm) - 980 x 500 x 1310
- Packaged Dimensions (H x W x L) (mm) - 1020 x 520 x 1360
- Product Type - Air Compressor
- Warranty (years) - 2
- Model EAN - 5056275722760
- In The Box - HY140200PES, 4 Rubber Feet & User Manual
