Hyundai

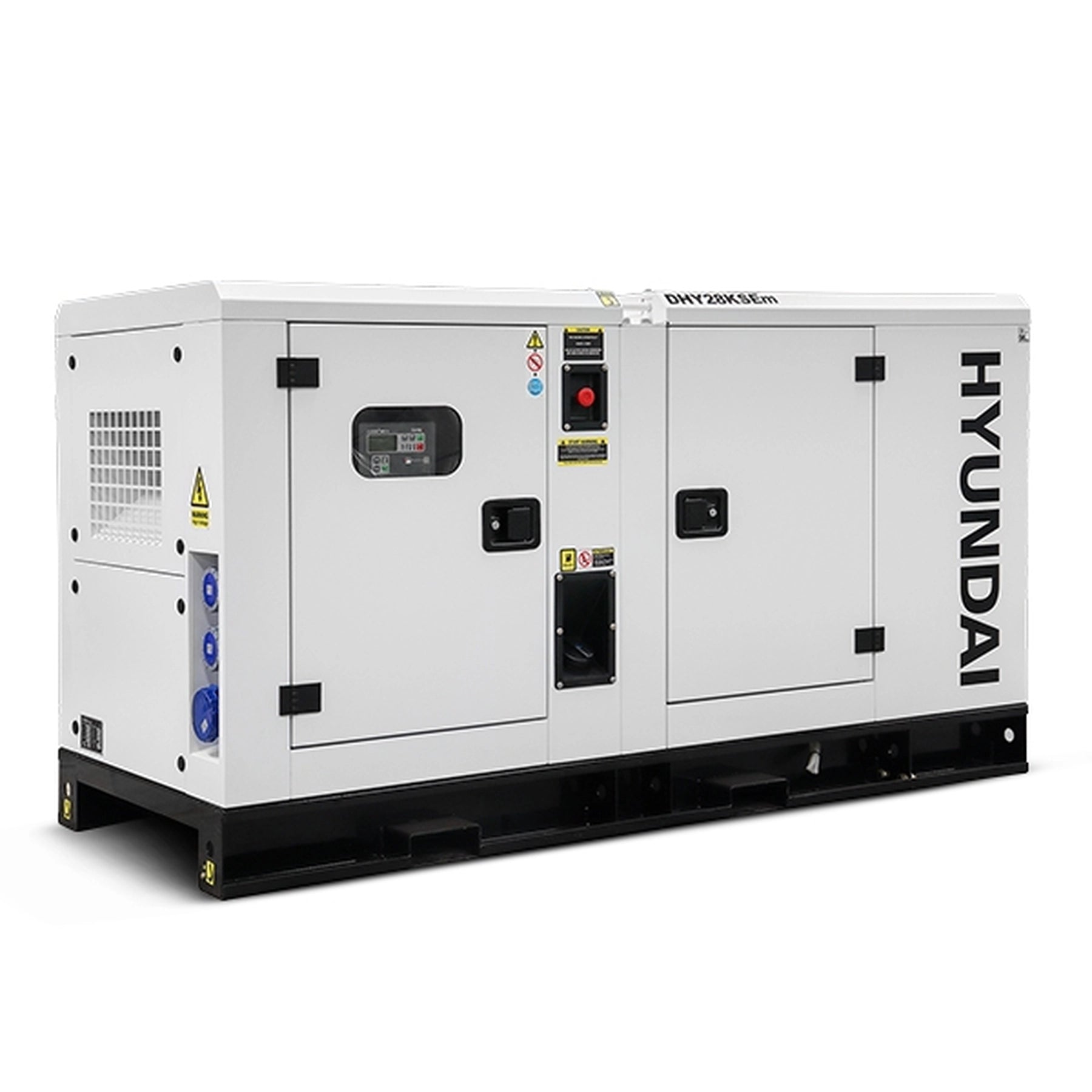

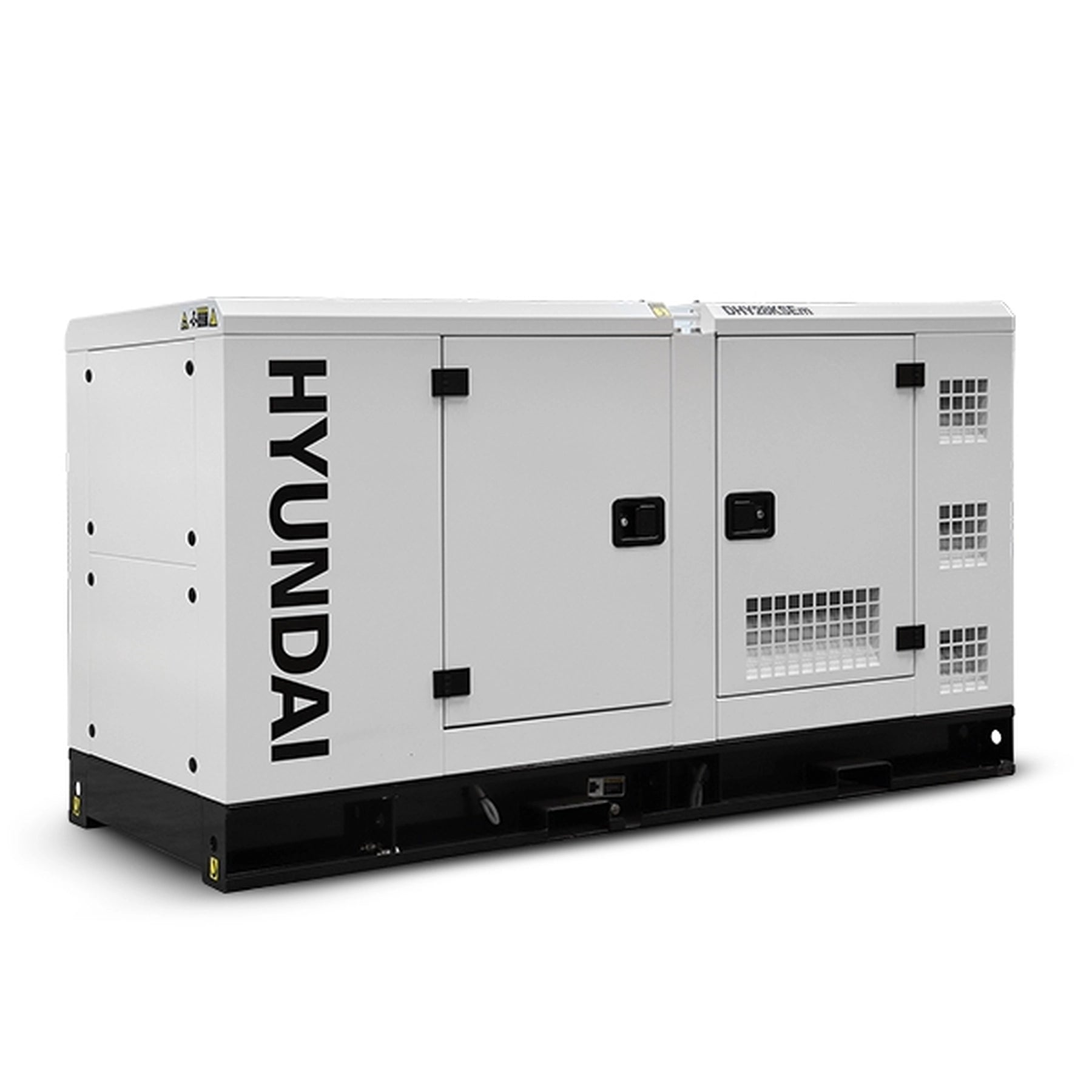

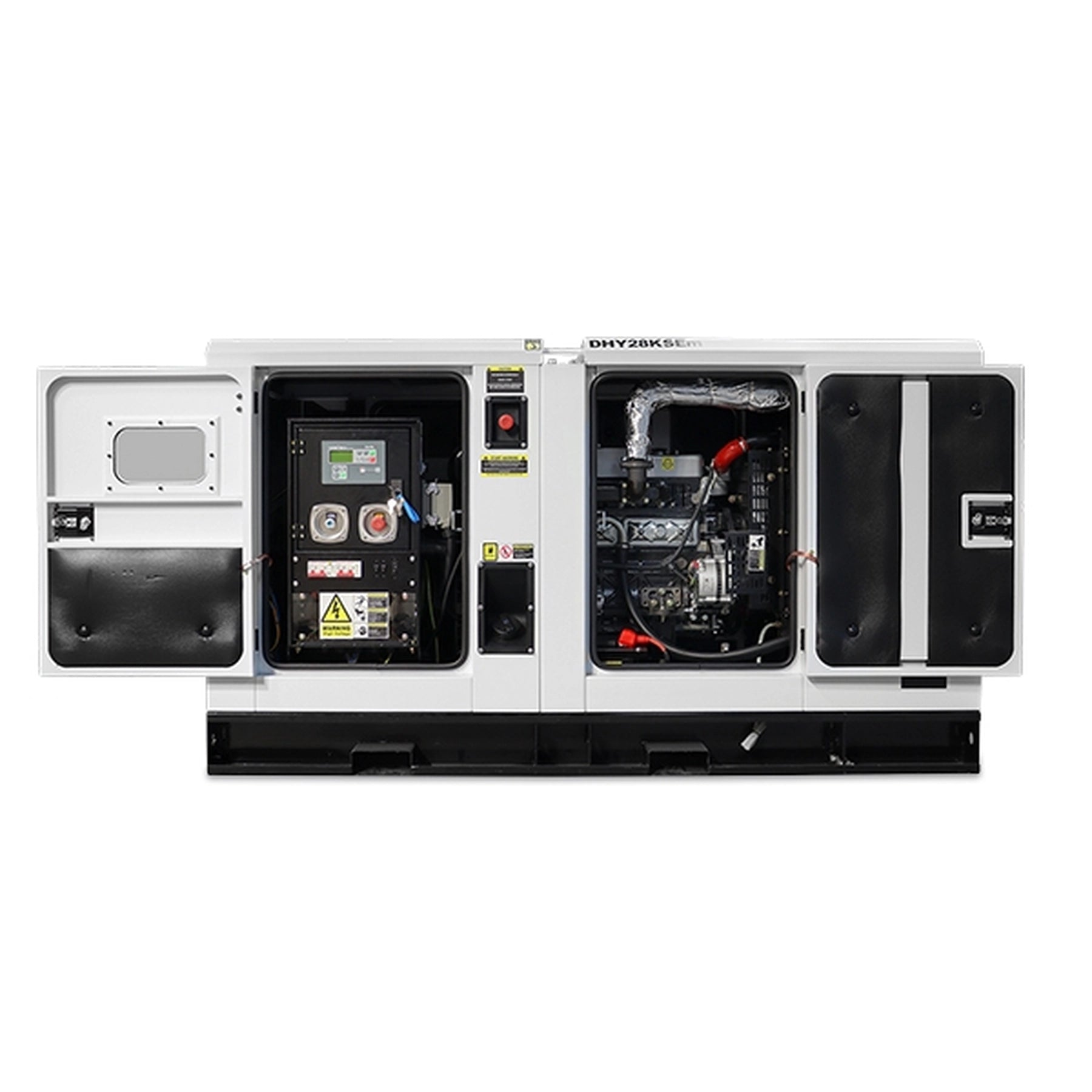

A powerful single-phase diesel generator, suitable for powering a large home or office, or a number of site cabins on a construction site, this diesel genset has a maximum output of 34KVA.

Powered by a 33hp HY4102 water-cooled diesel engine, the DHY28KSEm is able to produce a maximum output of 34KVA / 27.5kW backup power and 31KVA / 25kW prime power. A 93L fuel tank allows the generator to run for 18 hours (at 50% load) before refuelling. Equipped with an AVR alternator to produce clean energy, the DHY28KSEm is suitable for powering sensitive electronic equipment, such as televisions, PCs and laptops, in your home or business. Can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system, which will automatically turn on the generator when a loss of power to the property is detected. When power returns from the mains, the ATS module will then safely turn your generator off. This is ideal for those who need to guarantee constant power - for example, if you run servers or have refrigeration units.

SKU: Z-HY-DHY28KSEM

  • £8,649.99
    Unit price per
Tax included.

Only 0 left!

Highlights:

  • Single-phase diesel generator: Produces up to 34kVA of backup power and 31KVA of prime power
  • Powered by a 1500rpm engine: Extends the lifespan of the generator
  • Fitted with an AVR alternator: Able to produce a clean energy output

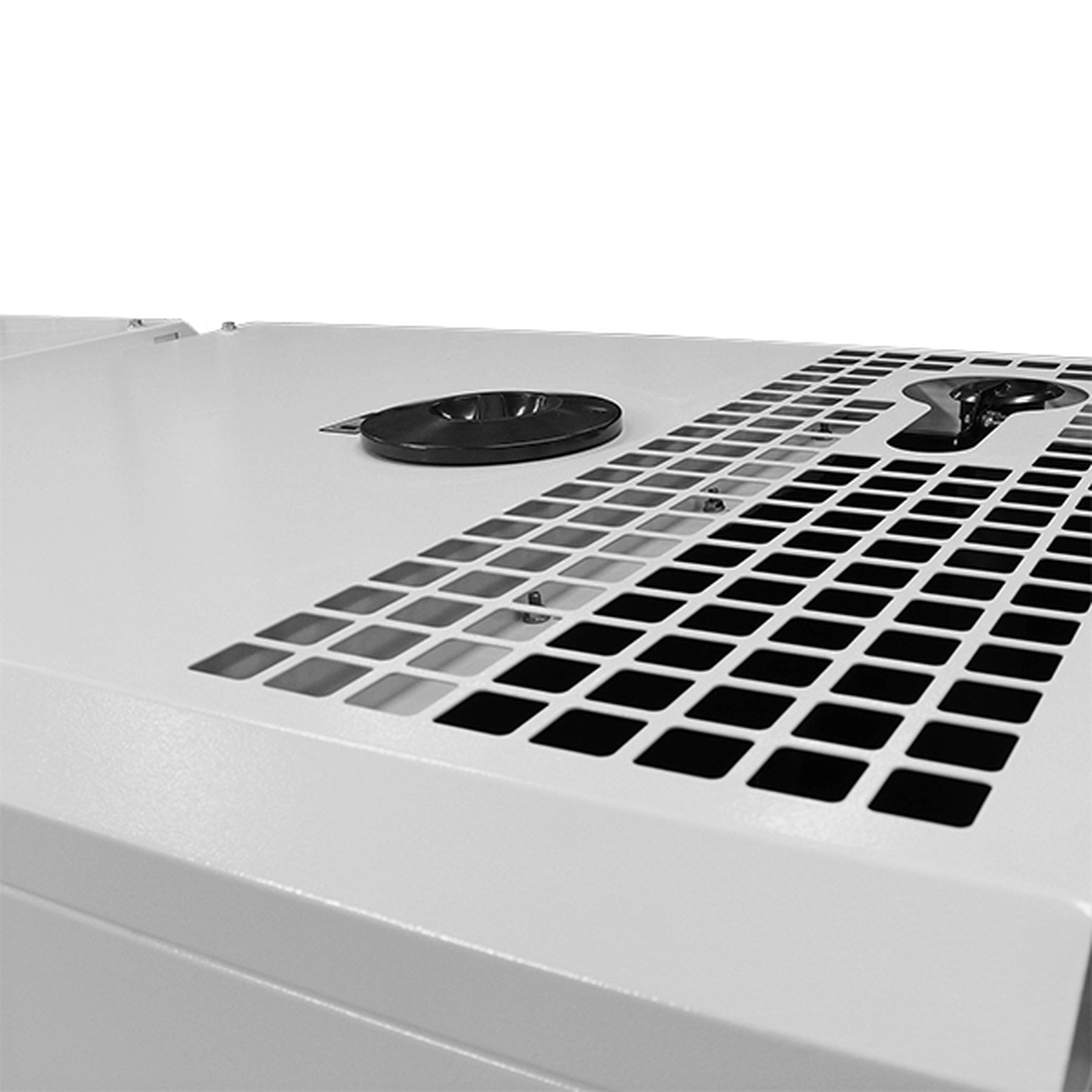

  • Silenced generator: Housed in a weather-proof canopy, producing only 69dB at 7m
  • ATS compatible: Automatically transfers power to the generator in the event of a power cut
  • Large fuel tank: For extended running times
  • Peace of mind: 2-year Hyundai warranty

Technical Specification:

  • Model - DHY28KSEm
  • Rated/Prime kVA* - 31
  • Rated/Prime kW - 25
  • Max/Standby kVA* - 34
  • Max/Standby kW - 27.5
  • Phase - Single
  • Voltage - 230

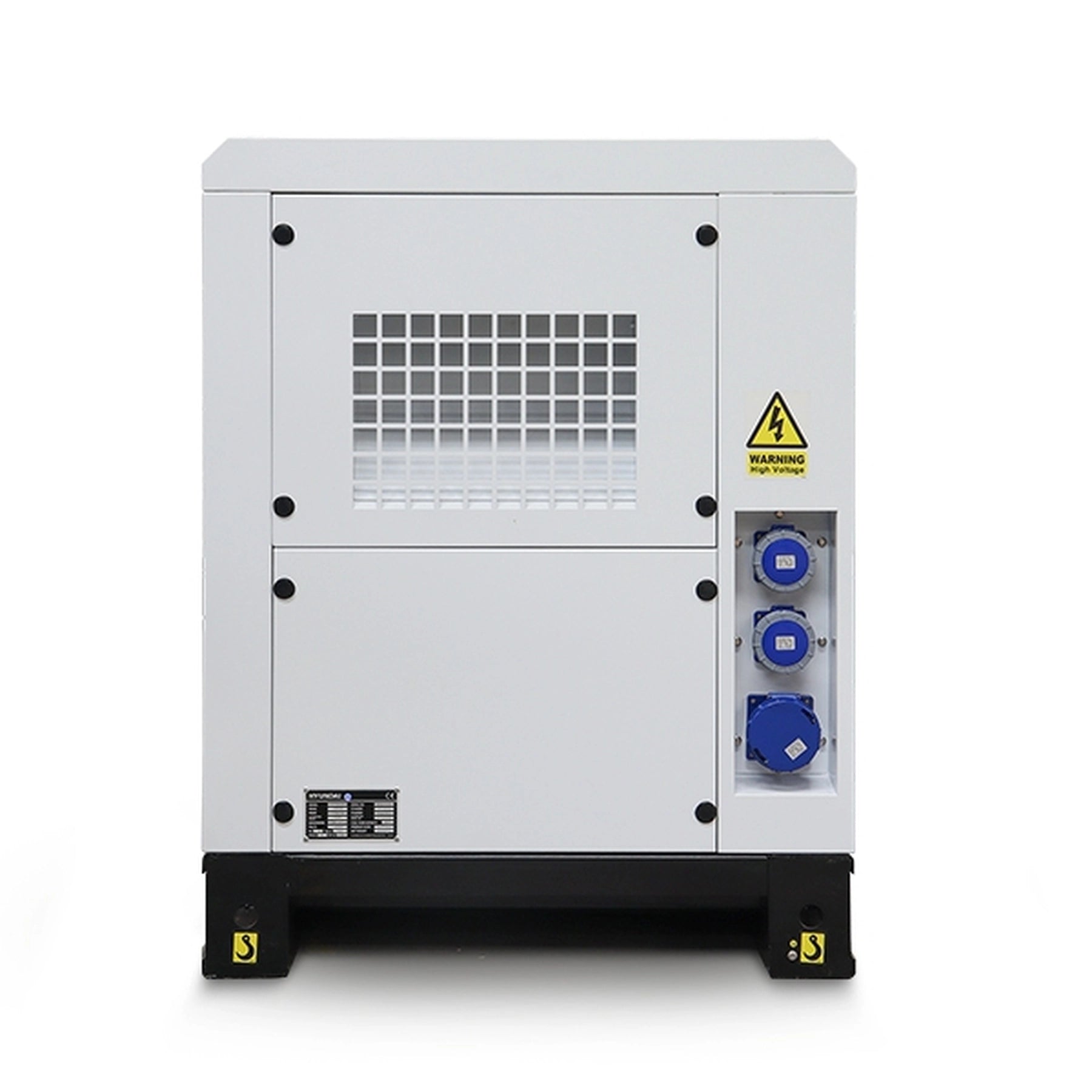

  • Connection Method(s) - 2 x 230V/32A 1 x 230V/63A Busbar
  • Rated Speed (RPM) - 1500
  • Frequency (Hz) - 50
  • Max/Continuous Current (Amps) - 121.7 / 108.7
  • Power Factor (Cosφ) - 1
  • Fuel Type - Diesel
  • Fuel Tank (Litres) - 93
  • Runtime (Hours) @ 100% Load - 10
  • Noise Level @ 1m 75% load (dB) - 72
  • Noise Level @ 7m 75% load (dB) - 67

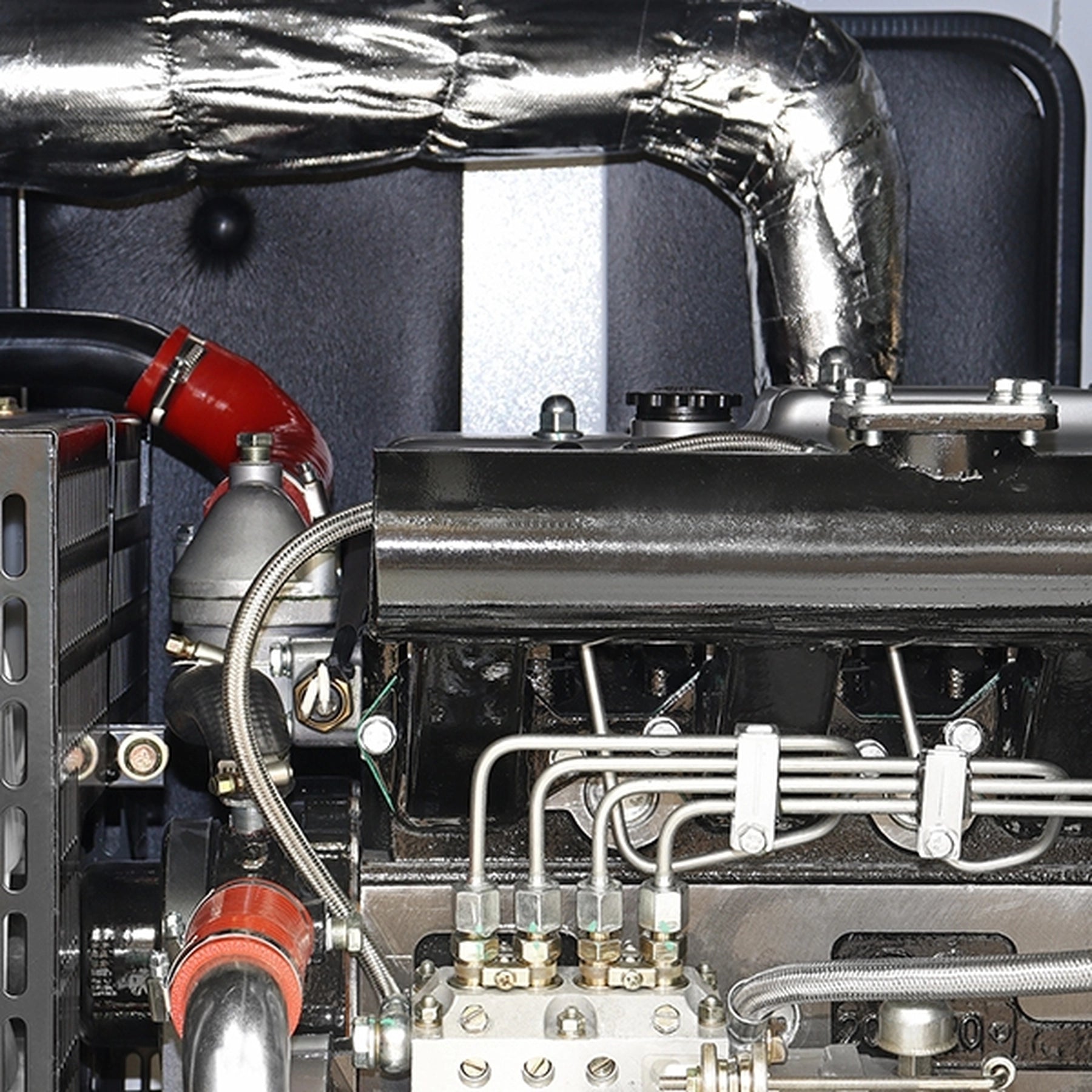

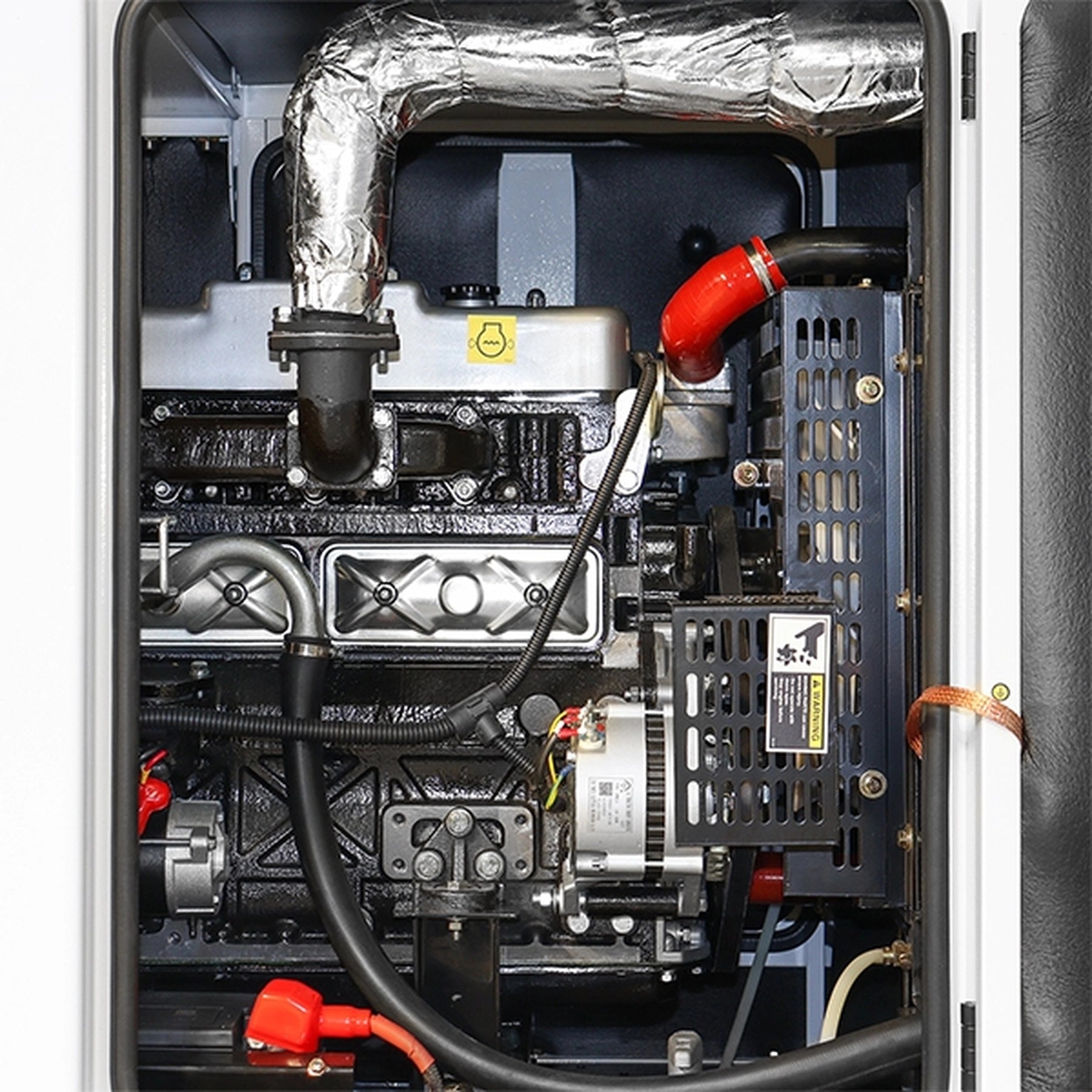

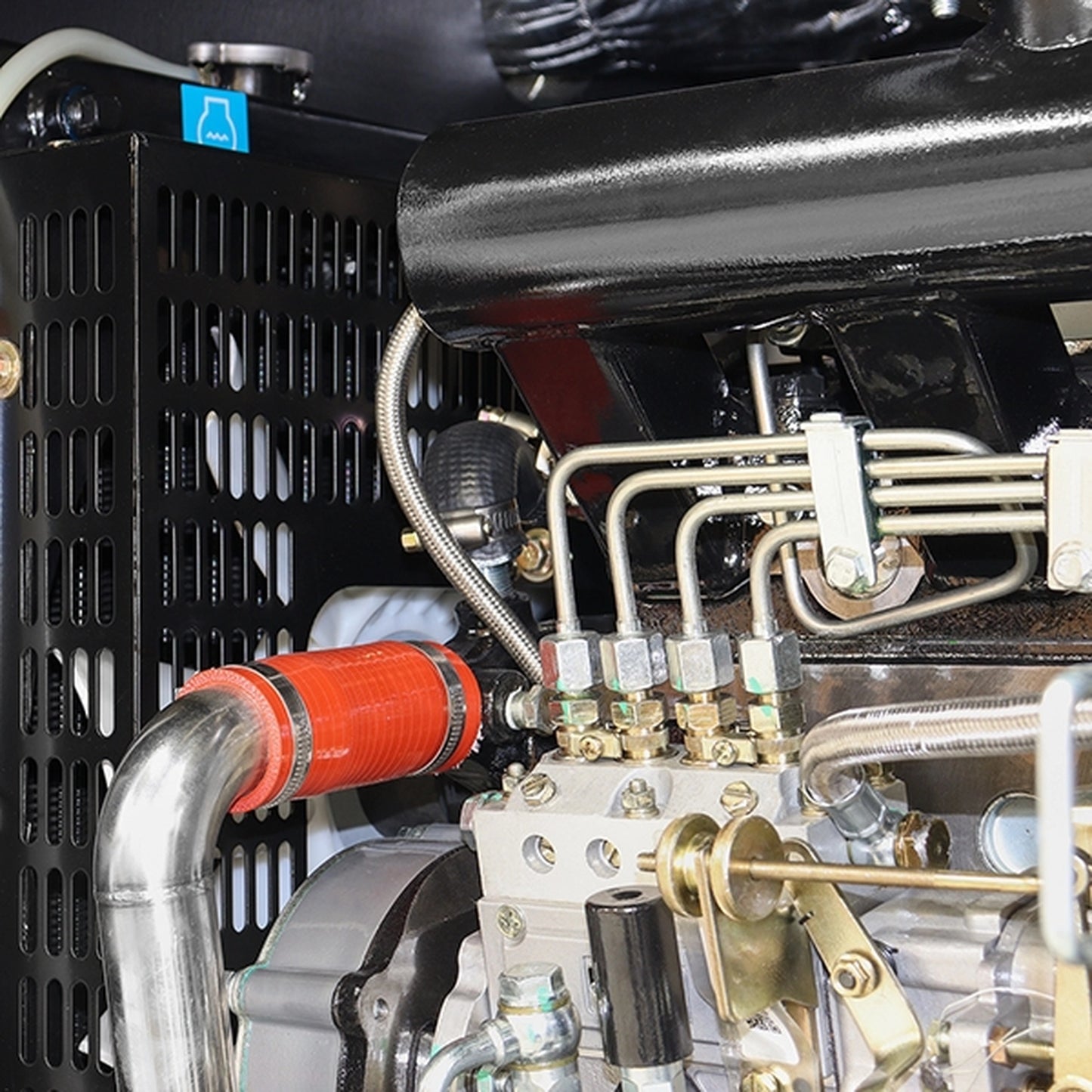

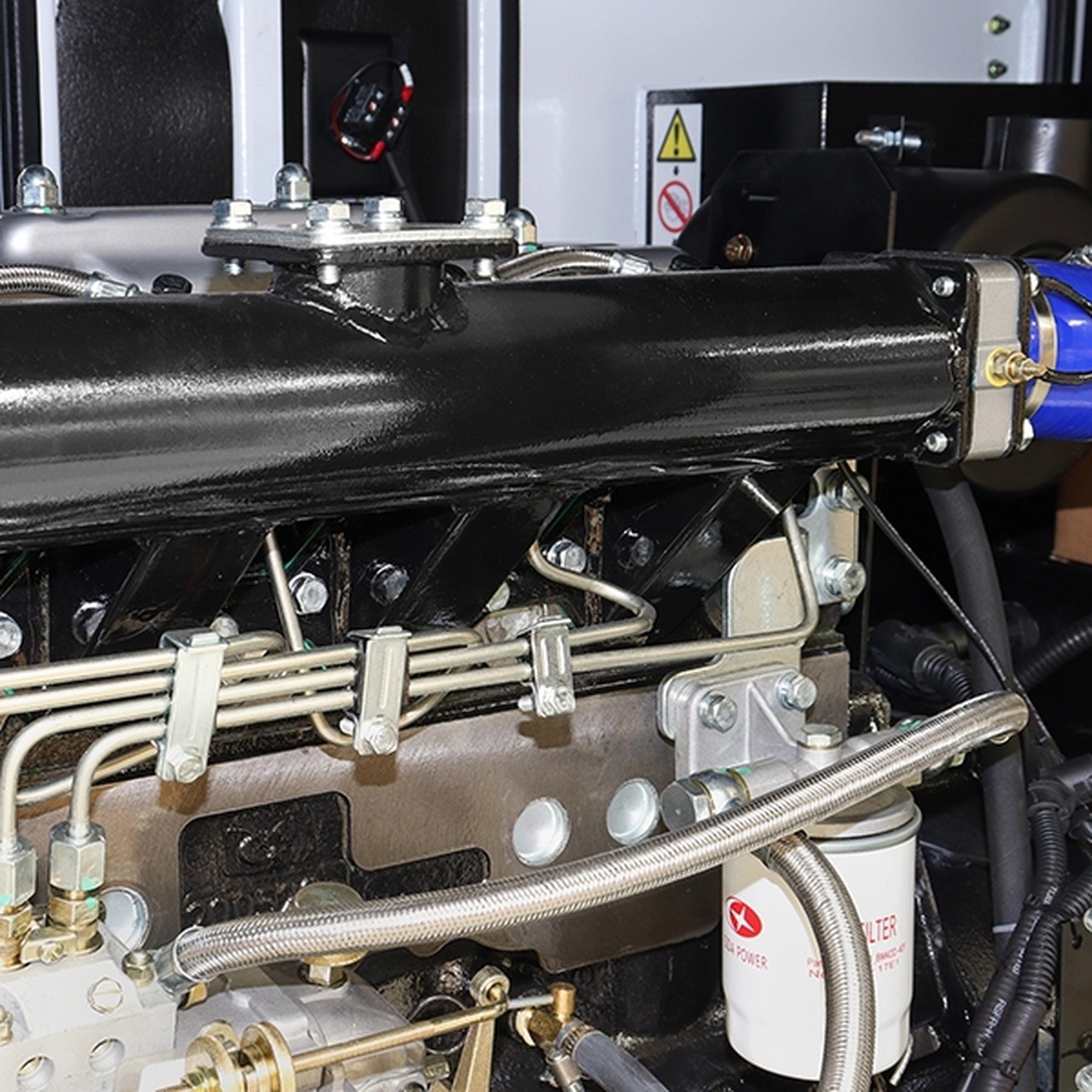

  • Hyundai Diesel Engine Model - HY4102
  • Power Output (hp) - 33
  • Displacement (CC) - 3800
  • No. of Cylinders - 4
  • Displacement (Litres) - 3.8
  • Recommended Oil Type - SAE 15W40
  • Oil Capacity (Litres) - 7.5
  • Oil Filter Part No. - JX0814
  • Aspiration - Natural
  • Fuel Regulation/Governor System - Mechanical
  • Fuel Consumption (100% Load) [Litres] - 9.3

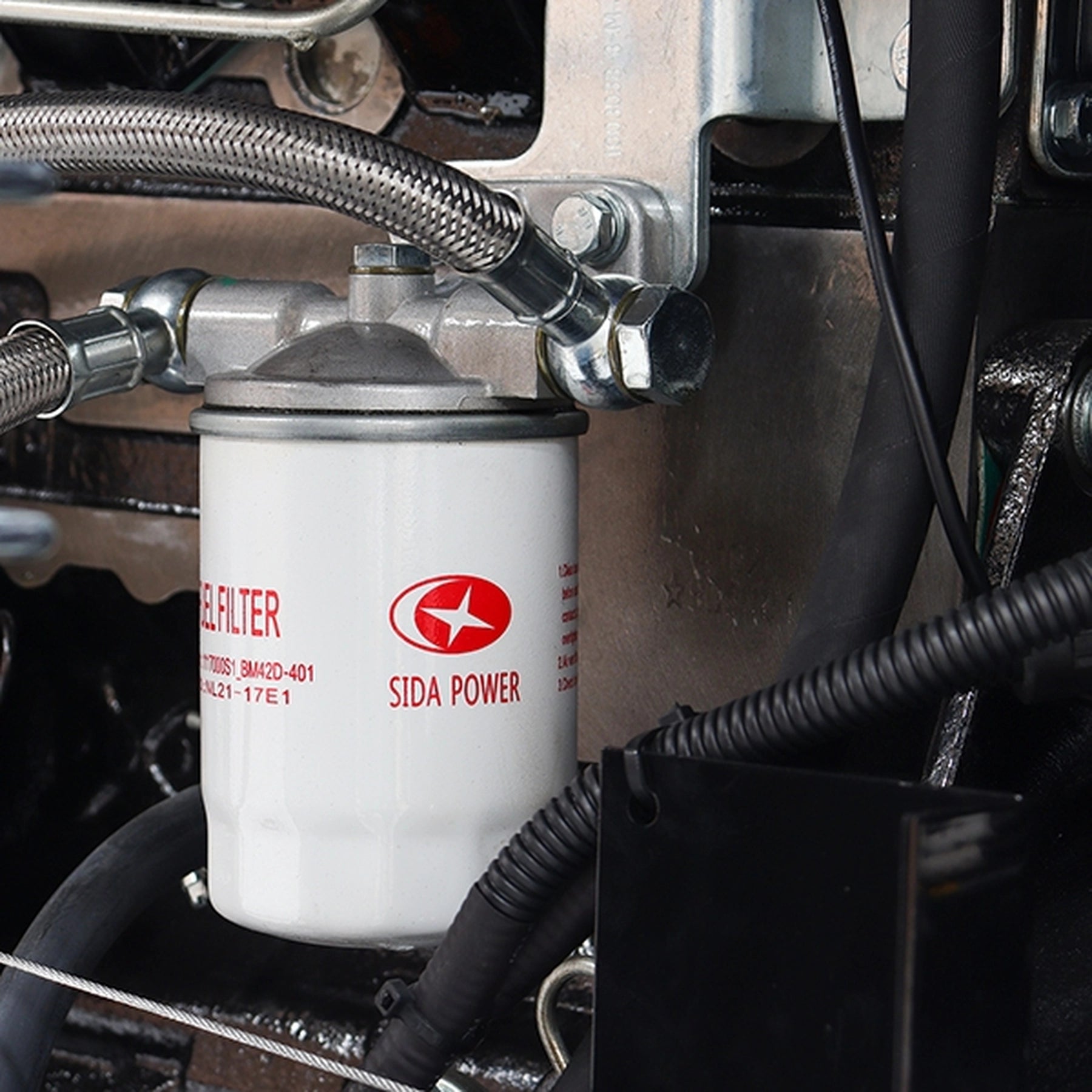

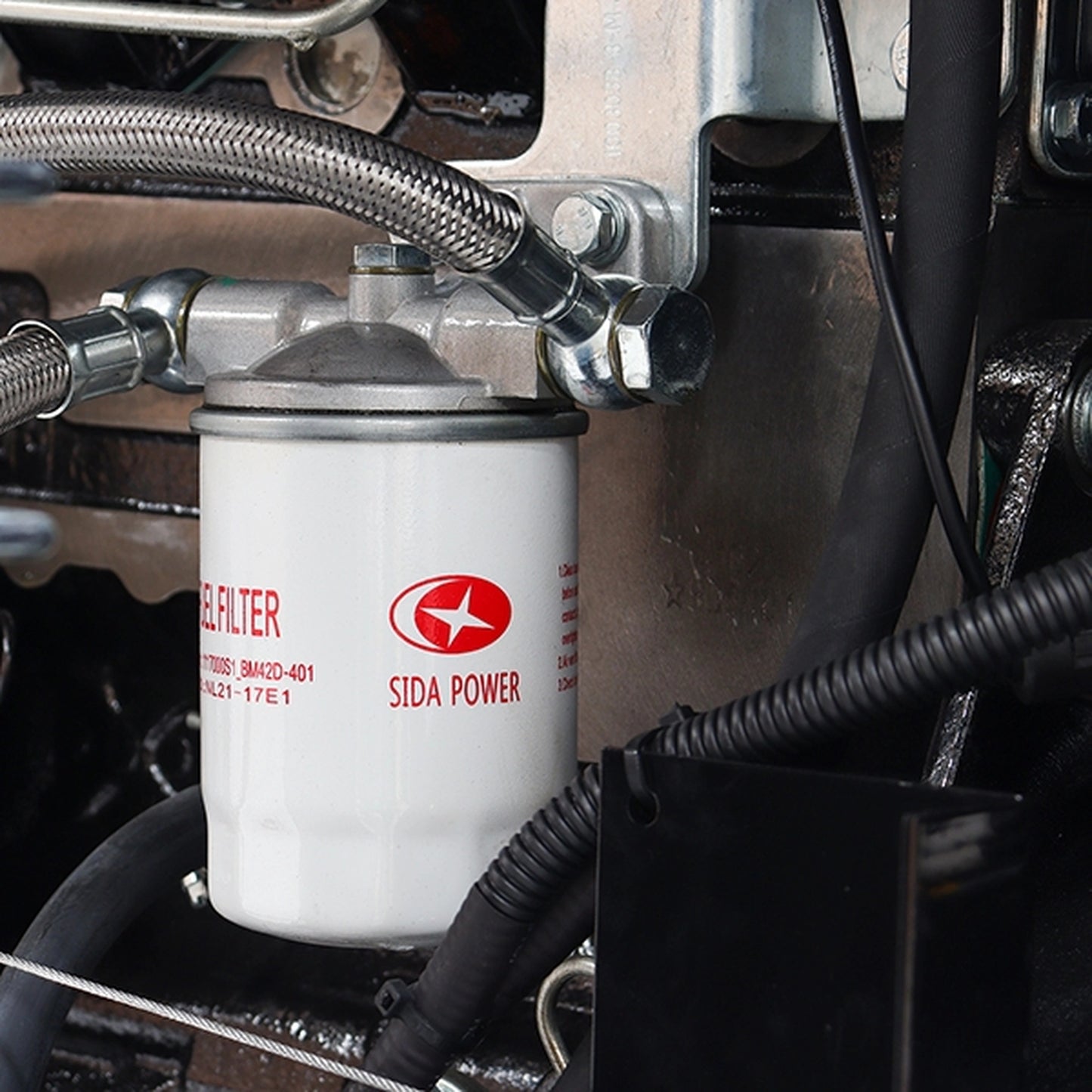

  • Fuel Filter Part No. - CX0708
  • Cooling - Water
  • Alternator Model - 184H
  • Breakers - 2P D100A 100mA
  • Alternator Type - Brushless
  • Voltage Regulation - AVR

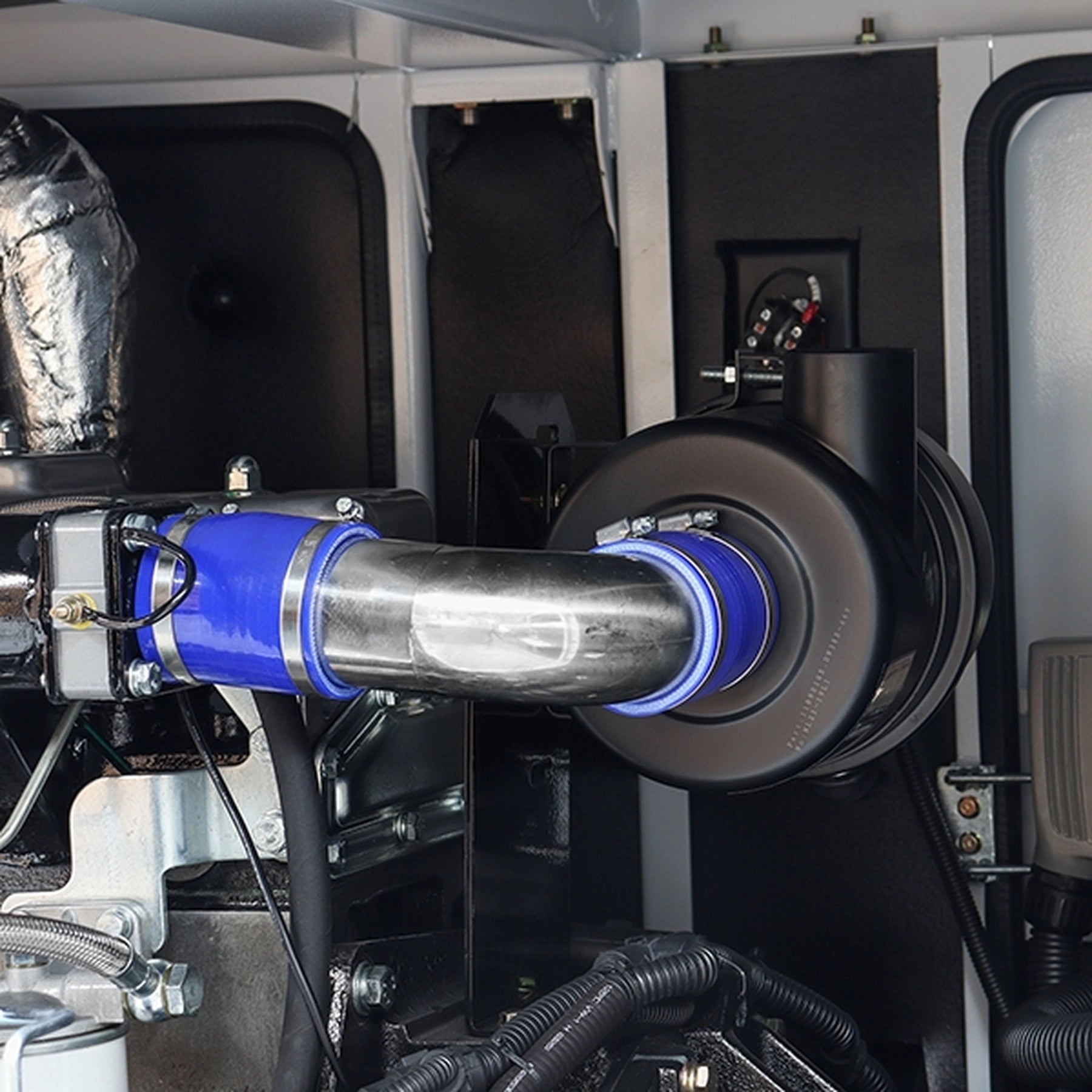

  • Air Filter Part No. - K1317
  • Net Weight (kg) - 980
  • Gross Weight (kg) - 980
  • Dimensions L x W x H (mm) - 2200 x 950 x 1250

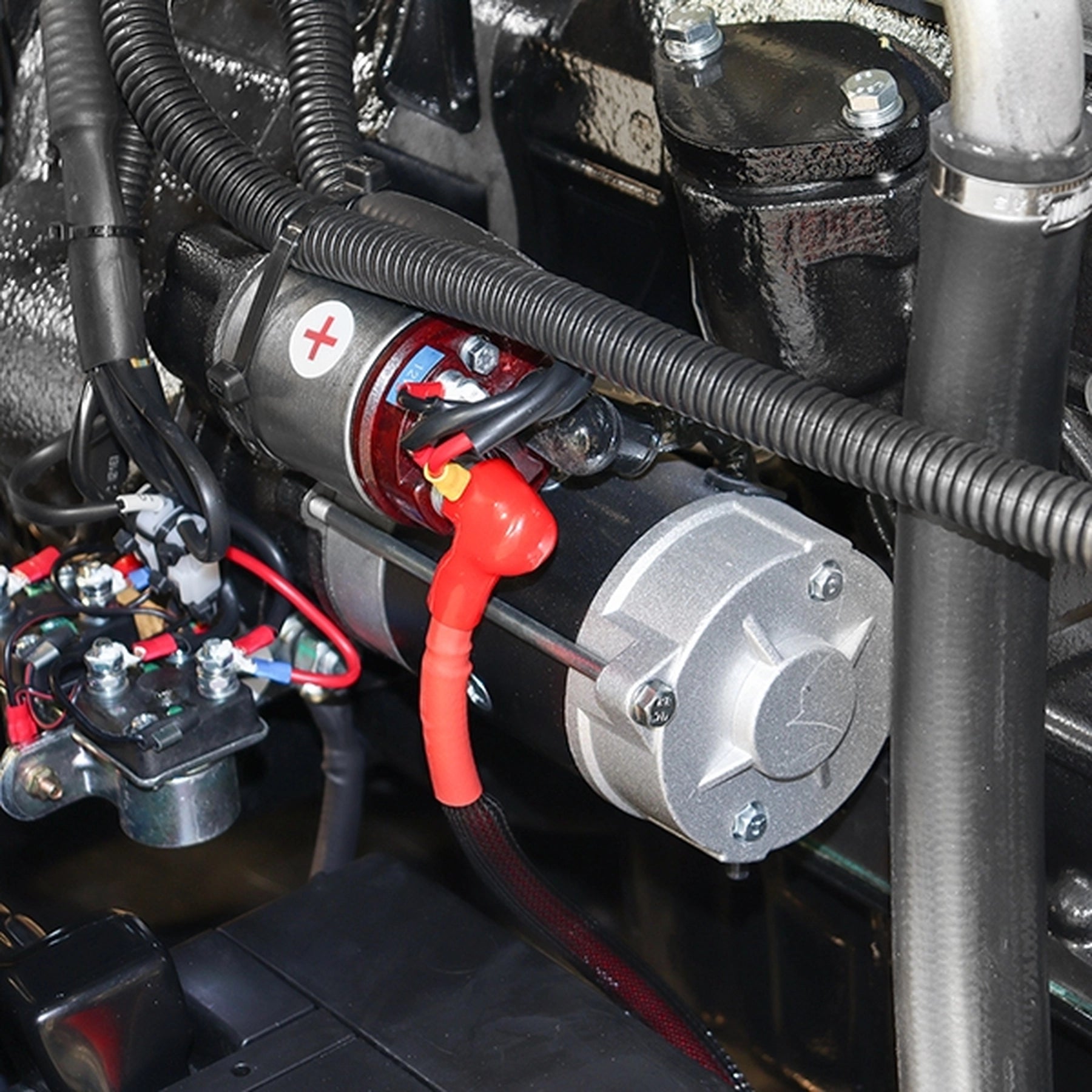

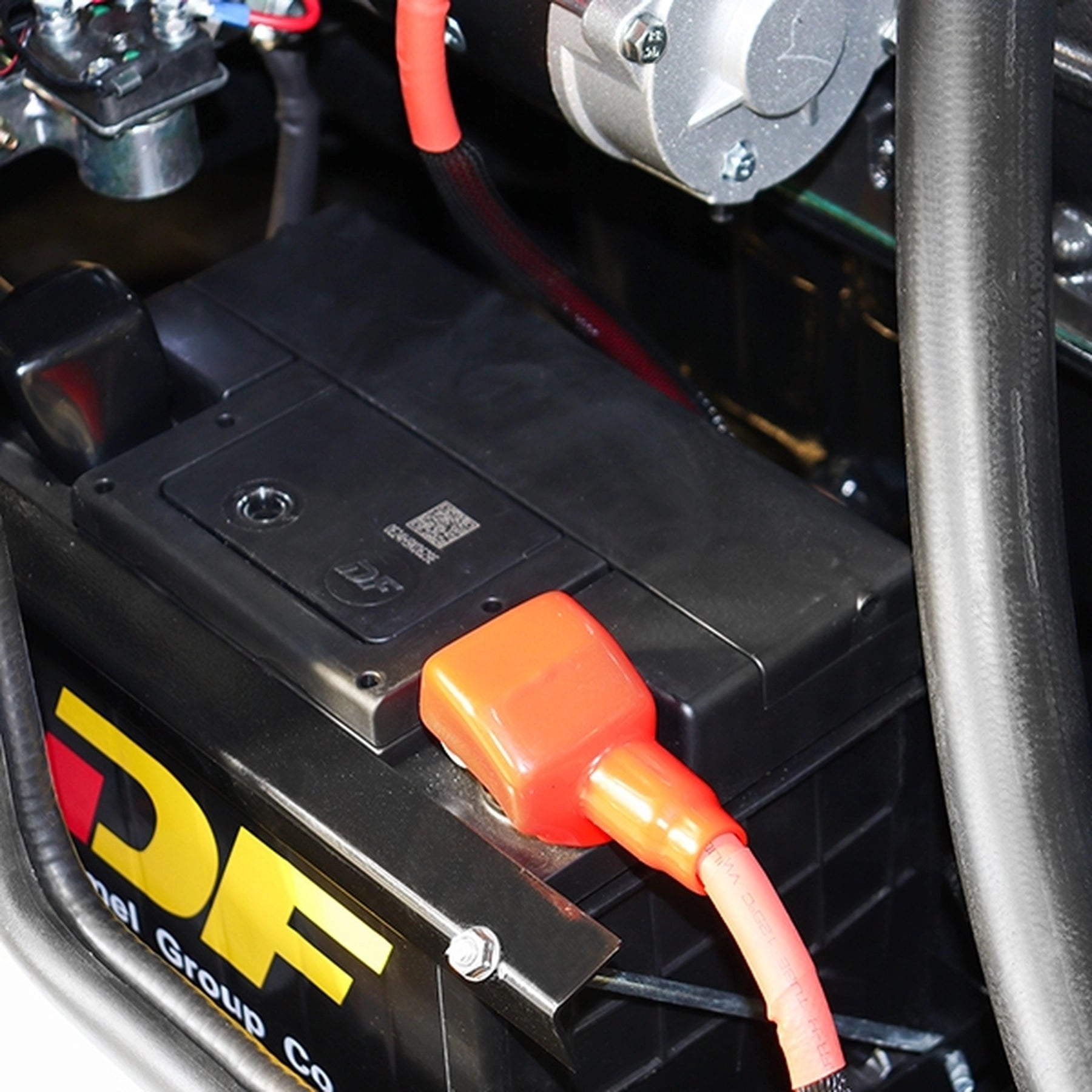

  • Battery System / Starting (V - Ah) - 1x12V-60Ah
  • ATS / MTS Compatible - Yes

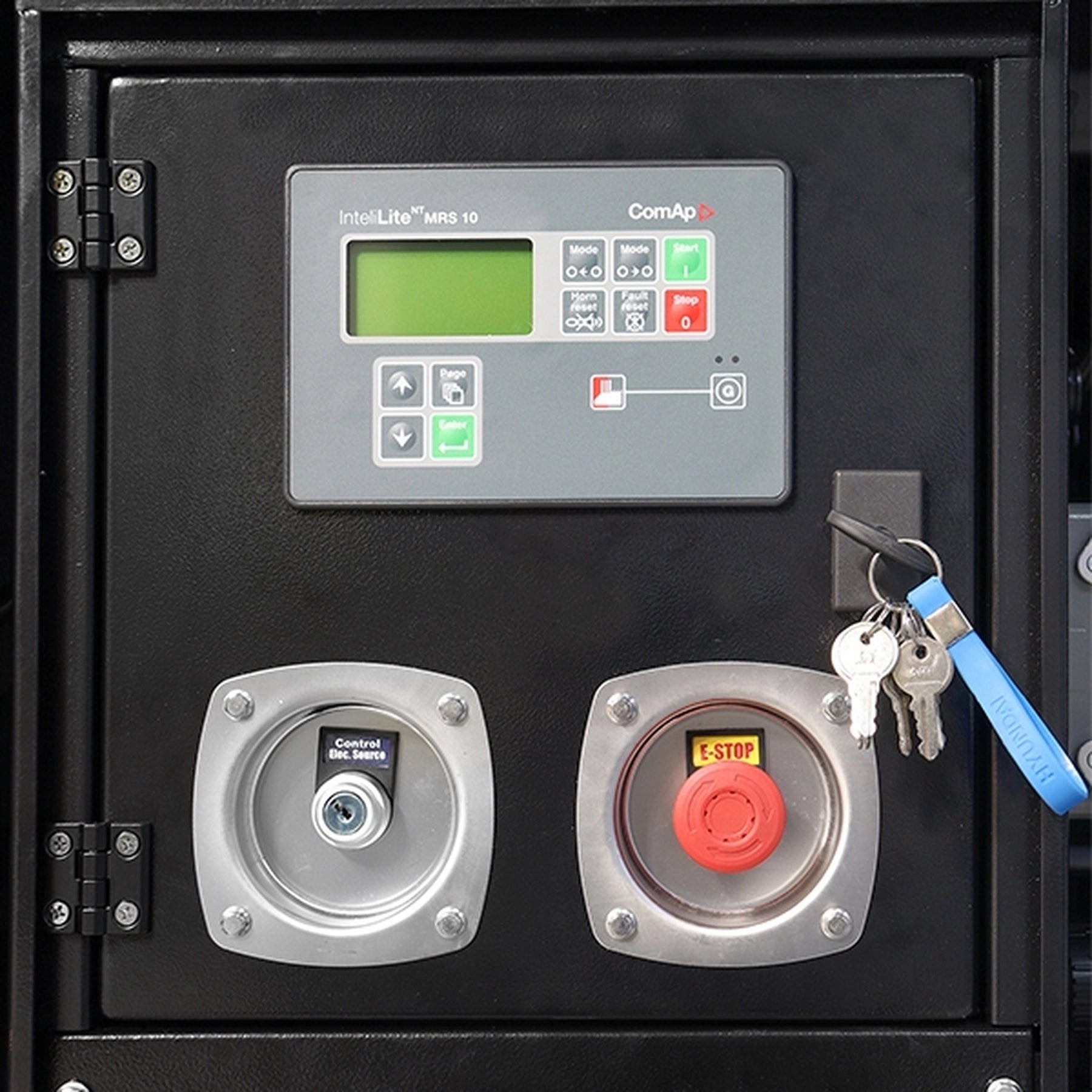

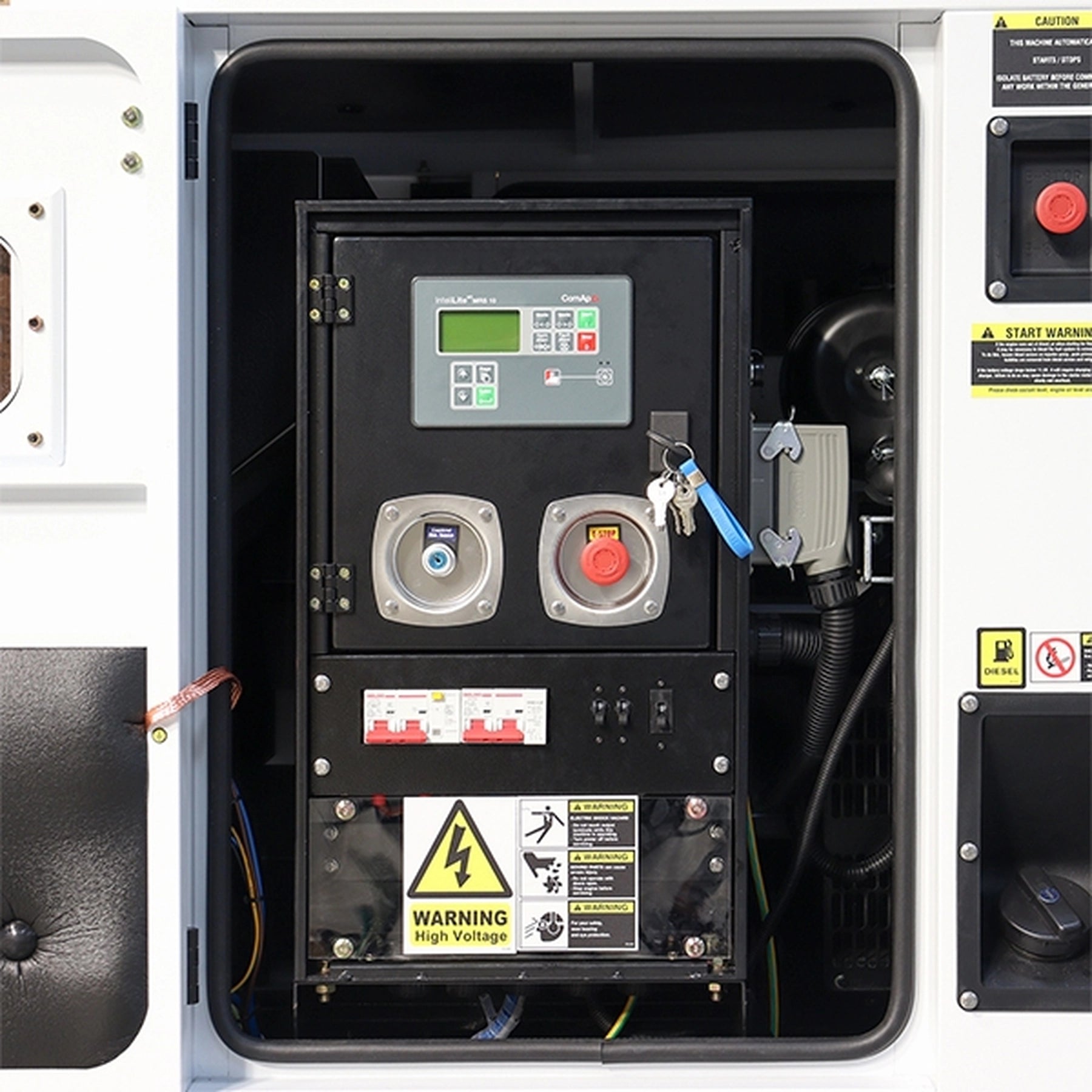

  • Control Panel - ComAp MRS10
  • Model EAN - 600231973588
  • Warranty - 1 Year / 1000 Hours (can be extended to 2 years, subject to standby use of 500 hours per year. Terms apply*)
