Hyundai DHY22KSE 18kW/22kVA 3-Phase Diesel Generator
Hyundai DHY22KSE 18kW/22kVA 3-Phase Diesel Generator
Hyundai DHY22KSE 18kW/22kVA 3-Phase Diesel Generator

Hyundai DHY22KSE 18kW/22kVA 3-Phase Diesel Generator

Hyundai

A powerful three-phase diesel generator, suitable for powering three-phase equipment in your home, business or factory, this diesel genset has a maximum output of 22KVA.

Powered by a 31hp HY490 diesel engine, the DHY22KSE is able to produce a maximum output of 22KVA / 18kW. 3-phase 400/230v generators are generally manufactured to power 400 volt, 3-phase equipment. Even though you can run a small amount of 230v equipment on a solo basis from them, this is not their intended purpose and it can be difficult to 'balance' the phases and stop the generator from tripping out. In order to run 230v output only, and reach the generator's output capacity you will need to accurately 'balance' the loads on each phase (the amount you are drawing from each phase of electricity).

SKU: Z-HY-DHY22KSE

  • £7,119.99
    Unit price per
Tax included.

Only 0 left!

Highlights:

  • Three-phase diesel generator: Produces up to 22kVA of power
  • Powered by a 1500rpm engine: Extends the lifespan of the generator
  • Fitted with an AVR alternator: Able to produce a clean energy output
  • Silenced generator: Housed in a weather-proof canopy, producing only 65dB at 7m
  • ATS compatible: Automatically transfers power to the generator in the event of a power cut
  • Large fuel tank: For extended running time
  • Peace of mind: 2-year Hyundai warranty

Technical Specification:

  • Model - DHY22KSE
  • Rated/Prime kVA* - 20
  • Rated/Prime kW - 16
  • Max/Standby kVA* - 22
  • Max/Standby kW - 18
  • Phase - Three
  • Voltage - 230 / 400

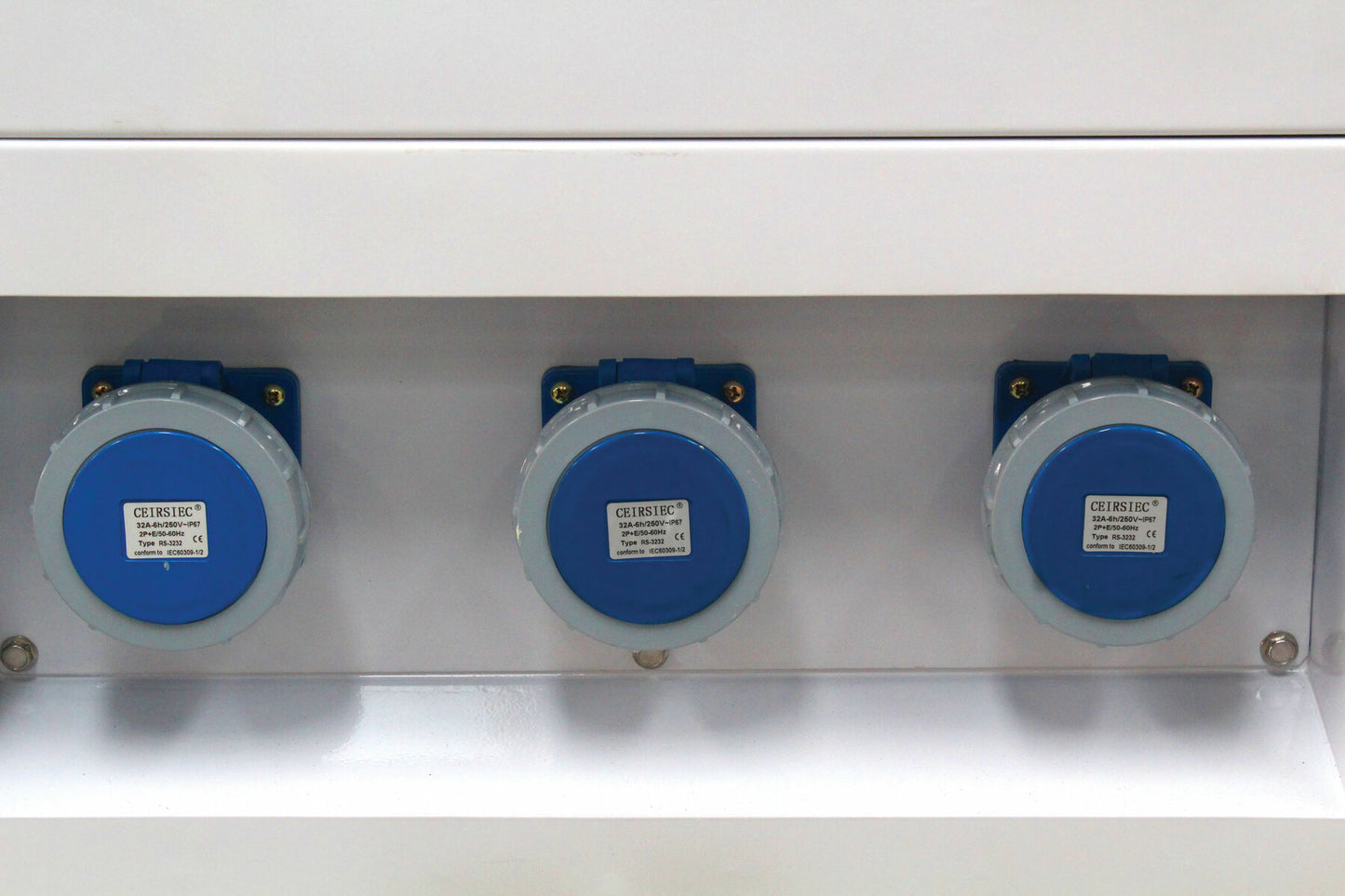

  • Connection Method(s) - 2 x 230V/32A 1 x 230V/63A Busbar
  • Rated Speed (RPM) - 1500
  • Frequency (Hz) - 50
  • Max/Continuous Current (Amps) - 32 / 29
  • Power Factor (Cosφ) - 0.8
  • Fuel Type - Diesel
  • Fuel Tank (Litres) - 77.5
  • Runtime (Hours) @ 100% Load - 12.1
  • Noise Level @ 1m 75% load (dB) - 70
  • Noise Level @ 7m 75% load (dB) - 65
  • Hyundai Diesel Engine Model - HY490
  • Power Output (kw) - 21
  • Displacement (CC) - 2500
  • No. of Cylinders - 4
  • Displacement (Litres) - 2.5
  • Recommended Oil Type - SAE 15W40
  • Oil Capacity (Litres) - 6
  • Oil Filter Part No. - JX0810D1/JX85100C
  • Aspiration - Natural
  • Fuel Regulation/Governor System - Mechanical
  • Fuel Consumption (100% Load) [Litres] - 6.2
  • Fuel Filter Part No. - CX0708
  • Cooling - Water
  • Alternator Model - 184ES
  • Breakers - 3P+N C63A 100mA
  • Alternator Type - Brushless
  • Voltage Regulation - AVR
  • Air Filter Part No. - K1317
  • Net Weight (kg) - 786
  • Gross Weight (kg) - 786
  • Dimensions L x W x H (mm) - 1900 x 900 x 1120
  • Battery System / Starting (V - Ah) - 1 x 12/60
  • ATS / MTS Compatible - Yes

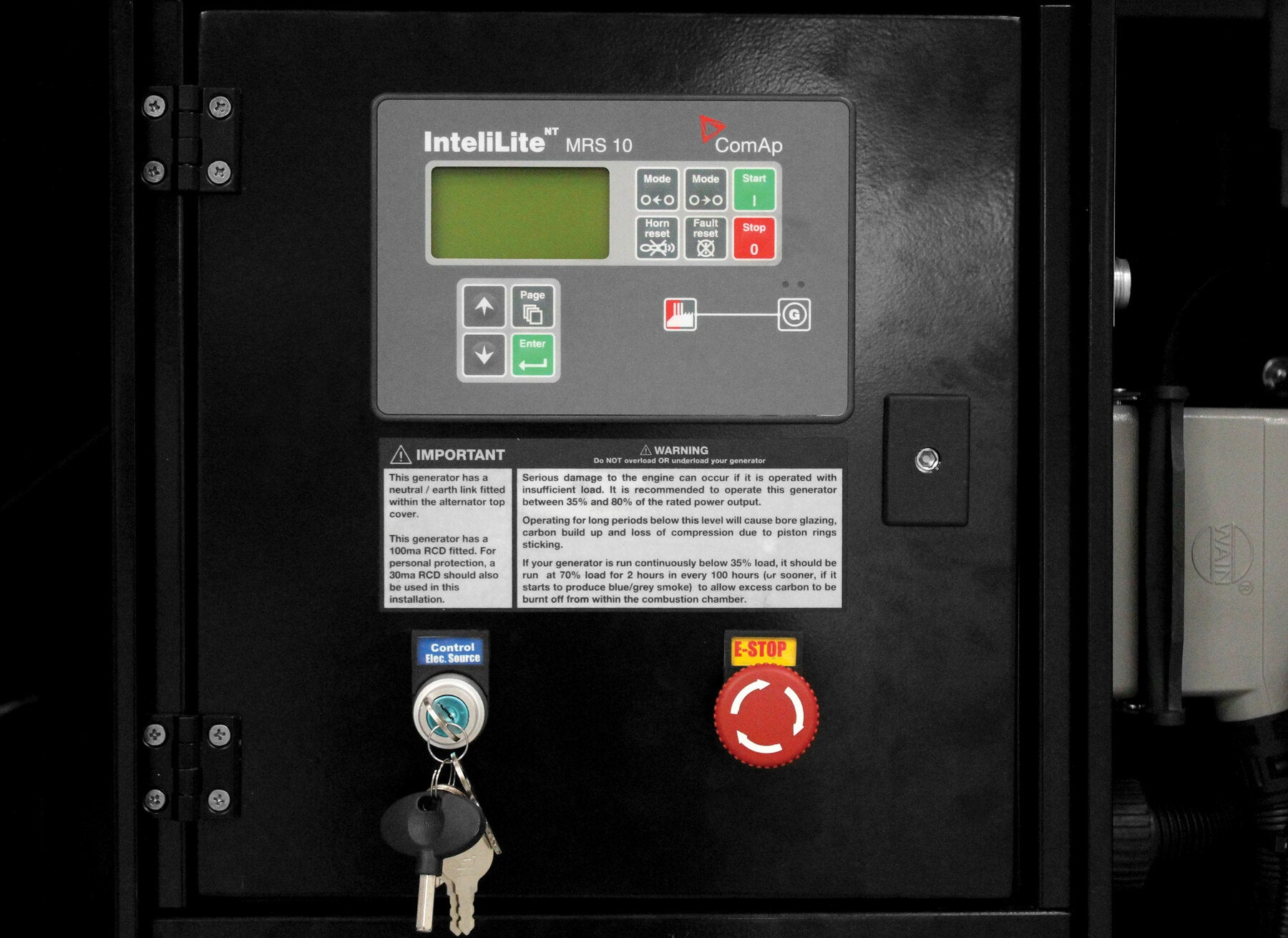

  • Control Panel - ComAp MRS10
  • Model EAN - 700621496229
  • Warranty - 1 Year / 1000 Hours (can be extended to 2 years, subject to standby use of 500 hours per year. Terms apply*)

SKU: Z-HY-DHY22KSE

Barcode: 700621496267

MPN: DHY22KSE

Google ID: Z-HY-DHY22KSE
