Hyundai 10hp 500L Permanent Magnet Screw Air Compressor Dryer HYSC100500DVSD
Hyundai 10hp 500L Permanent Magnet Screw Air Compressor Dryer HYSC100500DVSD
Regular price
£7,199.99
Regular price
Sale price
£7,199.99
Unit price
per
Tax included.
Out of stock
Free standard delivery on this item
Couldn't load pickup availability

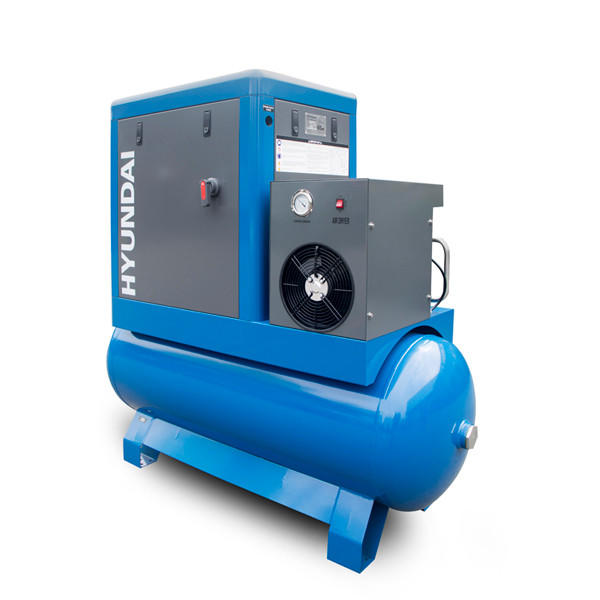

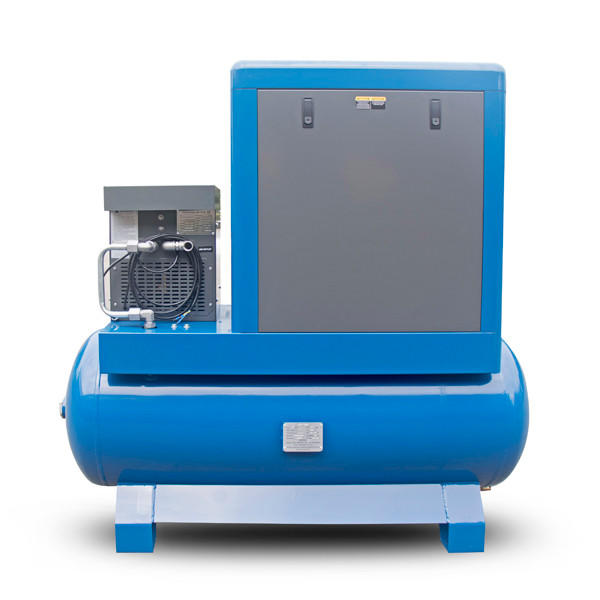

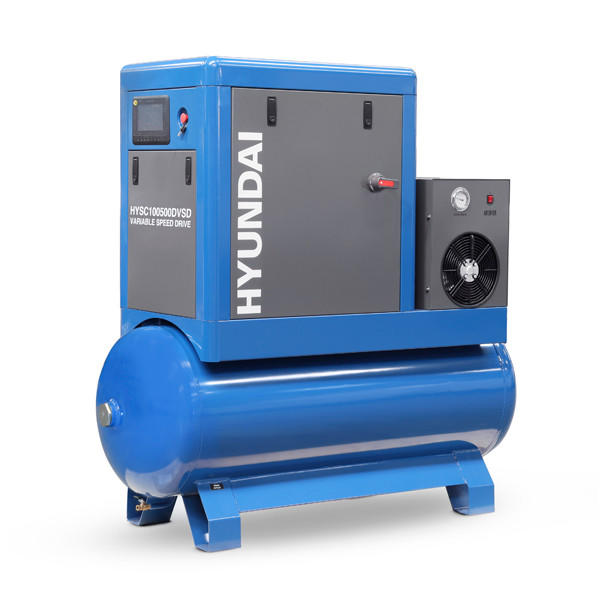

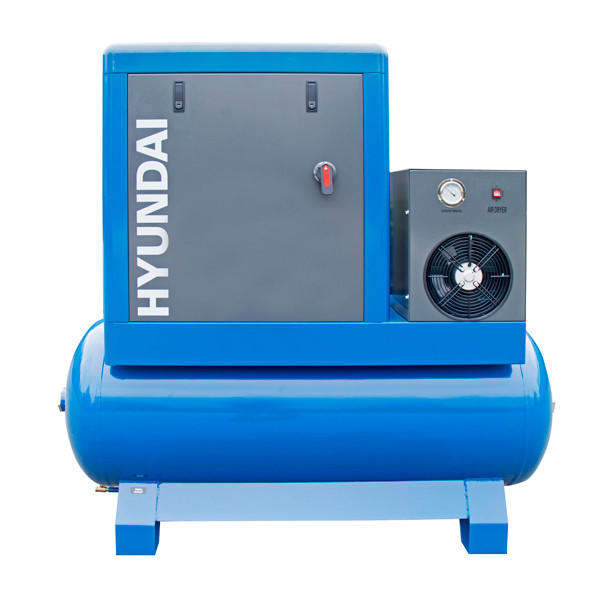

All-in-one Hyundai HYSC100500DVSD integrates a power screw compressor, refrigerated air dryer and air receiver tank, providing a complete solution to produce clean and dry compressed air.

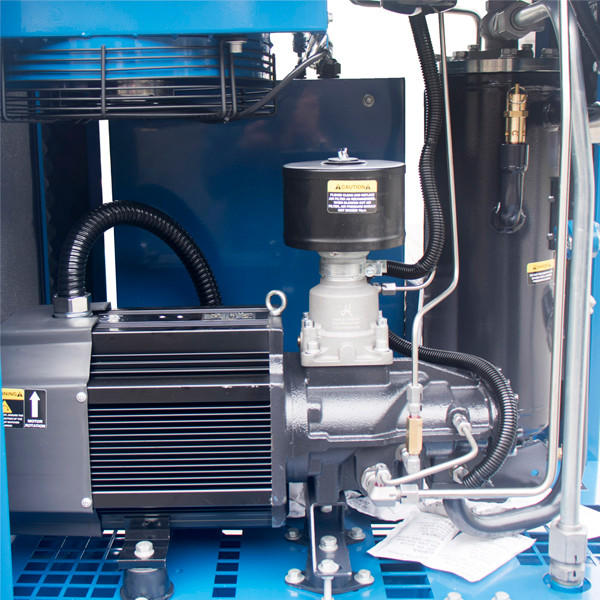

This Hyundai screw air compressor with dryer features a large 500L tank and 10hp motor, producing an impressive 145psi / 10bar output. HYSC100500DVSD 500L air compressor has been designed and built with high-quality components including our reliable refrigerant compressor and large, durable heat exchanger, making this compressor one you can rely on for years to come. This air compressor comes fitted with an extra-large oil and gas separator system, which improves the efficiency of the way any oil is removed from the air supply, making the output less than 3ppm.
Features:
- High-quality construction: Reliable air compressor perfect for a range of applications
- 500L tank & 10hp motor: Produces an impressive 145psi / 10bar output
- Variable speed drive: Matches output to the requirement for increased efficiency and longer life

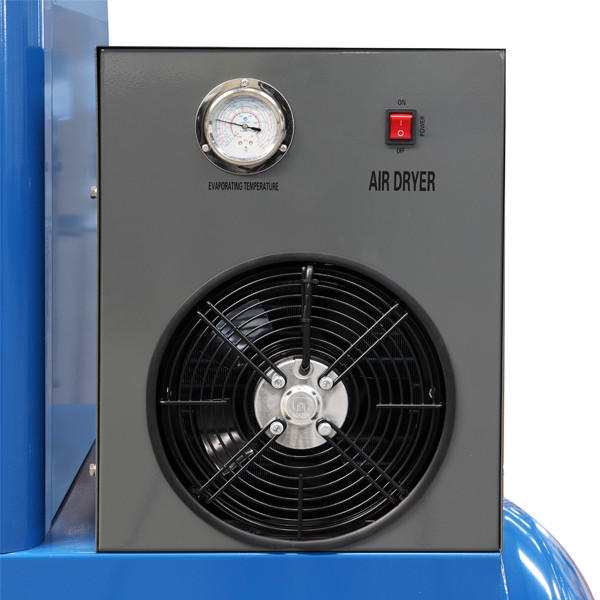

- Integrated air dryer: Ensures a clean and dry compressed air supply

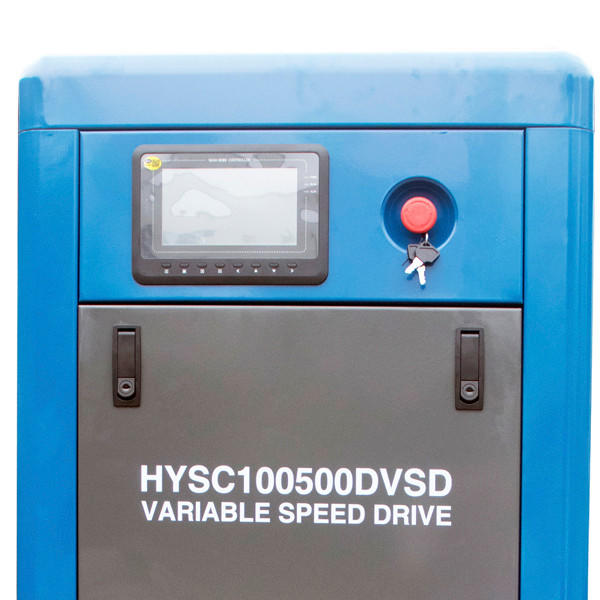

- 7” display screen: Easily monitor usage and assess maintenance requirements
-
Peace of mind: 2-year Hyundai warranty
Technical Specification:
- Model - HYSC100500DVSD
- Start Method - Electric
- Fuel/Power Source - Electric Hard Wired
- Drive Type - VSD Direct Drive
- Tank Capacity (L) - 500
- Tank Material - Steel
- Duty Cycle S1 - 100%
- Cut-In Pressure (psi/bar) - 101.5/7
- Cut-Out Pressure (psi/bar) - 116/11.5
- Discharge Pressure (psi/bar) - 145/10
- Max Pressure (psi/bar) - 145/10
- Air Flow FAD (L/min) - 940 @ 8 bar / 855 @ 10 bar
- Air Flow FAD (CFM) - 36 @ 8 bar / 31 @10 bar
- Air Displacement (L/min) - 990 @ 8 bar / 900 @ 10bar
- Air Displacement (CFM) - 31.7
- Air Outlet Connection - G3/4
- Outlet Pressure Regulation Type - Fixed
- Phase - Three
- Rated Power (kW) - 9.5
- Motor Power kW/hp - 7.5/10
- Pump (RPM) - 2700
- Speed (RPM) - 2700
- Frequency (Hz) - 50
- Noise Level @ 7m (dB) - 65
- Integral Air Dryer? - Yes
- Gross Weight (kg) - 420
- Net Weight (kg) - 380
- Fully Assembled Dimensions (H x W x L) (mm) - 1620 x 670 x 1700
- Packaged Dimensions (H x W x L) (mm) - 1860 x 790 x 1750
- Product Type - Air Compressor
- Warranty (years) - 2
- Model EAN - 5059608206524
SKU: Z-HY-HYSC100500DVSD
MPN: HYSC100500DVSD
ID: Z-HY-HYSC100500DVSD
