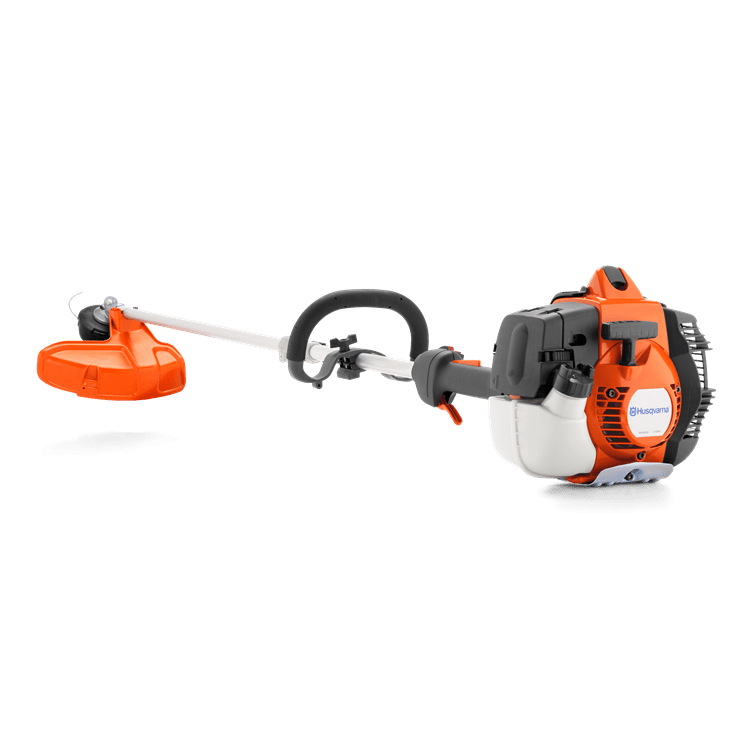

Husqvarna 535LK Petrol Combi Trimmer

Features:

• • Multi-purpose, many accessories available
• • Detachable shaft easy transport and storage
• • Skid plate for engine protection
• • Auto return stop switch for easy starting
• • Easy to service and maintain the starter
• • Easy to use trimmer head
• • Transparent fuel tank, easy to check fuel level
• • Fuel pump for easy starting
• • Comfortable handles
• • X-Torq engine cuts emission and fuel consumption



Technical Specification:

• Cylinder displacement - 34.6 cm³
• Power output - 1.5 kW
• Maximum power speed - 8400 rpm
• Fuel tank volume - 0.6 l
• Fuel consumption - 475 g/kWh
• Idling speed - 2900 rpm
• Spark plug - Champion RCJ6Y
• Electrode gap - 0.5 mm
• Torque, max. at rpm - 6600 rpm
• Torque, max. - 1.9 Nm
• Clutch engagement speed (±120) - 4300 rpm
• Maximum rpm output shaft - 8013 rpm
• Engine Family CARB - LHVXS.0354EE
• Engine Family EPA - LHVXS.035EE
• Exhaust emissions (CO2 EU V) - 862 g/kWh (1)
• Gear ratio - 1
• Drive gear angle - 30°
• Cutting width - 45 cm
• Weight (excl. cutting equipment) - 5.8 kg
• Tube length - 1483 mm
• Tube diameter - 24 mm
• OEM Trimmer head - T35 M10
• Lubricant type - Husqvarna 2 stroke or equiv. at 50:1
• Exhaust emissions (CO average) - 418.31 g/kWh
• Exhaust emissions (CO average) - 243.69 g/kWh
• Exhaust emissions (CO average) - 243.69 g/kWh
• Sound pressure level at operators ear - 99 dB(A)
• Sound power level, guaranteed (LWA) - 114 dB(A)
• Equivalent vibration level (ahv, eq) front handle - 4.5 m/s²
• Equivalent vibration level (ahv, eq) rear handle - 3.9 m/s²

[1] This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
