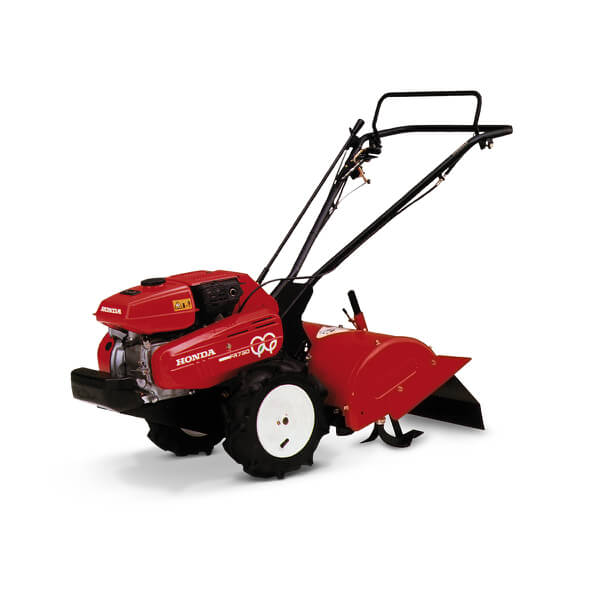

Honda FR750 Rotary Tiller

Features:

Gearbox: More gears means greater flexibility and power. The gearbox transfers the ideal power and torque to work the machine, letting you pick the perfect speed to match your pace.

Counter-rotating tines: By rotating the tines in the opposite direction to each other the tiller becomes very balanced and easy to control, effortlessly breaking up the hardest soil quicker and more efficiently.

Technical Specification:

Max tilling width (mm) - 510Max tilling depth (mm) - 326Forward speeds - 2Reverse speeds - 1Forward tool rotation speed (rpm) - 0.35 - 1.22 m/sReverse tool rotation speed (rpm) - 0.3 m/sPTO rotation speed (low/high) (rpm) - 238Dimension (L x W x H) (mm) - 1,500 x 570 x 1,140Dry weight (kg) - 97Rotors/tines supplied - Rear rotary tinesCounter rotating tines - YesWheels - Wheels & TyresEngine - 4-stroke OHCEngine model - GX200Engine displacement (cc) - 196Engine net power (kW/rpm) - 4.1/3,600Fuel tank capacity (Litres) - 2.5Engine oil capacity (Litres) - 0.6Starter - RecoilDrive clutch - Manual - expanding shoeTransmission - Variable slidingFinal transmission - Constant mesh with differentialDifferential / side clutch - YesSound pressure at operators ears (dB(A)) - 79Vibration (m/sec²) - 3.5Height adjustable handle - Yes
