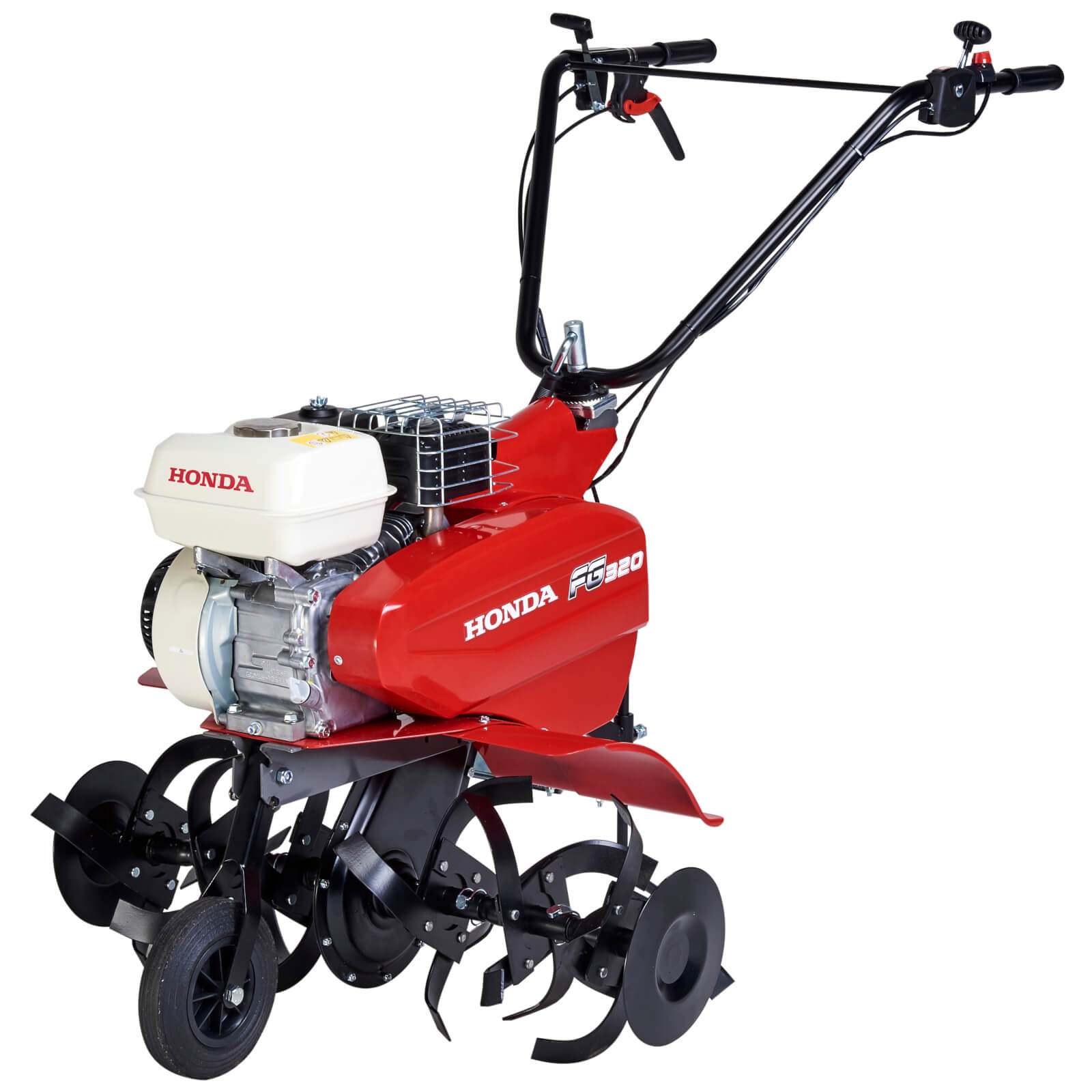

Honda FG320 Compact Tiller

Compact and powerful - Highly efficient, light but solid tillers for the more serious gardener. The quality of finish will be the first thing to strike you. But it really starts with the engine, a strong gearbox and robust clutch that directs the power deep into the soil.

Simply select your speed and away you go. All Honda Compact tillers are built with a transmission that provides the good, strong drive that’s independent of tine speed. This means you can regulate the forward motion with the cultivating performance to get a perfect result every time.

The quality of the finish which this range of tiller will give you will undoubtedly leave a lasting impression. They are both powerful and versatile as demonstrated by an impressive range of features. Its robust clutch and strong gearbox will channel the power where it is needed - deep into the ground. All compact tillers are manufactured with a strong drive which is independent of time speed, meaning you can regulate the forward motion.

Features:

Swing handle: With a reassuring safety release feature, the swing handle can be adjusted to swing left or right which lets you work without leaving your footprints behind you, and avoids compressing already cultivated soil and plants.

Gearbox: More gears means greater flexibility and power. The gearbox transfers the ideal power and torque to work the machine, letting you pick the perfect speed to match your pace.

Side Discs: Side discs protect growing plants from flying debris or impact from slasher tines by keeping the tiller perfectly aligned when furrowing.

Technical Specification:

• Max tilling width (mm) - 800
• Max tilling depth (mm) - 325
• Forward speeds - 1
• Reverse speeds - 1
• Forward tool rotation speed (rpm) - 108 rpm
• Reverse tool rotation speed (rpm) - 53rpm
• Dimension (L x W x H) (mm) - 1,500 x 837 x 980
• Dry weight (kg) 53
• Rotors/tines supplied - 6x4 Tooth digging tines
• Side discs - Yes
• Wheels - Front Transport
• Engine - 4-stroke OHV
• Engine model - GP160
• Engine displacement (cc) - 163
• Engine net power (kW/rpm) - 3.4/3,600
• Engine net torque (Nm/rpm) - 10.3 / 2,500
• Fuel tank capacity (Litres) - 2.4
• Engine oil capacity (Litres) - 0.58
• Starter - Recoil
• Drive clutch - Manual - belt tension
• Transmission - Constant mesh
• Final transmission - Chain
• Sound pressure at operators ears (dB(A)) - 84
• Guaranteed sound power level (dB(A)) - 96
• Vibration (m/sec²) - 7
• Swing handle - Yes
• Height adjustable handle - Yes
