STIHL TSA 230 Cordless Cut-Off Saw

STIHL TSA 230 Cordless Cut-Off Saw

£484.99
£484.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Options

8 in stock

Free standard delivery on this item

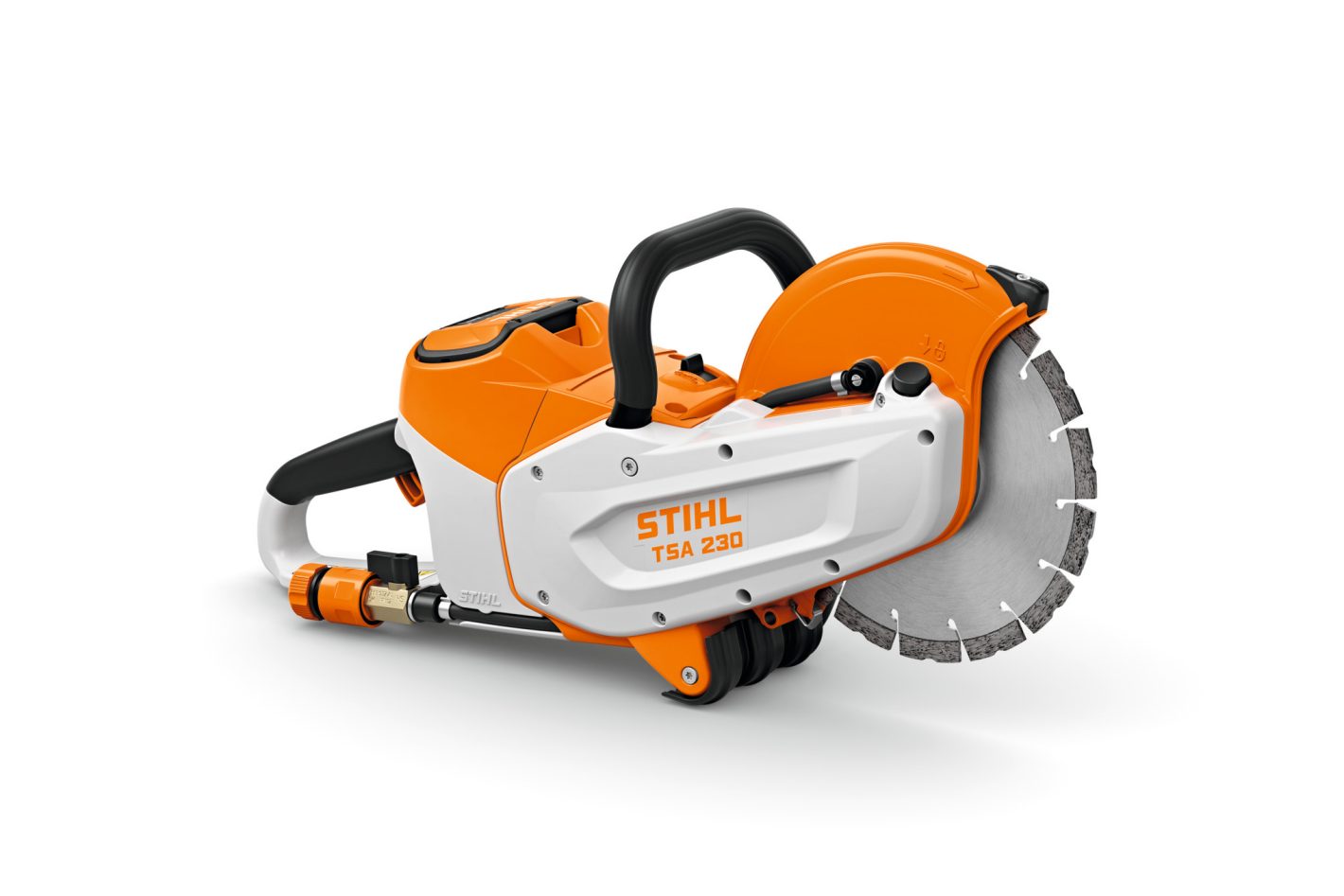

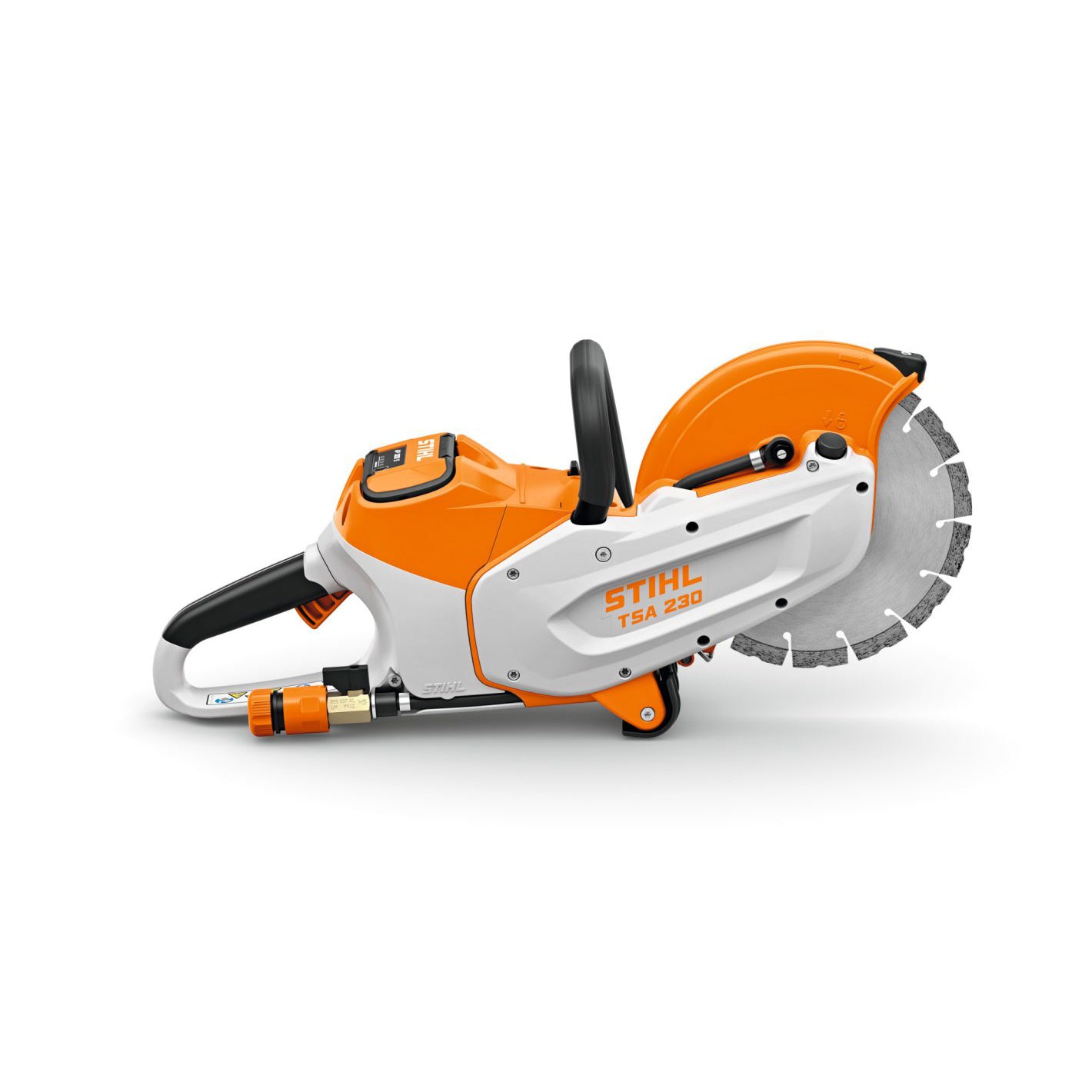

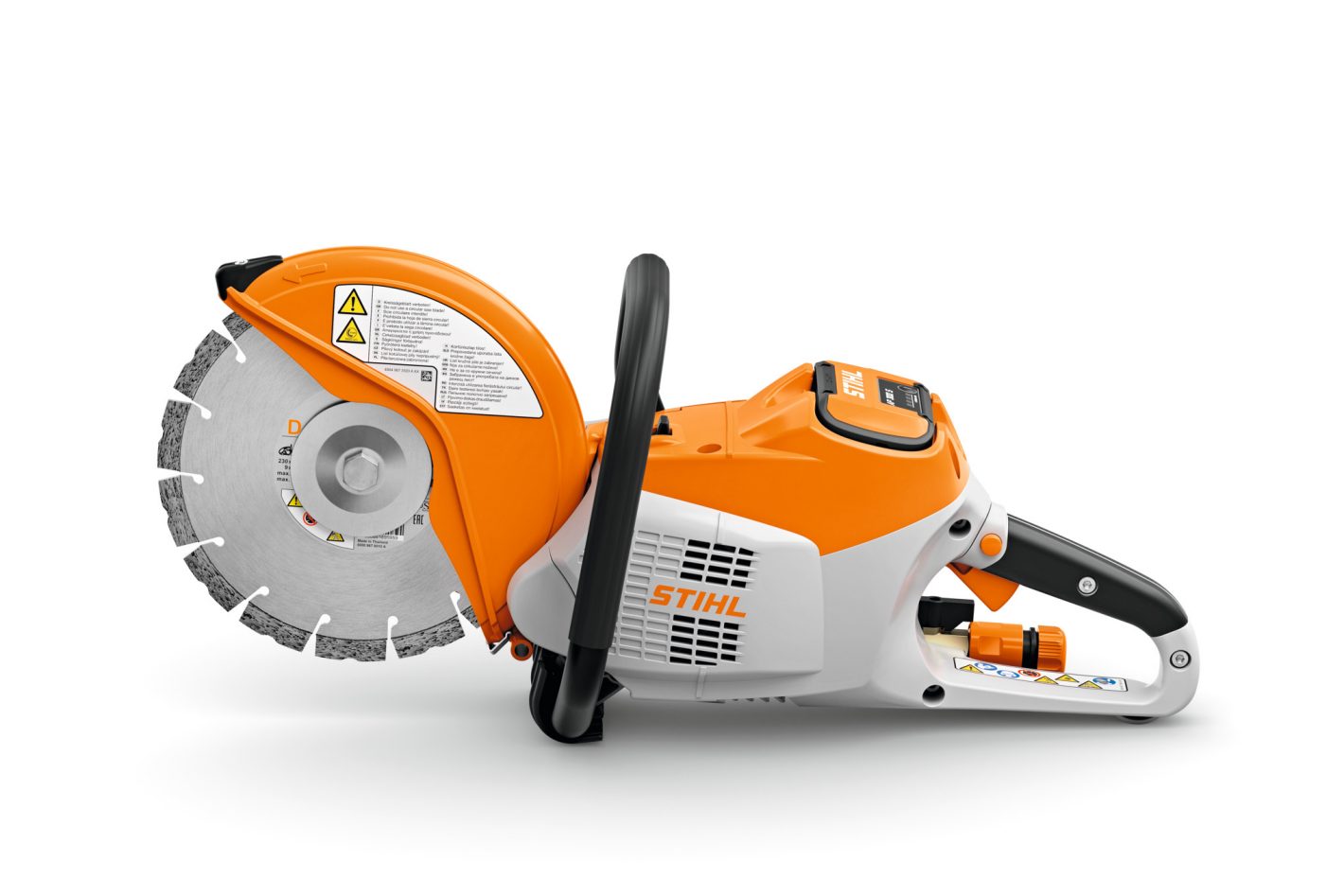

Cut-Off Saw suitable for wet cutting indoors & out. STIHL TSA 230 is a first of its kind, coming in cordless form the saw can cut inside and out and benefits from a 230mm cutting blade. Further features include a cutting depth of up to 70mm and a hose coupling to allow wet cutting when the blade may need cooling and cleaning.

NOTE: All options come with 1 x Composite Resin Abrasive Cutting Wheel (not the blade in the image)

OPTION
 DESCRIPTION
Power Unit No Battery or Charger. Suitable for users who already own battery and charger, or wish to buy separately.

STIHL Cut-Off Saw | TSA 230 Cordless

STIHL TSA 230 is the world's first when it comes to cordless cut-off saw and benefits from a 230mm cutting wheel with wet-cutting capabilities. The cut-off saw can be used indoors and outdoors, allowing for further improved versatility. Other features include a tool-free spindle lock and a cutting depth of up to 70mm. While in operation, the water connection provides improved cooling and cleaning for the cut-off saw and achieves this through the built-in ball valve and hose coupling. The saw also has a vacuum to keep excess dust at bay.

Recommended for use with the ALLPRO AP 200 P battery. Working time with the recommended battery is around 19 - 12 minutes.

Technical Specification:

General Details
Device weight without battery 3.9 kg 2)
Device length with cutting disc 55 cm
Power & Battery System
Battery system ALLPRO / AP
Recommended battery AP 200.0 P
Rated voltage 36 V
Max. voltage 40 V
Power 1.60 kW 1)
Battery Working Times
Min. battery working time AP 200 S 9 min 3)
Max. battery working time AP 200 S 14 min 3)
Min. battery working time AP 200.0 P 12 min 4)
Max. battery working time AP 200.0 P 19 min 4)
Min. battery working time AP 300 S 15 min 3)
Max. battery working time AP 300 S 24 min 3)
Min. battery working time AP 300.0 P 18 min 4)
Max. battery working time AP 300.0 P 29 min 4)
Max. battery working time AP 500 S 26 min 3)
Cutting & Performance
Cutting disc diameter 230 mm
Max. cutting depth 70 mm
Sound & Vibration
Sound pressure level 104 dB(A) 5)
Sound power level 115 dB(A) 6)
Vibration level left 4.3 m/s²
Vibration level right 2.4 m/s²
Notes
1) Mechanical power as a comparative value to a petrol appliance
2) without cutting disc
3) The indicated working times per battery charge are indicative and may vary depending on the working material and process. They do not represent runtime under full load.
4) The indicated working times per battery charge are indicative and may vary depending on the application and operating mode
5) Measurement according to ISO 19432
6) Measurement with cutting discs in the cut according to EN 60745-2-22

SKU: ZS-TSA230.1-PU

MPN: 4864 011 6620
