Clear Braid-Reinforced PVC Hose 32mm ID/40mm OD (12bar)
Clear Braid-Reinforced PVC Hose 32mm ID/40mm OD (12bar)
This item is available for Local Delivery Only
Regular price
£4.99
Regular price
Sale price
£4.99
Unit price
/
per
59 in stock

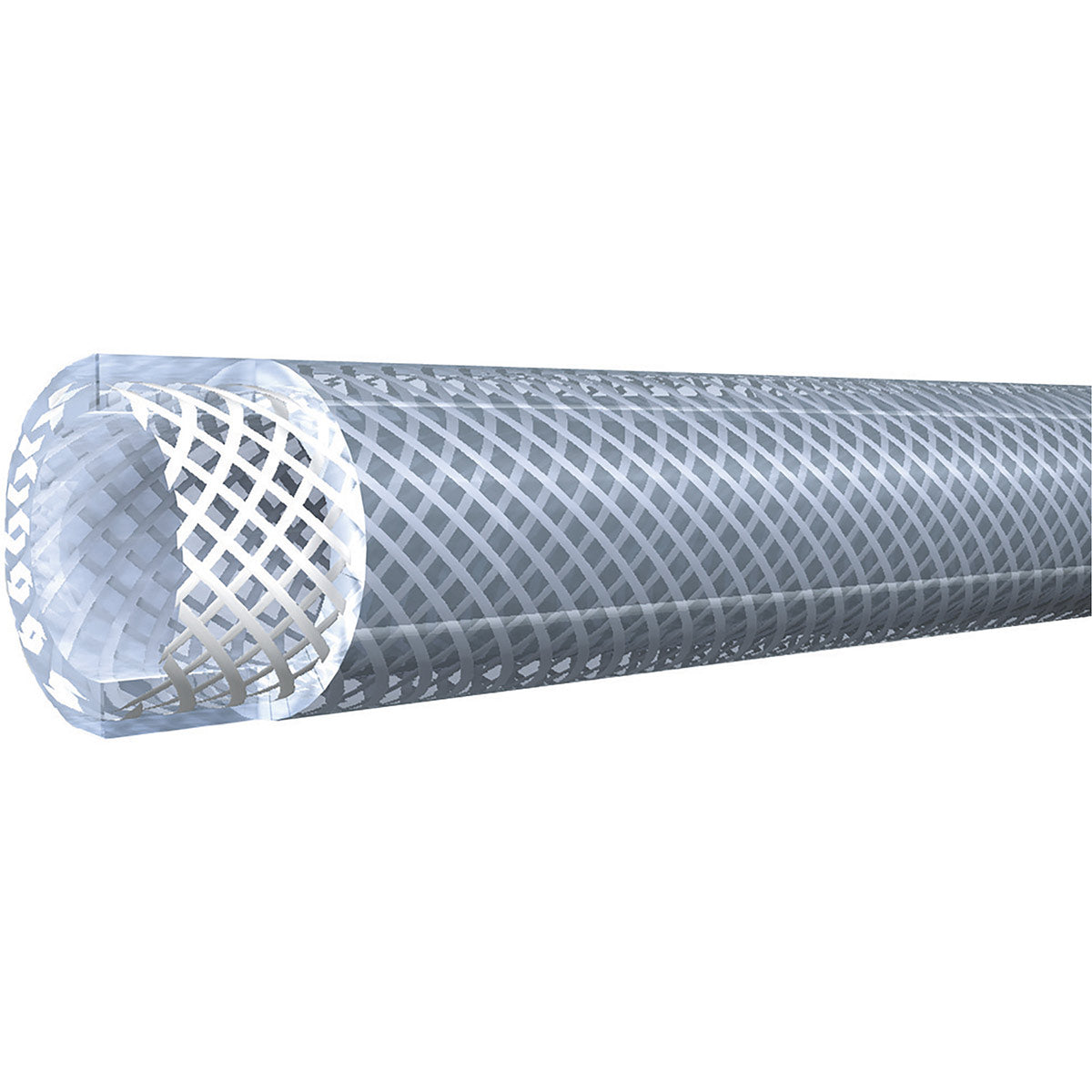

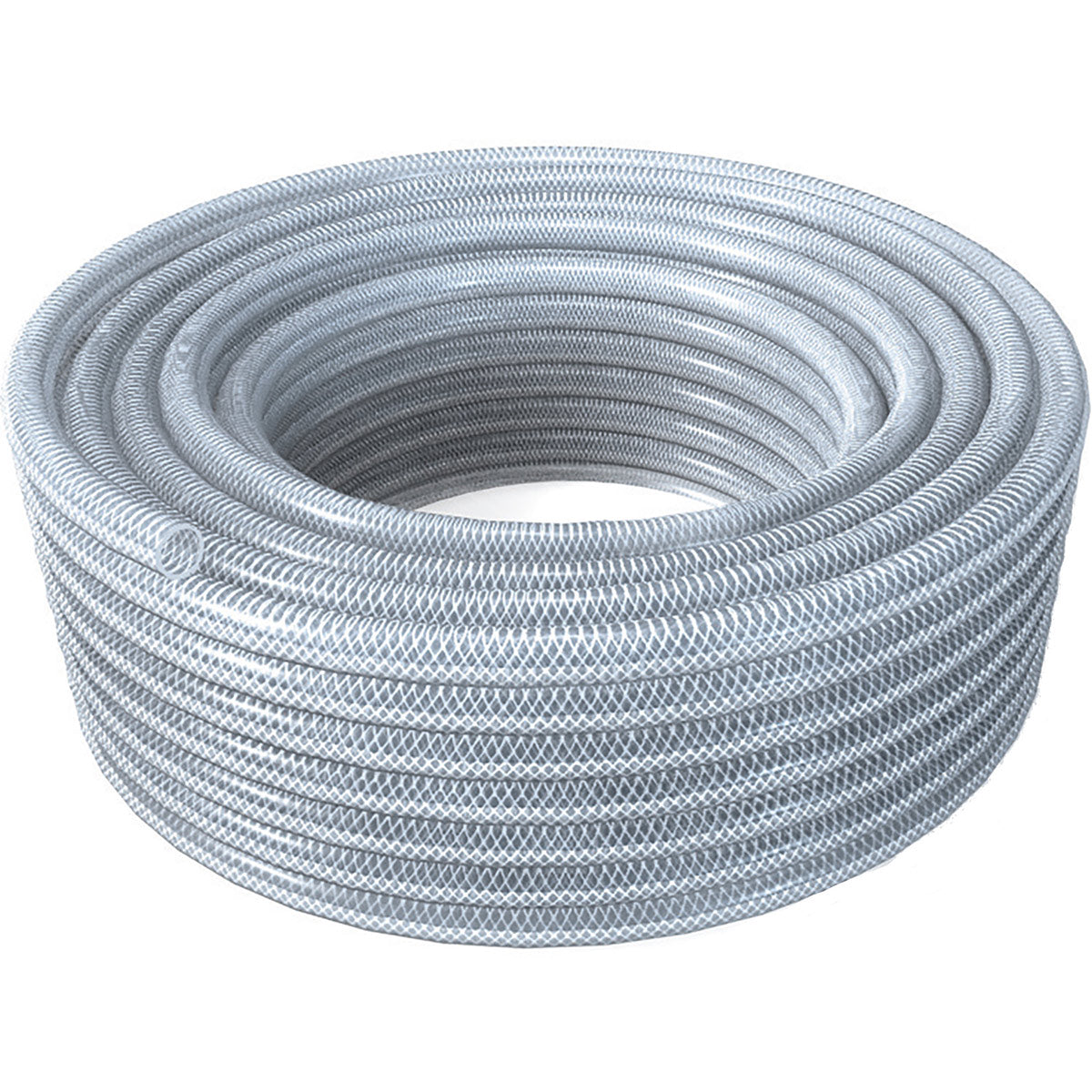

This 32mm ID/40mm OD (12bar) reinforced hose is manufactured in PVC which is free from DEHP and approved for food contact. It's ideal for conveying various liquids and gases under pressure.
Size: 32mm ID/40mm OD (12bar). Note: This product is sold by the metre, so order the quantity as if it were metres required.
Features:
Specification:
- • Multipurpose hose particularly suited to use with compressed air for pneumatic tools, as well as non-fatty foodstuffs and light alcohols
- • Manufactured using DEHP-free PVC making it non-toxic and suitable for food use
- • Simulants tested to A, B, C
- • Resistant to crushing, abrasion and UV
- • Smooth bore ensures optimum flow
- • Transparent wall allows easy identification of contents and enables users to locate blockages
- • Good resistance to a wide range of chemicals
- • Please note this hose is not suitable for use with solvents
- • Temperature range: -15°C to 60°C
- • Marking: ID ø x OD ø / ø ID x th. (EU) No. 10/2011 Sim. A, B, C [batch number]
Specification:
- EU Regulation 10/2011 - true
- Reach Approved - false
- WRAS Approved - false
- External Hose Colour - Clear
- External Hose Colour Options - Clear
- Internal Hose Colour - Clear
- Anti-Static Compound - false
- Anti-Static Wire - false
- Crush Resistant - false
- Delivery - true
- FDA approved - false
- Phthalate Free - true
- Smooth Bore - true
- Suction - false
- Vacuum (mmHG) - 0
- Outer Finish Type - Smooth
- Cover Material - PVC
- Lining Material - PVC
- Reinforcement Material - Textile
- Burst Pressure (BAR) - 40
- Burst Pressure (PSI) - 580
- Working Pressure (BAR) - 13
- Working Pressure (PSI) - 188
- Bend Radius (mm) - 50
- External Diameter (mm) - 11
- Internal Diameter (mm) - 6.3
- Internal Diameter (mm) Options - 6.3
- Max Temperature (ºC): 60
- Min Temperature (ºC): -15
- Weight (kg/m) - 0.077
SKU: AR-149787
MPN: 4101032
ID: AR-149787
