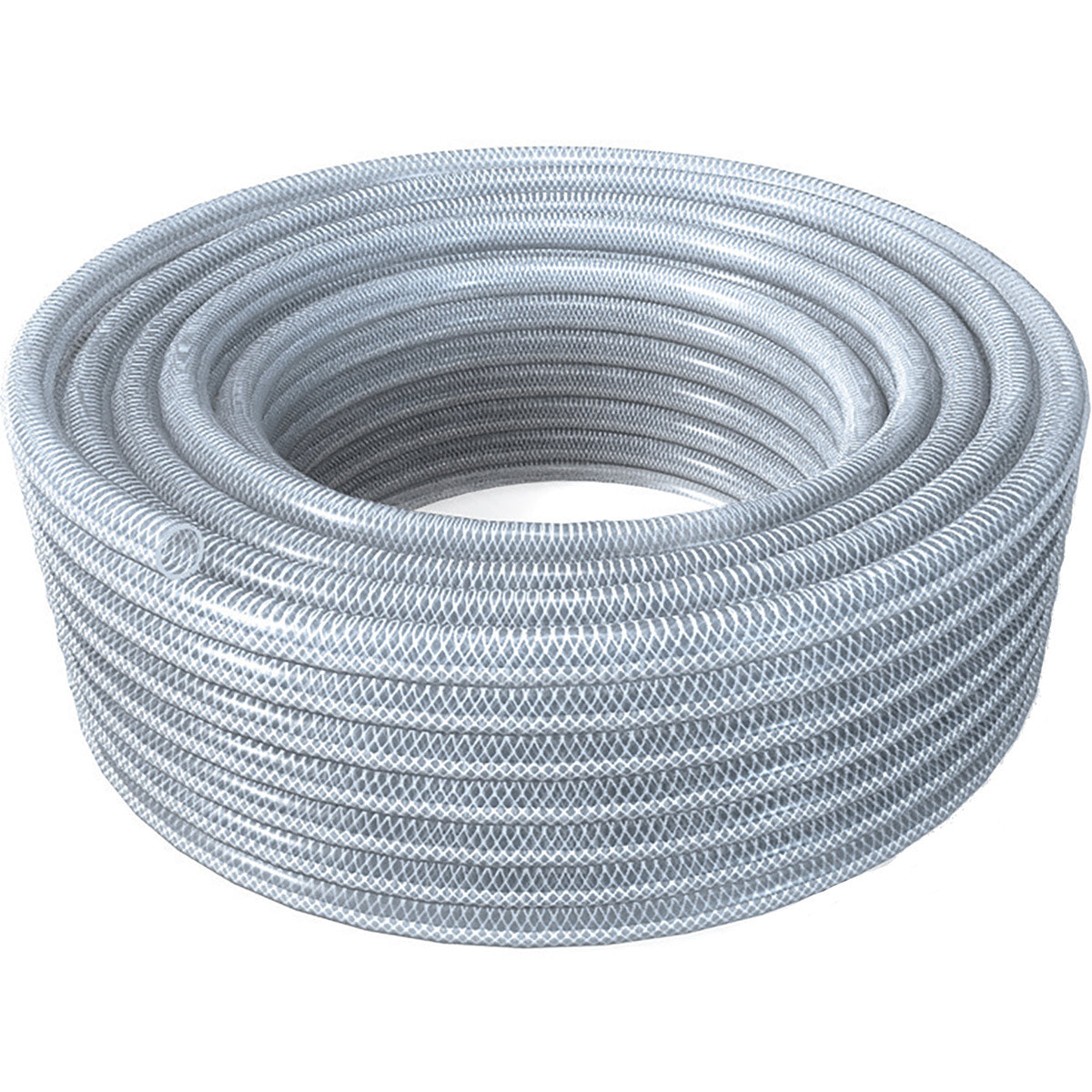

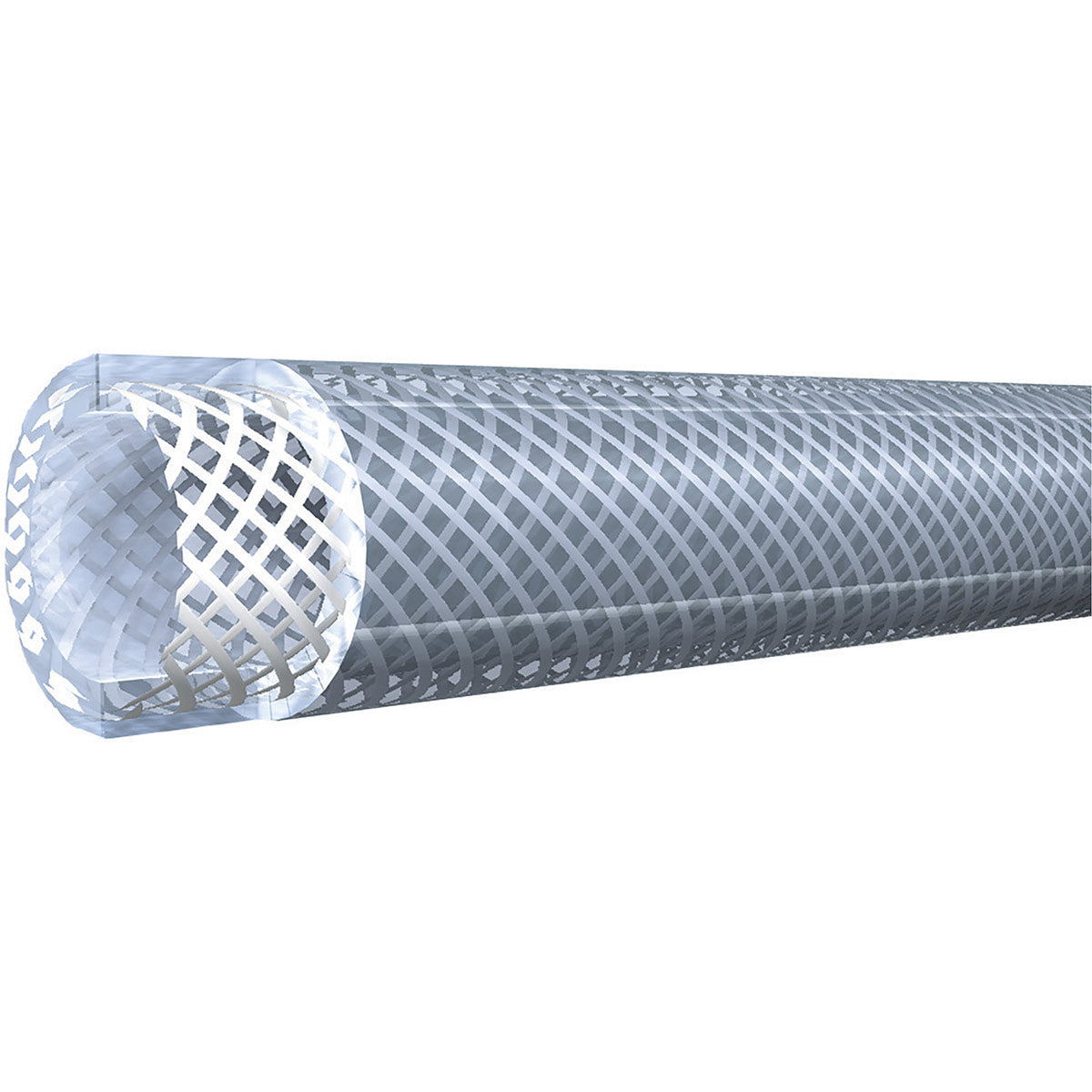

Clear Braid-Reinforced PVC Hose 25mm ID/31mm OD (13bar)

Clear Braid-Reinforced PVC Hose 25mm ID/31mm OD (13bar)

This item is available for Local Delivery Only
Regular price £3.19
Regular price Sale price £3.19
Sale Sold out
Tax included.
Options

125 in stock

This 25mm ID/31mm OD (13bar) reinforced hose is manufactured in PVC which is free from DEHP and approved for food contact. It's ideal for conveying various liquids and gases under pressure.

Size: 25mm ID/31mm OD (13bar). Note: This product is sold by the metre, so order the quantity as if it were metres required.

Features:

  • • Multipurpose hose particularly suited to use with compressed air for pneumatic tools, as well as non-fatty foodstuffs and light alcohols
  • • Manufactured using DEHP-free PVC making it non-toxic and suitable for food use
  • • Simulants tested to A, B, C
  • • Resistant to crushing, abrasion and UV
  • • Smooth bore ensures optimum flow
  • • Transparent wall allows easy identification of contents and enables users to locate blockages
  • • Good resistance to a wide range of chemicals
  • • Please note this hose is not suitable for use with solvents
  • • Temperature range: -15°C to 60°C
  • • Marking: ID ø x OD ø / ø ID x th. (EU) No. 10/2011 Sim. A, B, C [batch number]


Specification:

  • EU Regulation 10/2011 - true
  • Reach Approved - false
  • WRAS Approved - false
  • External Hose Colour - Clear
  • External Hose Colour Options - Clear
  • Internal Hose Colour - Clear
  • Anti-Static Compound - false
  • Anti-Static Wire - false
  • Crush Resistant - false
  • Delivery - true
  • FDA approved - false
  • Phthalate Free - true
  • Smooth Bore - true
  • Suction - false
  • Vacuum (mmHG) - 0
  • Outer Finish Type - Smooth
  • Cover Material - PVC
  • Lining Material - PVC
  • Reinforcement Material - Textile
  • Burst Pressure (BAR) - 40
  • Burst Pressure (PSI) - 580
  • Working Pressure (BAR) - 13
  • Working Pressure (PSI) - 188
  • Bend Radius (mm) - 50
  • External Diameter (mm) - 11
  • Internal Diameter (mm) - 6.3
  • Internal Diameter (mm) Options - 6.3
  • Max Temperature (ºC): 60
  • Min Temperature (ºC): -15
  • Weight (kg/m) - 0.077

SKU: AR-149737

MPN: 4101025

ID: AR-149737
