Hyundai 230v 18kW/22.5kVA 1500rpm Single Phase Diesel Generator

Features:

• Compact Diesel Generator - This impressive and powerful diesel generator is considerably smaller than other water-cooled 1500rpm 18kW sets, perfect if you're short on space but still want the benefits of prime power or the peace of mind of backup power. Although compact, the DHY18COM-1 will give you a huge 18kW of backup power and 16kW of prime power whilst taking up minimal space in your home or business premises.
• 1500rpm Generator - 1500rpm diesel generators are ideal for static installation for daily prime power, as well as for regular standby generator/backup generator use. 1500rpm generators have slower-running, water-cooled engines which are less stressed than 3000rpm generators, which makes them the best option if you’re going to use your generator as your main power source and will also prolong its lifespan.
• ATS Compatible - For ultimate convenience, the DHY18COM-1 can be paired with an ATS (Automatic Transfer Switch) system which will automatically turn on the generator when a loss of power to the property is detected. When power returns from the mains, the ATS module will then safely turn your generator off. This is ideal for those who need to guarantee constant power - for example, if you run servers or have refrigeration units.
• Quality DSE Control Panel - The DHY18COM-1 is fitted with a high-quality Deep Sea Electronics DSE6120 MKIII control panel that has a large LCD screen to display generator information in a clear and concise format. The control panel is packed with safety features to protect your slow-running diesel genset and is compatible with ATS / auto-start / MTS / manual changeover switches.


It also has remote start capability, an easily accessible emergency stop button, a voltage and frequency regulator, as well as alerts for:

• Low oil pressure - which can lead to a lack of lubrication and engine damage
• High water temperature - which could be a sign that the radiator airflow is blocked or the water level is low
• High or low voltage - which could signify a problem with the alternator, AVR, or degrading electrical connections and lead to your equipment being damaged
• High or low frequency or engine over/under speed - which could signify an issue with the fuel regulation/governor and leads to unstable frequency output
• Hyundai Diesel Generator - Diesel generators are ideal for backup applications as sometimes petrol can go stale and prevent a generator from working. Our diesel generators also run happily on budget-friendly red diesel, without voiding the warranty and making it cost-effective to refuel.
• Generator kVA Ratings - All of our single-phase generators have a kVA rating that is higher than the kW. This is because we have assumed the appliances you are going to power have a load factor/power factor of 0.8 - therefore the 'assumed' kVA rating of the load would be higher. This is industry standard and it is usually best to scope the right unit based on the kW.
• Delivery - Kerbside delivery is included in the price. However, please note that a forklift will be required for unloading.
• Peace Of Mind - This 22kVA diesel generator comes with a 2-year Hyundai warranty with full UK parts and service backup for added peace of mind.



Technical Specification:

• Model - DHY18COM-1
• Rated/Prime kVA* - 22.5
• Rated/Prime kW - 18
• Max/Standby kVA* - 20
• Max/Standby kW - 16
• Phase - Single
• Voltage - 230
• Connection Method(s) - Busbar
• Rated Speed (RPM) - 1500
• Frequency (Hz) - 50
• Max/Continuous Current (Amps) - 69.6
• Power Factor (Cosφ) - 1
• Fuel/Power Source - Diesel
• Fuel Tank (Litres) - 40
• Runtime (Hours) @ 100% Load - 10
• Noise Level @ 1m 75% load (dB) - 79.5
• Noise Level @ 7m 75% load (dB) - 70
• Hyundai Diesel Engine Model - 4DW91-29D
• Power Output (kw) - 16
• Displacement (CC) - 1809
• No. of Cylinders - 4
• Displacement (Litres) - 1.809
• Recommended Oil Type - SAE 15W40
• Oil Capacity (Litres) - 8
• Oil Filter Part No. - 1012015AB01-0000
• Aspiration - Natural
• Fuel Regulation/Governor System - Electronic
• Fuel Consumption (100% Load) [Litres] - 4.94
• Fuel Filter Part No. - 1117010-B01-0000B
• Cooling - Water
• Alternator Model - GP184E
• Breakers Delixi - 125A
• Alternator Type - Brushless
• Voltage Regulation - AVR
• Air Filter Part No. - DHP-0029-04
• Net Weight (kg) - 520
• Gross Weight (kg) - 597
• Dimensions L x W x H (mm) - 1600 x 740 x 825
• Battery (Ah) - 1x12V-60Ah
• ATS / MTS Compatible - Yes

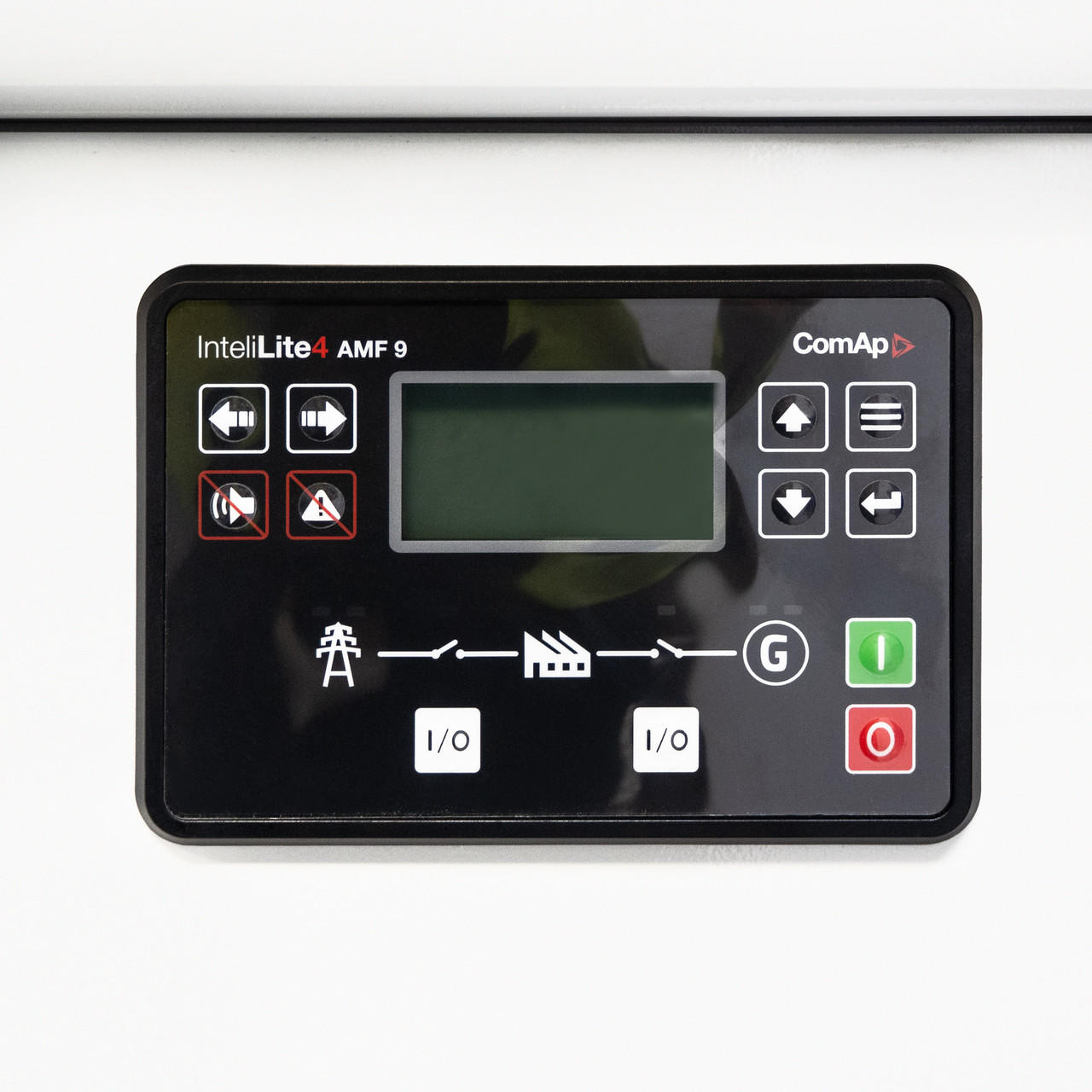

• Control Panel - ComAp AMF9
• Model EAN - 5059608212549
• Warranty - 1 Year / 1000 Hours (can be extended to 2 years, subject to standby use of 500 hours per year. Terms apply*)
• Product Type - Diesel Generator
• Assembly Required? - Yes - some assembly may be required
